Installing The Charcoal Filter; Mount The Oven - GE Profile Advantium SCA2001KSS Installation Instructions Manual

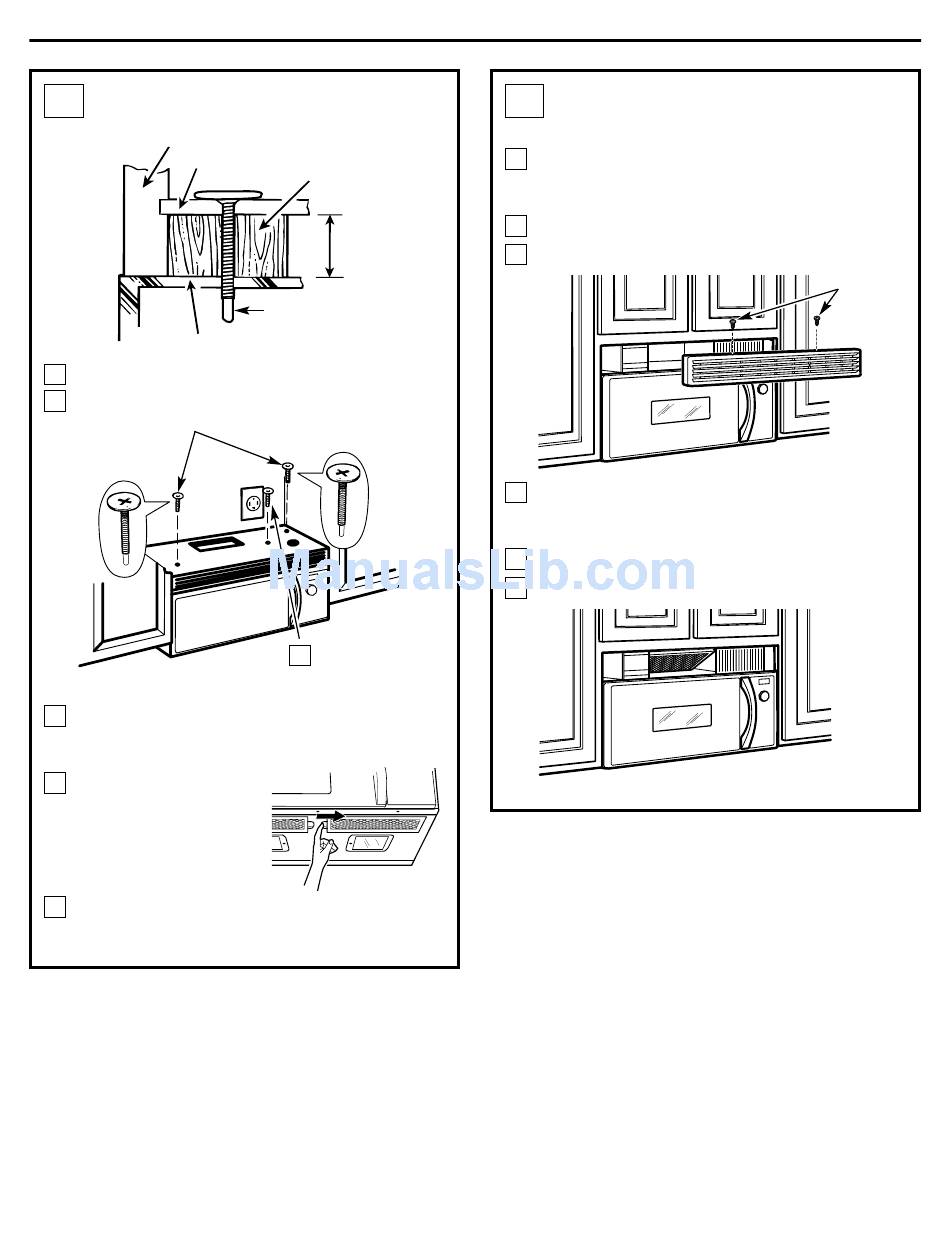

MOUNT THE OVEN

C4
Cabinet Front
Cabinet Bottom Shelf
Oven Top
Attach the oven to the top cabinet.
4
Insert 2 self-aligning screws through outer top cabinet
5
holes. Turn two full turns on each screw.
Tighten the outer 2 screws to the top of the oven.
7
(While tightening screws, hold the oven in place
against the wall and the top cabinet.)
Install grease filters.
8
See the Owner's Manual
packed with the oven.
Remove the tape from the
cooktop lamp covers on
the bottom of the oven.
Secure the power cord to the cabinet wall, as desired
9
to keep excess length out of the way using the power
cord strap and the black metal screw.
Installation Instructions
(cont.)
Filler Block
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
Tighten center
6
screw completely.
INSTALLING THE CHARCOAL
C5
FILTER
Remove 2 screws on top of grille using a Phillips
1
screwdriver. You may need to open the cabinet doors
to remove the screws.
Open the door.
2
Remove the grille.
3
Install the charcoal filter. When properly installed,
4
the wire mesh of the filter should be visible from
the front.
Replace the grille and the 2 screws.
5
Close the door.
6
Insert mesh-side down
22
Screws
