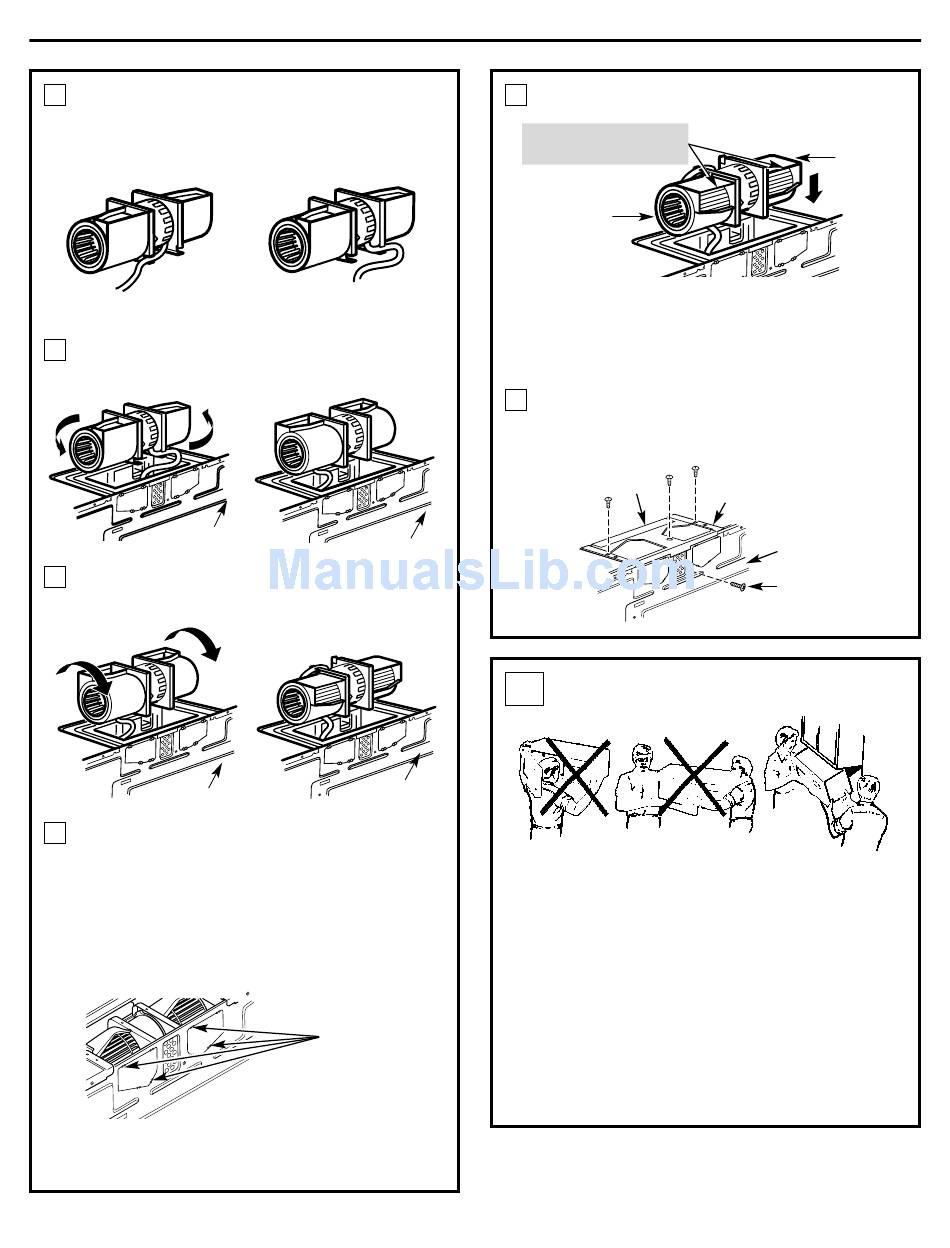

Gently remove the wires from the grooves. Reroute
3
the wires through grooves on other side of the
blower unit.
Before Rerouting
Wires Routed Through Right Side
Rotate blower unit counterclockwise 180°.
4
Before Rotation
Back of Oven
Roll the blower unit 90° so that fan blade openings
5
are facing out the back of the oven.
Before Rolling
Back of Oven
Locate the 2 "knockout" plates, on the rear oven
6
panel, near the top of the oven.
Using tin snips, carefully cut the web area from the
2 holes side-by-side (that secure the knockouts to the
oven). Cut all 4 webs on both rear knockouts; this will
allow the ventilation fan airflow to exhaust out the
rear of the oven.
Oven Rear Panel
CAUTION:
Be sure to trim the sharp edges
from the openings after removing the knockout plates.
Installation Instructions
After Rerouting
Wires Routed Through Left Side
After Rotation
Back of Oven
After Rolling
Back of Oven
Snip all 4 webs
on each knockout
panel and remove
the metal knockouts
for rear airflow.
Place the blower unit back into the opening.
7
AFTER: Fan Blade
Openings Facing Back
End B
CAUTION:
unit wiring. Make sure the wires are not pinched.
NOTE: The blower unit exhaust openings should match
exhaust openings on rear of oven.
Secure the blower unit to the oven with the screw
8
removed earlier. Replace the blower plate in the same
position as before with the screws.
Retaining
Flange
MOUNT THE OVEN
B5
FOR EASIER INSTALLATION AND PERSONAL SAFETY,
WE RECOMMEND THAT TWO PEOPLE INSTALL
THIS OVEN.
IMPORTANT: Do not grip or use handle during
installation.
NOTE: If your cabinet is metal, use the nylon grommet
around the power cord hole to prevent cutting of the cord.
NOTE: We recommend using filler blocks if the cabinet
front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used, case damage
may occur from over tightening screws.
17
End A
Do not pull or stretch the blower
Blower Plate
Back of Oven
Blower Motor
Screw
