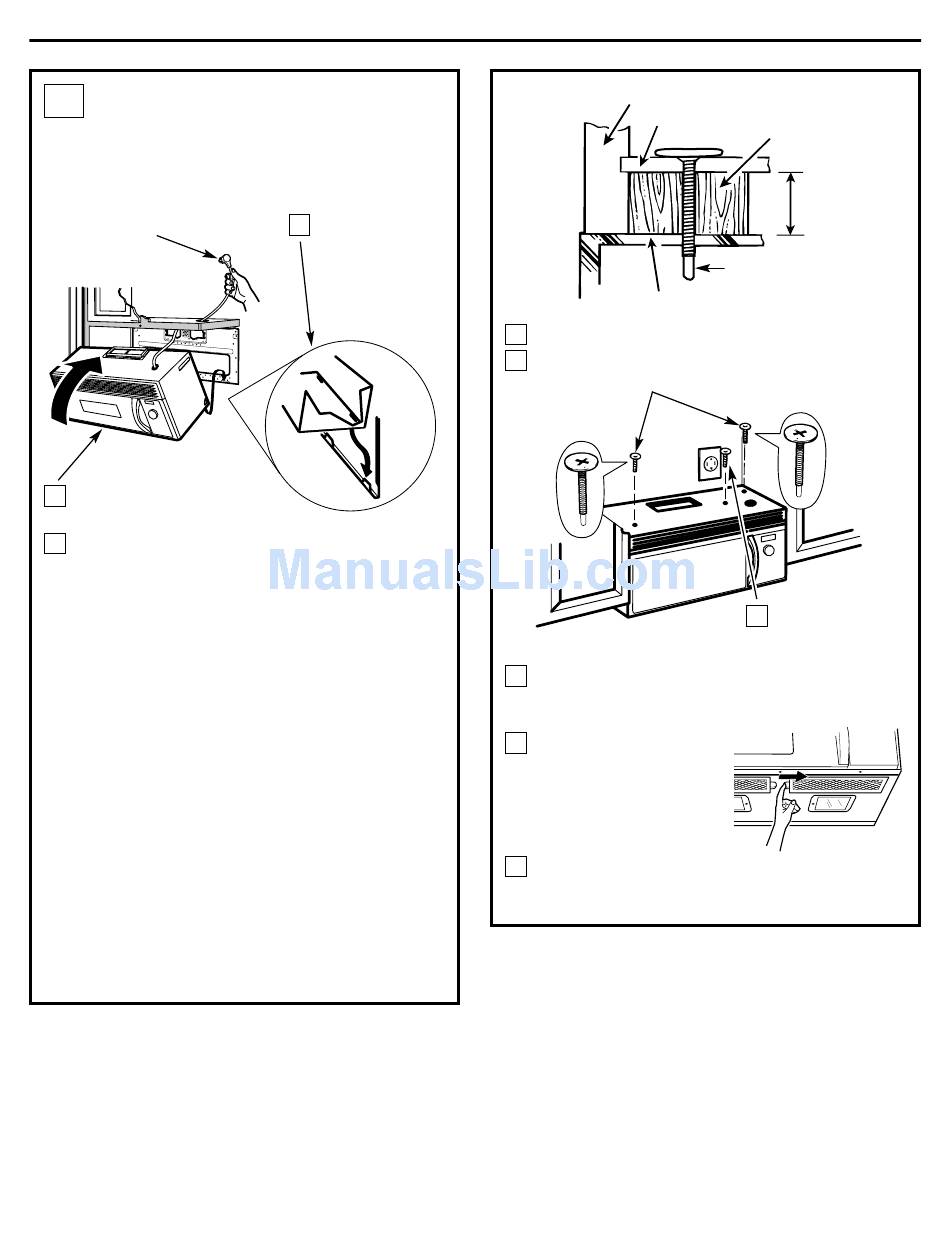

MOUNT THE OVEN

B5
NOTE: When mounting the oven,
thread power cord through hole
in bottom of top cabinet. Keep it
tight throughout Steps 1–3.
Do not pinch cord or lift oven
by pulling cord.
Rotate front of oven up
2
against cabinet bottom.
Insert a self-aligning screw through top center cabinet
3
hole. Temporarily secure the oven by turning the
screw at least two full turns after the threads have
engaged. (It will be completely tightened later.)
Be sure to keep power cord tight. Be careful not to
pinch the cord, especially when mounting flush to
bottom of cabinet.
If your cabinet front hangs more than 2
cabinet bottom, you may need to use longer screws than
the ones provided with this product. The screws provided
with this product (hardware item 3) are self-aligning,
large-head machine screws 1/4" diameter, 3
with SAE 28 threads per inch. It is important that you
use replacement screws just long enough to attach the
product to the cabinet. The length can be determined
by measuring the height of the overhang from the top
of the cabinet floor to the bottom of the overhang and
adding 1" to that length. This will be the length of the
1/4" SAE 28 threads per inch screws you need.
You will also need to use washers 3/4" diameter to fit the
screws you purchase. This will prevent the screw heads
from pulling through the bottom of the cabinet when
tightening during installation.
Installation Instructions
(cont.)
Lift oven, tilt it
1
forward, and
hook slots at back
bottom edge onto
2 lower tabs of
mounting plate.
" below the
3 ⁄
4
" long,
1 ⁄
4
18
Cabinet Front
Cabinet Bottom Shelf
Oven Top
Attach the oven to the top cabinet.
4
Insert 2 self-aligning screws through outer top cabinet
5
holes. Turn two full turns on each screw.
Tighten the outer 2 screws to the top of the oven.
7
(While tightening screws, hold the oven in place
against the wall and the top cabinet.)
Install grease filters.
8
See the Owner's Manual
packed with the oven.
Remove the tape from the
cooktop lamp covers on
the bottom of the oven.
Secure the power cord to the cabinet wall, as desired
9
to keep excess length out of the way using the power
cord strap and the black metal screw.
Filler Block
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
Tighten center
6
screw completely.
