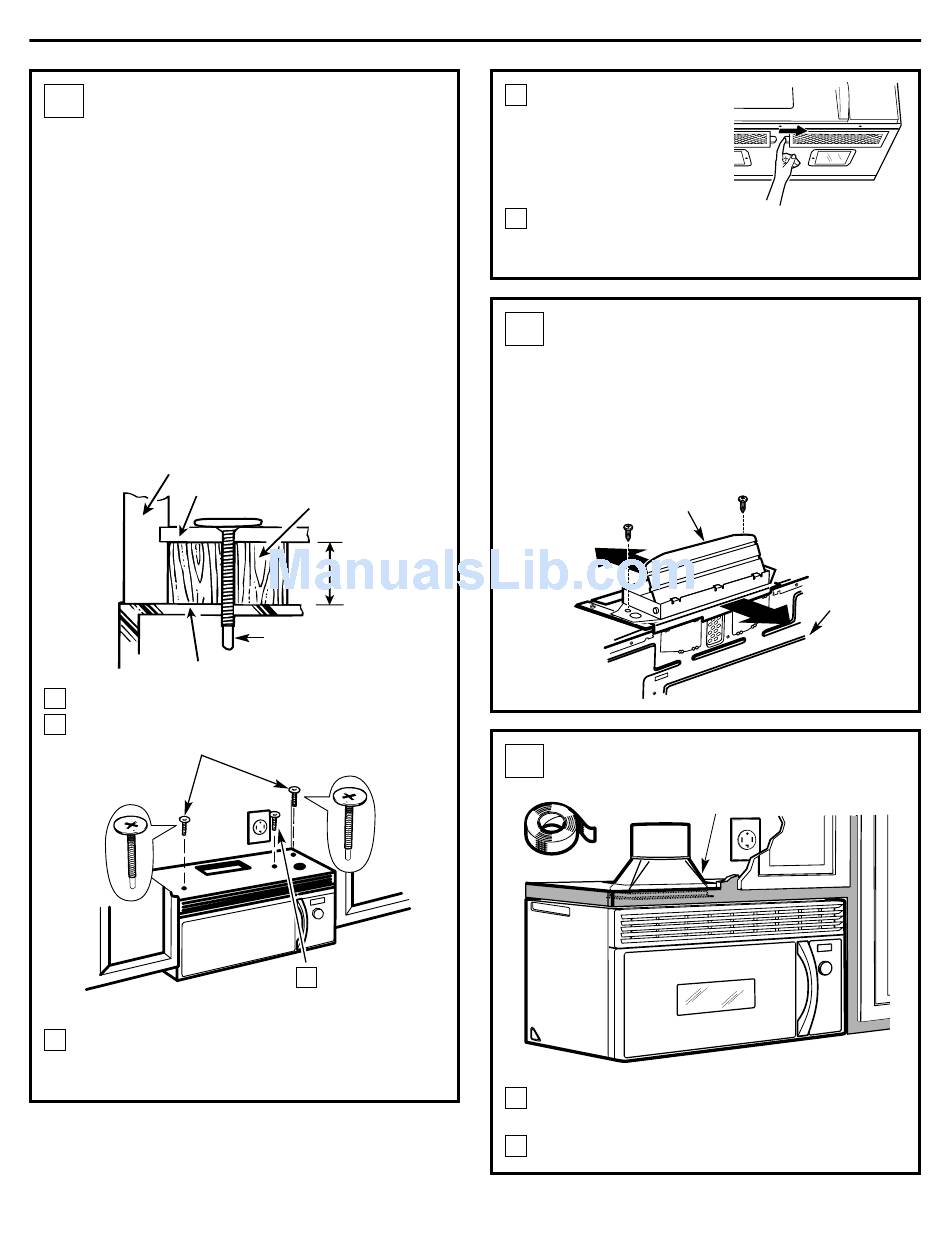

MOUNT THE OVEN

A4
If your cabinet front hangs more than 2
cabinet bottom, you may need to use longer screws than
the ones provided with this product. The screws provided
with this product (hardware item 3) are self-aligning,
large-head machine screws 1/4" diameter, 3
with SAE 28 threads per inch. It is important that you
use replacement screws just long enough to attach the
product to the cabinet. The length can be determined
by measuring the height of the overhang from the top
of the cabinet floor to the bottom of the overhang and
adding 1" to that length. This will be the length of the
1/4" SAE 28 threads per inch screws you need.
You will also need to use washers 3/4" diameter to fit the
screws you purchase. This will prevent the screw heads
from pulling through the bottom of the cabinet when
tightening during installation.
Cabinet Front
Cabinet Bottom Shelf
Oven Top
Attach the oven to the top cabinet.
4
Insert 2 self-aligning screws through outer top cabinet
5
holes. Turn two full turns on each screw.
Tighten the outer 2 screws to the top of the oven.
7
(While tightening screws, hold the oven in place
against the wall and the top cabinet.)
Installation Instructions
(cont.)
" below the
3 ⁄
4
" long,
1 ⁄
4
Filler Block
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
Tighten center
6
screw completely.
Install grease filters.
8
See the Owner's Manual
packed with the oven.
Remove the tape from the
cooktop lamp covers on
the bottom of the oven.
Secure the power cord to the cabinet wall, as desired
9
to keep excess length out of the way using the power
cord strap and the black metal screw.
ADJUST THE EXHAUST
A5
ADAPTOR
Open the top cabinet and adjust the exhaust adaptor to
connect to the house duct.
For top exhaust on the flat-bottomed cabinets, open the
top cabinet and attach the exhaust adaptor to the oven
through the cabinet bottom with the 2 bronze metal
screws provided.

CONNECTING DUCTWORK

A6
Extend the house duct down to connect to the
1
exhaust adaptor.
Seal exhaust duct joints using duct tape.
2
14
Damper
Back of Oven
House Duct
