ALIGNING THE WALL PLATE

D
Hole A
Hole C
CAUTION:
Wear gloves to avoid cutting fingers
on sharp edges.
Draw a vertical line on the wall at the center of the
1
30" wide space.

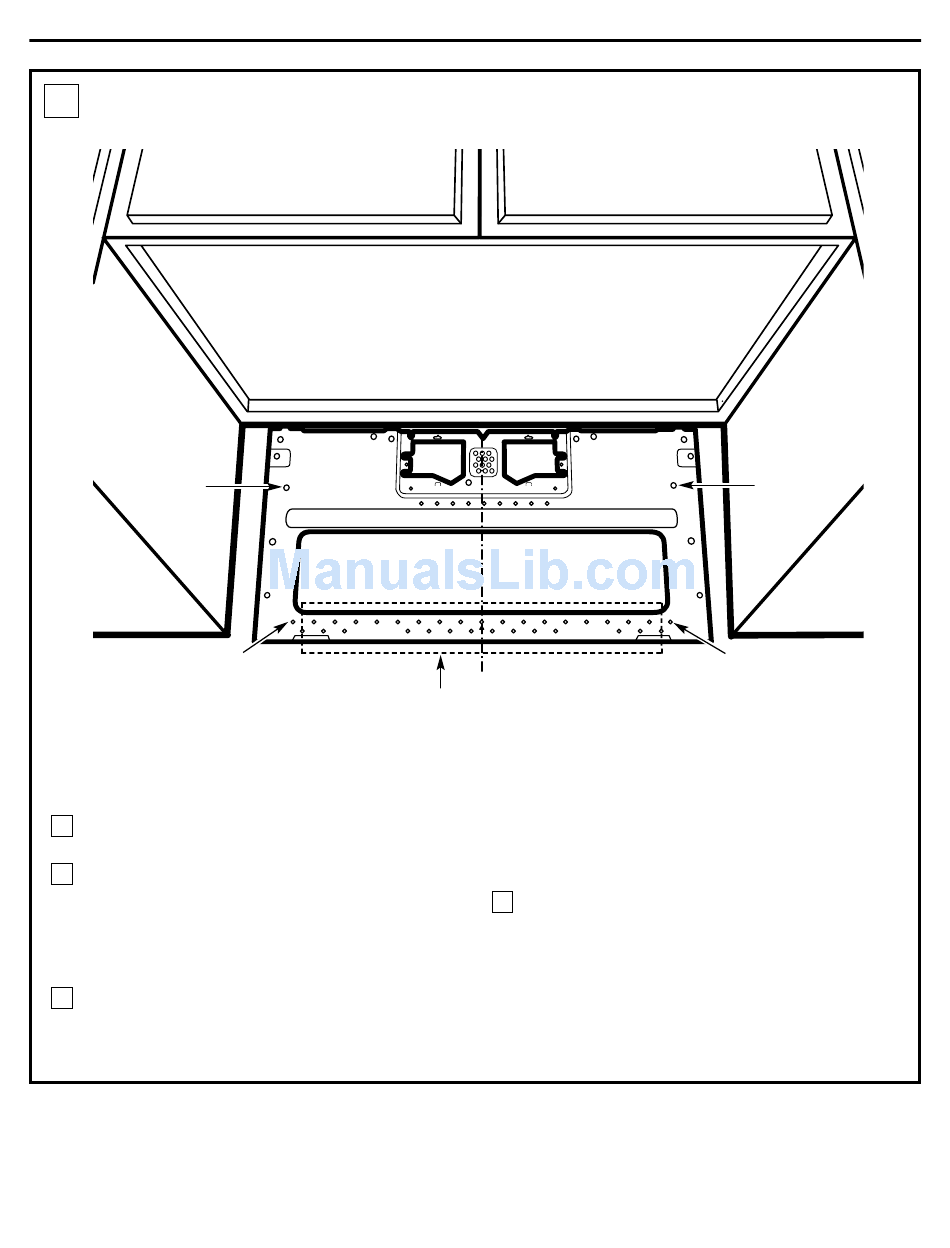

Use the mounting plate as the template for the rear
2
wall. Place the mounting plate on the wall, making sure
that the tabs are touching the bottom of the cabinet or
the level line drawn in Step C for cabinets with front
overhang. Line up the notch and center line on the
mounting plate to the center line on the wall.
While holding the mounting plate with one hand,
3
draw circles on the wall at holes A, B, C and D (see
illustration above/actual plate marked with arrows).
Four holes must be used for mounting.
Installation Instructions
Area E
10
Draw a Vertical Line
on Wall from Center
of Top Cabinet
NOTE: Holes C and D are inside area E. If neither
C nor D is in a stud, find a stud somewhere in area E
and draw a fifth circle to line up with the stud. It is
important to use at least one wood screw mounted
firmly in a stud to support the weight of the oven.
Set the mounting plate aside.
Drill holes on the circles. If there is a stud, drill a
4
hole for wood screws. For holes that don't line up with
" hole for toggle bolts.
a stud, drill a 5 ⁄
8
NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.
Hole B
Hole D
"
3 ⁄
1 6
