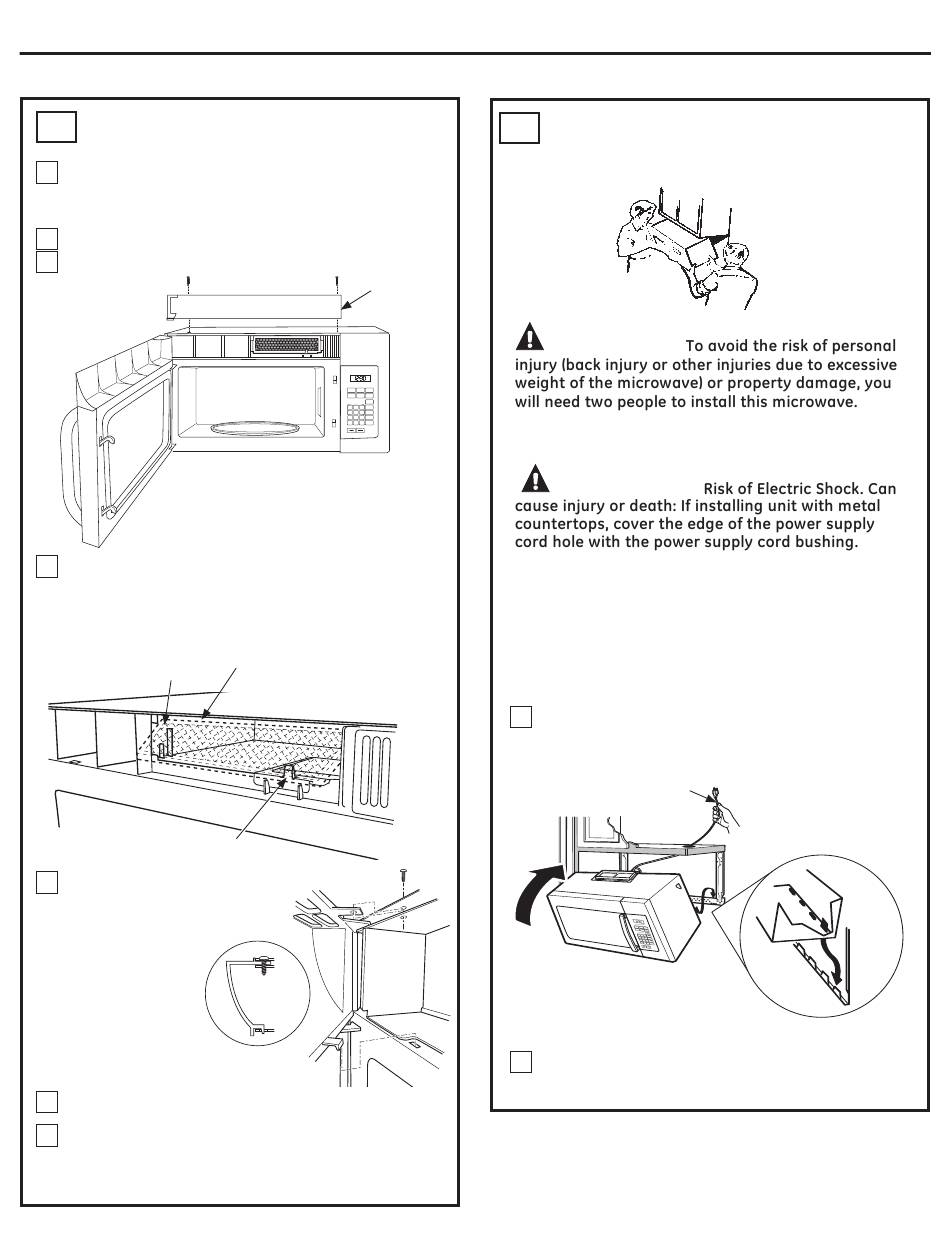

INSTALLING THE CHARCOAL FILTER

1 Remove 2 screws on top of microwave oven, just
above the grille panel, using a Phillips screwdriver.
If two screws are not accessible, see section A6.
Open the door.
2
Remove the grille.
3
Insert the top of the filter up and into the grooves on
4
both sides of the inside of the top opening. Once you
have cleared the bottom tab, push the bottom of the
filter in until it rests in place behind the tab.
Grooves in
Microwave for
Filter on Each Side
Bottom Tab
Replace the grille
5
by inserting the top
grill flange into the
slots in the case as
shown.
6
Replace the 2 top screws.
Close the door.
7
Installation Instructions
Grille
Convenience Cooking
Popcorn Beverage Potato
Defrost
Reheat Cook
Weight/Time Time
Timer
Express Cook
On/Off
Add
1 2 3
30 Sec.
4 5 6 Turntable
Surface
7 8 9
Light
Power 0 Set
Level Clock Vent
Cancel Start
Off Pause
Filter (dashed to show
details of groves)
Grille
Grille

MOUNT THE MICROWAVE OVEN

A4
CAUTION:
IMPORTANT: Do not grip or use handle during
installation.
WARNING:
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
NOTE: When mounting the microwave, thread power
cord through hole in bottom of top cabinet. Keep it
tight throughout Steps 1–3. Do not pinch cord or lift
microwave oven by pulling cord.
1 Lift microwave, tilt it forward, and hook slots at
back bottom edge onto four lower tabs of mounting
plate.
Power Cord
Rotate front of microwave oven up against cabinet
2
bottom.
14
