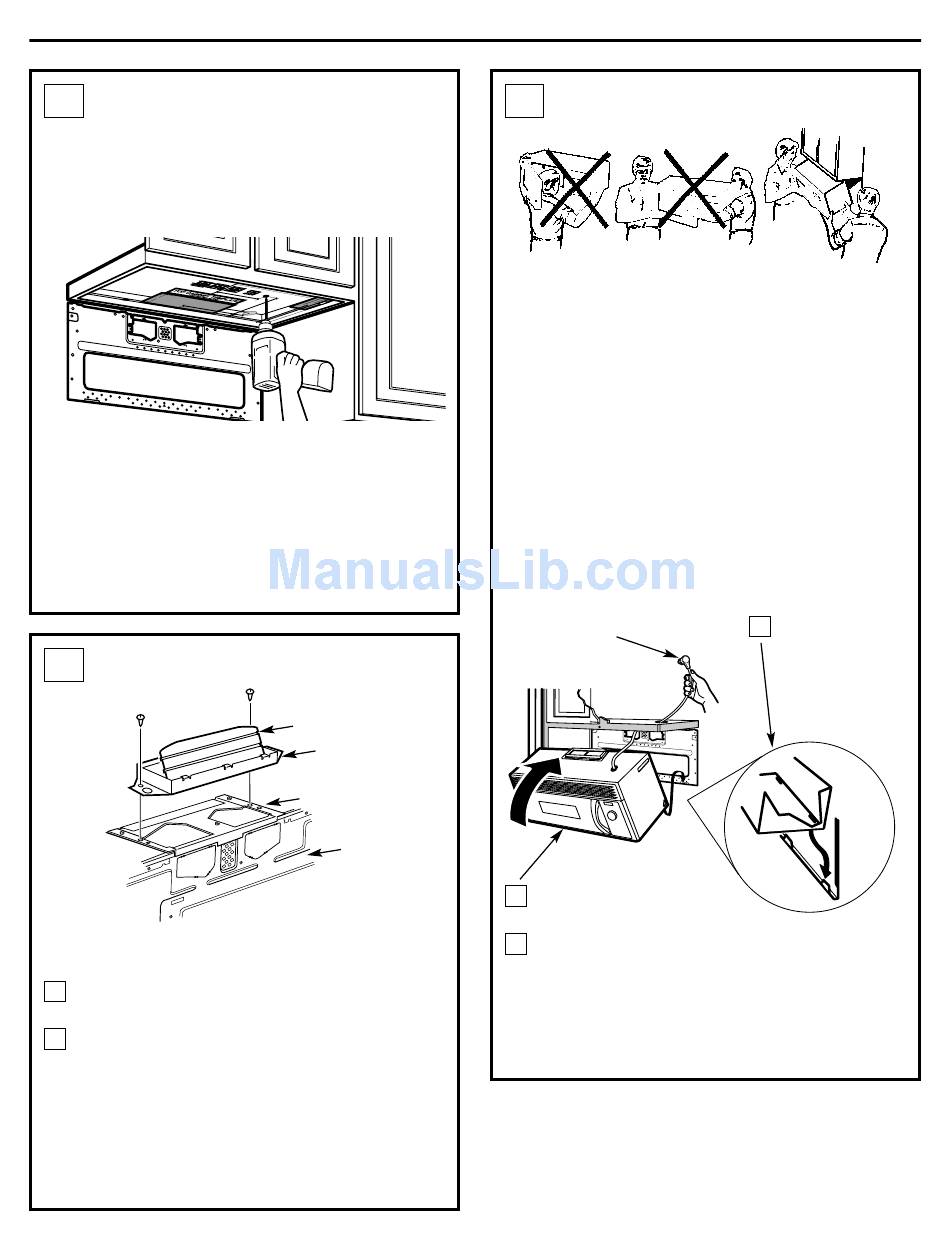

USE TOP CABINET TEMPLATE
A2
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a hole
large enough for the power cord to fit through, and a
cutout large enough for the exhaust adaptor.
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
CAUTION:
Wear safety goggles when drilling
holes in the cabinet bottom.
ASSEMBLE AND INSTALL
A3
ADAPTOR
If you have a flat bottom cabinet, the exhaust adaptor will
be installed later through the cutout in the cabinet bottom.
Place the oven in its upright position, with the top of
1
the unit facing up.
Attach the exhaust adaptor, hinge side toward the back
2
of the oven, to the blower plate with the 2 bronze
metal screws provided.
Make sure that the damper pivots easily before
mounting oven.
You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
oven is installed.
Installation Instructions
Damper
Exhaust Adaptor
Blower Plate
Back of Oven
13

MOUNT THE OVEN

A4
FOR EASIER INSTALLATION AND PERSONAL SAFETY,
WE RECOMMEND THAT TWO PEOPLE INSTALL
THIS OVEN.
IMPORTANT: Do not grip or use handle during
installation.
NOTE: If your cabinet is metal, use the nylon grommet
around the power cord hole to prevent cutting of the cord.
NOTE: We recommend using filler blocks if the cabinet
front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used, case damage
may occur from over tightening screws.
NOTE: When mounting the oven,
thread power cord through hole
in bottom of top cabinet. Keep it
tight throughout Steps 1–3.
Do not pinch cord or lift oven
by pulling cord.
Rotate front of oven up
2
against cabinet bottom.
Insert a self-aligning screw through top center cabinet
3
hole. Temporarily secure the oven by turning the
screw at least two full turns after the threads have
engaged. (It will be completely tightened later.)
Be sure to keep power cord tight. Be careful not to
pinch the cord, especially when mounting flush to
bottom of cabinet.
Lift oven, tilt it
1
forward, and
hook slots at back
bottom edge onto
2 lower tabs of
mounting plate.
