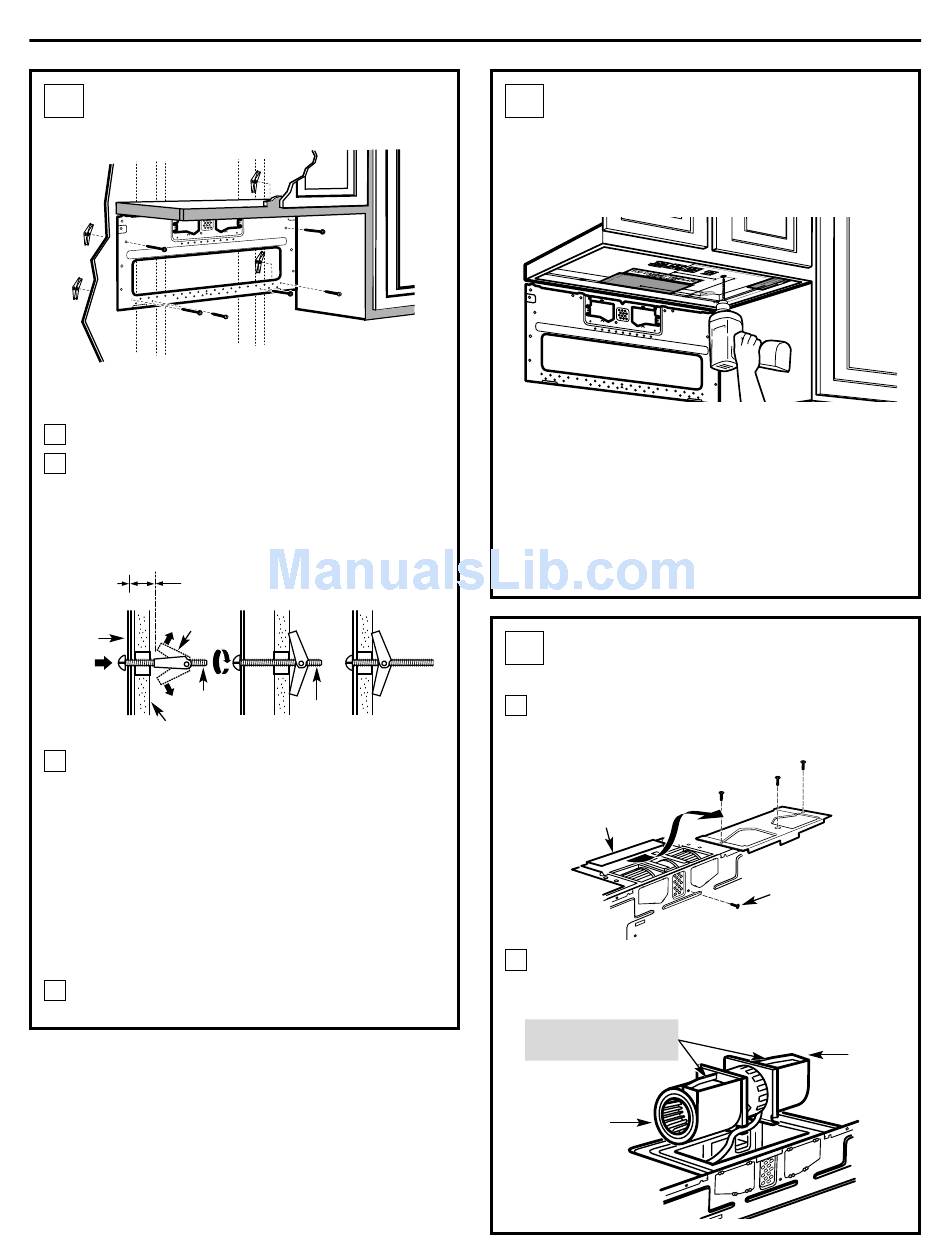

ATTACH THE MOUNTING
B2
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts. At least one
wood screw must be used to attach the plate to a wall stud.
Remove the toggle wings from the bolts.
1
Insert the bolts into the mounting plate through the
2
holes designated to go into drywall and reattach the
toggle wings to 3/4" onto each bolt.
To use toggle bolts:
Spacing for Toggles More
Than Wall Thickness
Toggle
Wings
Mounting
Plate
Toggle
Bolt
Wall
Place the mounting plate against the wall and insert
3
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch the
bottom of the cabinet when pushed flush against the wall
and that the plate is properly centered under the cabinet.
CAUTION:
Be careful to avoid pinching
fingers between the back of the mounting plate and
the wall.
Tighten all bolts. Pull the plate away from the wall
4
to help tighten the bolts.
Installation Instructions
Bolt End
16
USE TOP CABINET TEMPLATE
B3
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and a
hole large enough for the power cord to fit through.
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
CAUTION:
Wear safety goggles when drilling
holes in the cabinet bottom.
ADAPTING BLOWER FOR
B4
OUTSIDE BACK EXHAUST
Remove the 3 screws that hold the blower plate to
1
the oven. Slide blower plate from under its retaining
flange. Remove and save the screw that holds blower
motor to oven.
Retaining Flange
Carefully pull out the blower unit. The wires will
2
extend far enough to allow you to adjust the
blower unit.
BEFORE: Fan Blade
Openings Facing Up
End A
Blower Motor Screw
End B
