Modem connector

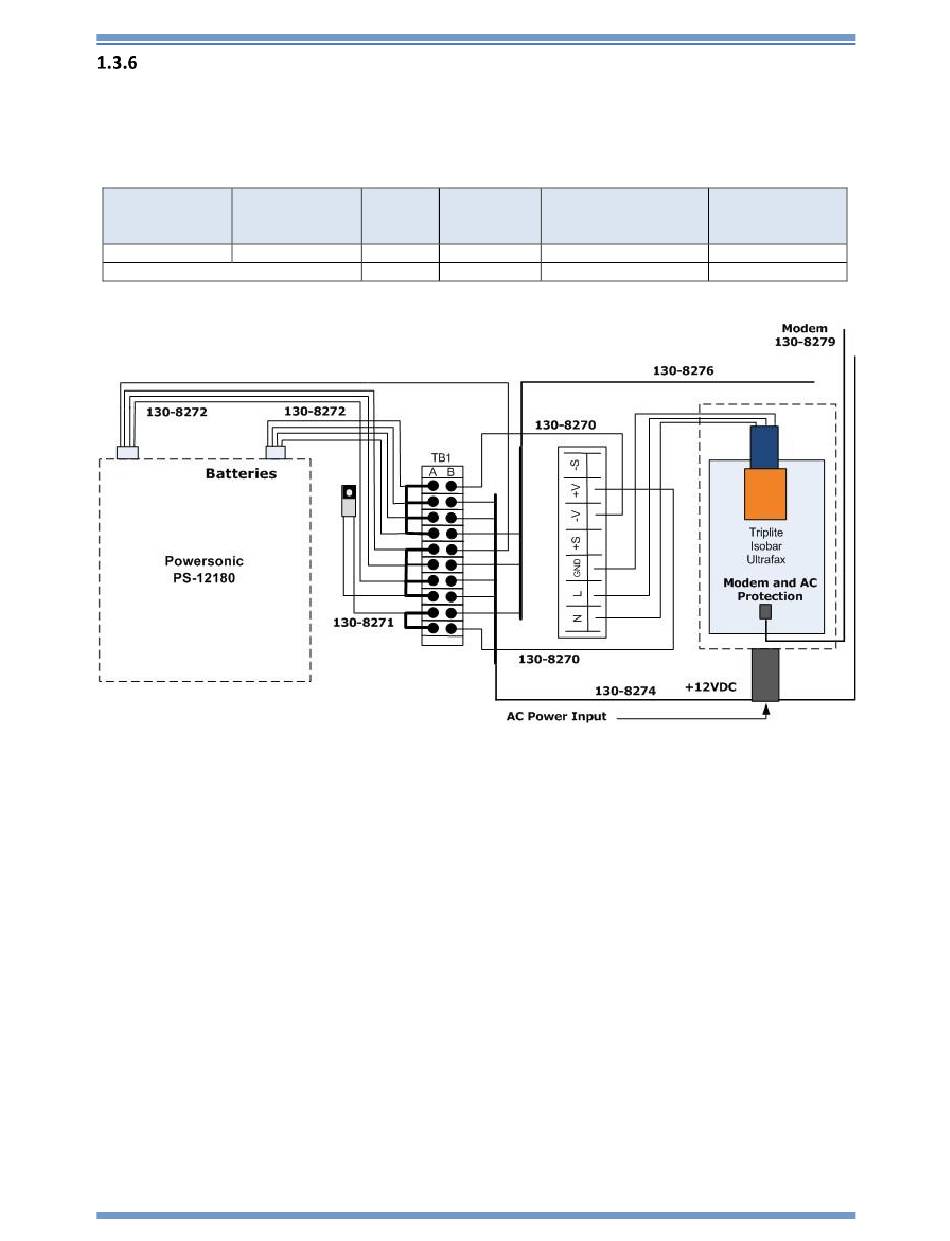

The modem connector provides connections for the 130-MC internal modem. The modem
connector is provided in order to connect the internal modem to the Plain-Old-Telephone-
Service. The 130-8279 telephone line cable from the 130-03 connector connects to the Tripplite
Isobar connector.
130-03 Tripplite
Connector Connector
Relay/Modem 130-8279
10
REF TEK 130 Multi-Channel Users Guide
96223-00-UG
MC Pin Pin Desc
A TIP
B RING
Electrical Desc Voltage Range
Telephone Line
Telephone Line
