Removal of Fan Motor

4. Removal of Fan Motor

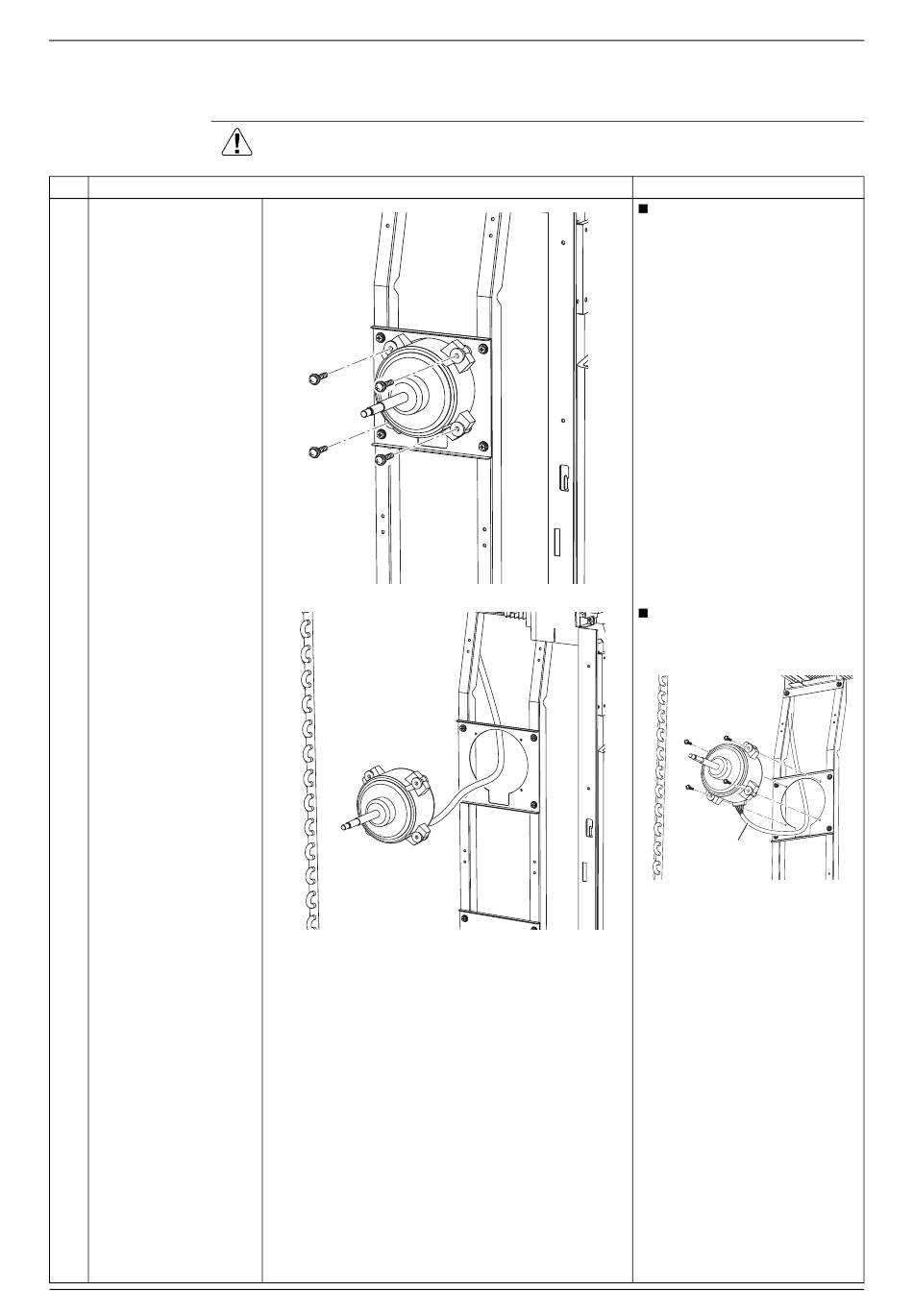

Procedure
Step
1 Remove the 2 lower
screws first.
2 Then, remove the 2 top
screws.
3 Remove the fan motor.
26
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Be sure to remove the lower
screws first. If the top screws
are removed first, the fan
motor may tilt down or fall
and cause injury because its
center of gravity is shifted to
the front.
(R6239)
When reassembling, make
sure that the wire harness is
facing downward.
Harness
(R6240)
Si00-776
Points
(R6241)
Removal Procedure
