Removal of Compressor

8. Removal of Compressor
Procedure
Step
1 Remove the terminal
cover.
Pull out the 4 lead
2
wires.
Remove the overload
3
protector (OL).
32
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

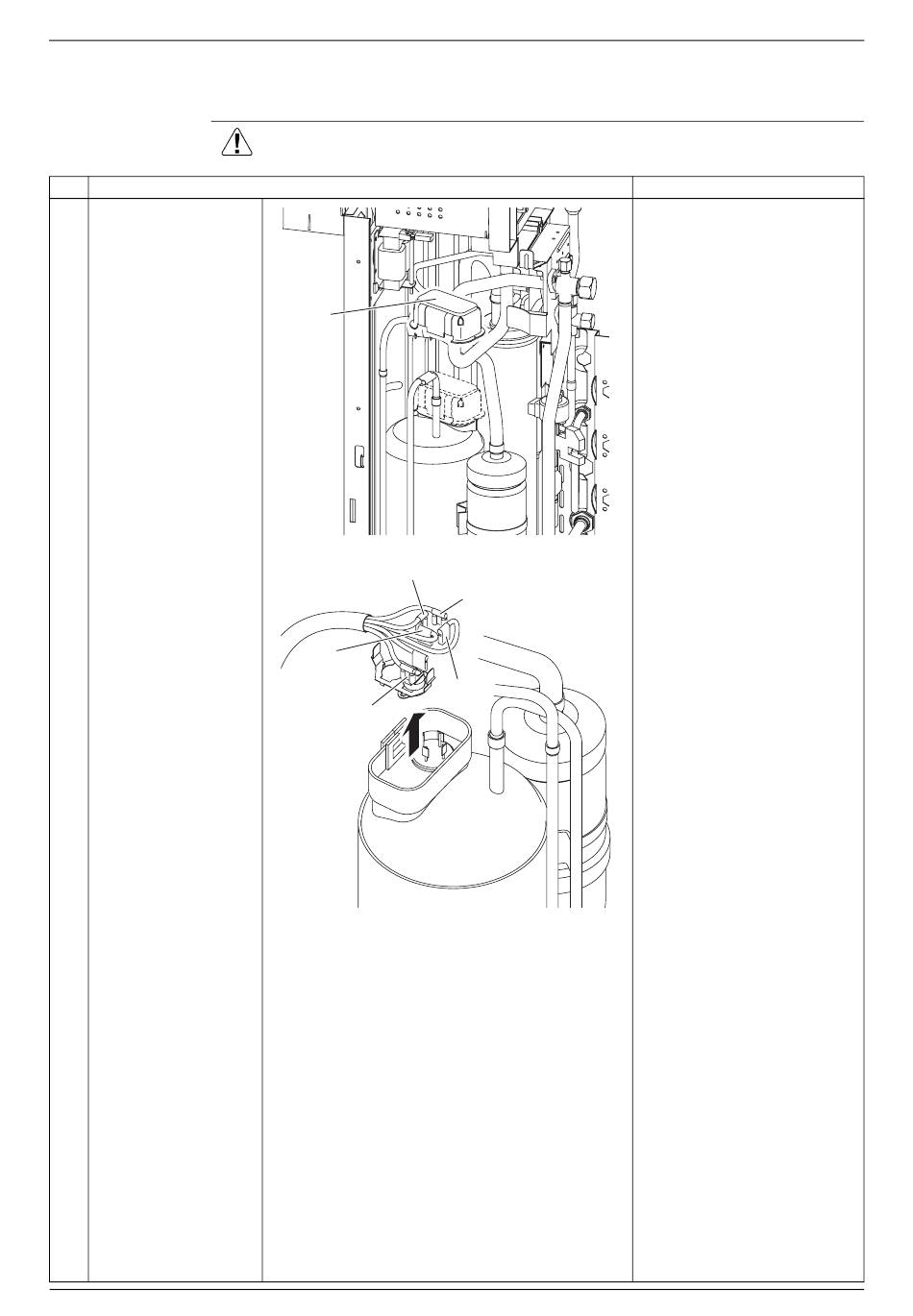

Procedure
Terminal
cover
U(red)
V(yellow)
OL
(R16907)
N(brown)
W(blue)
(R6259)
Si00-776
Points
Removal Procedure
