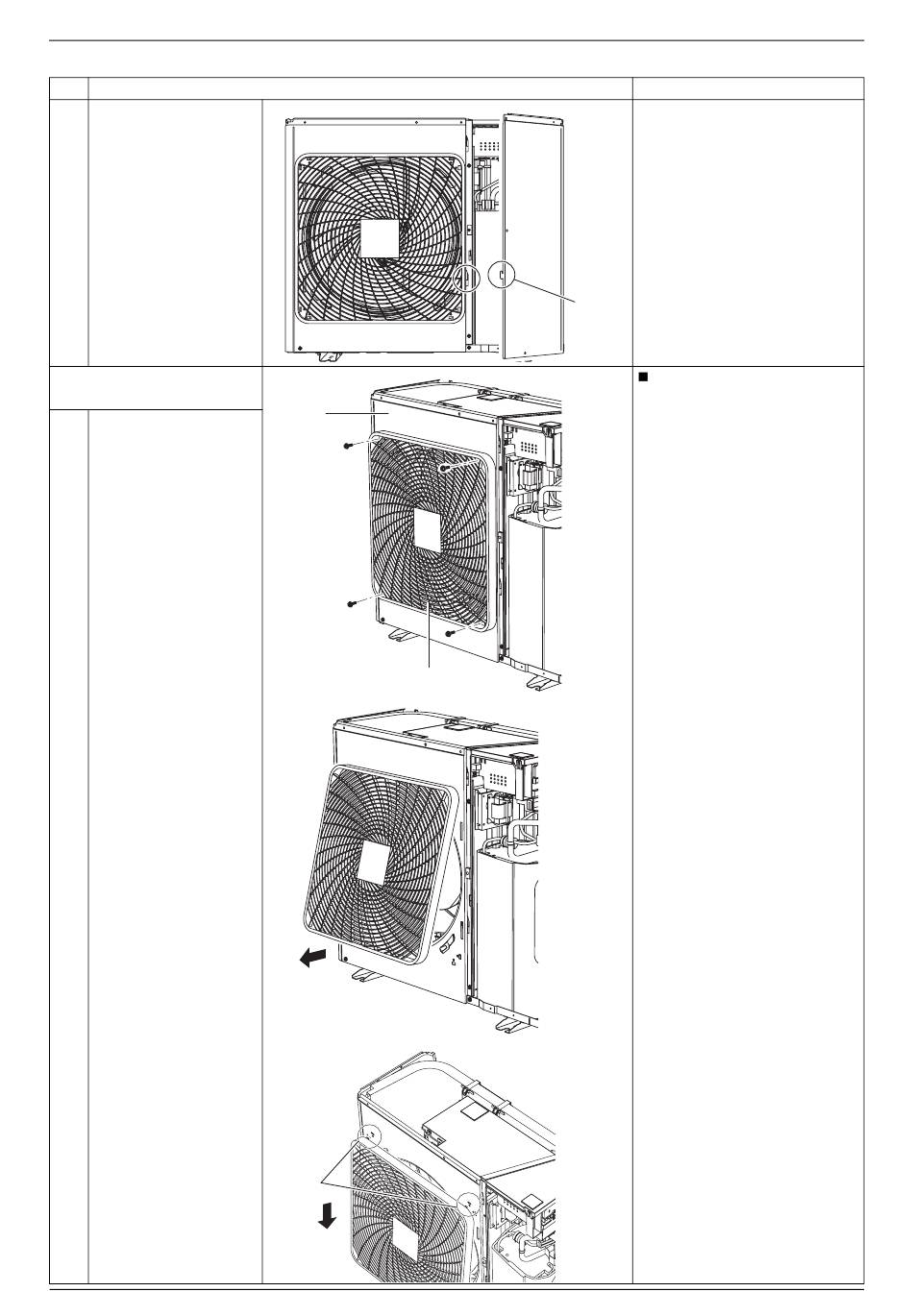

Removal of Outer Panels
Step
3
Remove the front panel
(2).
6. Remove the front panel
(1).
Remove the 4 screws
1
on the discharge grille.
Pull the bottom of the
2
discharge grille.
3
Slide the discharge
grille downward to
unfasten the 2 hooks at
the top.
6
Procedure
Front
Panel (1)
Discharge grille
Hook
Points
Hook
(R17074)
Remove the discharge grille
and the outdoor fan before
removing the front panel (1).
(R16875)
(R16876)
(R16877)
Si00-776
Removal Procedure
