2. Removal of Electrical Box

Procedure

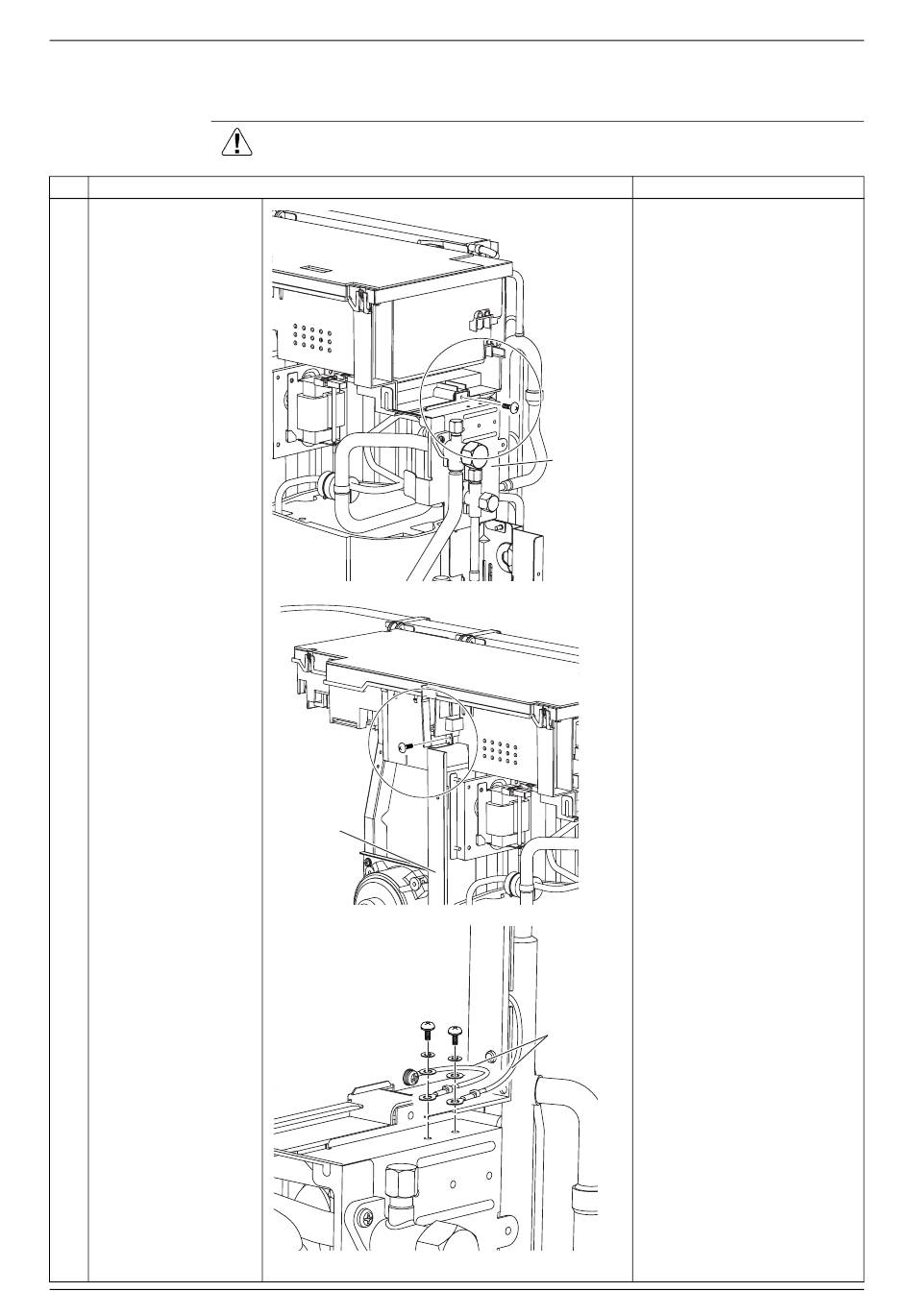

Step
1 Remove the screw on
the stop valve mounting
plate.
2 Remove the screw on
the partition plate (1).
3 Remove the 2 screws
to detach the earth
wires.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Partition
plate (1)
Removal of Electrical Box
Stop valve
mounting
plate
(R16889)
(R16890)
Earth wire
(R17076)
