- Page 1 UCC dynamic mapping tool user's guide www.renishaw.com UCC dynamic mapping tool user's guide Documentation part number: H-1000-5363-01-C Issued 12 2021...
-
Page 2: General Information
Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation. You should consult these Standard Terms and Conditions to find out the full details of your warranty. -
Page 3: Care Of Equipment
Renishaw probes and associated systems are precision tools used for obtaining precise measurements and must therefore be treated with care. Changes to Renishaw products Renishaw reserves the right to improve, change or modify its hardware or software without incurring any obligations to make changes to Renishaw equipment previously sold. Company registration details Renishaw plc. -
Page 4: Product Compliance
Information to user (47 CFR 15.21) The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void the user's authority to operate the equipment. -
Page 5: Reach Regulation
UCC dynamic mapping tool user's guide www.renishaw.com ICES-001 (Canada only) This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme à la norme ICES‐001 du Canada. REACH regulation Information required by Article 33﴾1﴿ of Regulation ﴾EC﴿ No. 1907/2006 ﴾“REACH”﴿ relating to products containing substances of very high concern (SVHCs) is available at: www.renishaw.com/REACH... - Page 6 If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. There are no user serviceable parts inside the equipment. Power is supplied to the UCC dynamic mapping tool electronics via the USB connection to the PC. Issued 12 2021...
-
Page 7: Environmental Conditions
UCC dynamic mapping tool user's guide www.renishaw.com Environmental conditions The following environmental conditions comply with those defined in BS EN61010-1:2001: Indoor use IP40 (no protection against water) Altitude Up to 2000 m Operating temperature +5 °C to +55 °C Storage temperature ‐25 °C to +70 °C... -
Page 8: Software Setup

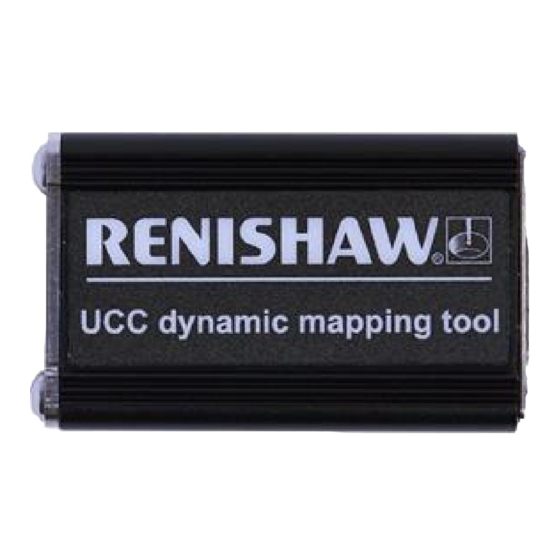

Introduction The UCC dynamic mapping tool (DMT) enables laser error mapping to be run dynamically on a CMM. This speeds up the process of data gathering and allows more data to be collected, ultimately giving a higher quality error map in a shorter time. -
Page 9: Kit Contents
UCC dynamic mapping tool user's guide www.renishaw.com Kit contents The UCC dynamic mapping kit contains: UCC dynamic mapping tool 'Y' adaptor cable 5 m USB cable Issued 12 2021... -
Page 10: Interconnection Diagrams
UCC dynamic mapping tool user's guide www.renishaw.com UCC dynamic mapping tool connection and setup 'Y' adaptor and the micro USB cable connect to the DMT as below: Interconnection diagrams UCC2-2 and SPA2-2 / SPA3 UCC T5 / UCC S5 and SPA3... - Page 11 UCC dynamic mapping tool user's guide www.renishaw.com UCC2-2 and SPA2-2 / SPA3 The DMT 'Y' cable adaptor PICS connector must be connected to the PICS B connection on the UCC2-2. NOTE: For simplicity, only connectors relevant to the use of DMT are shown.
- Page 12 UCC dynamic mapping tool user's guide www.renishaw.com UCC T5 / UCC S5 and SPA3 The DMT 'Y' adaptor cable PICS connector must be connected to the PICS connection on the SPA3. CAUTION: If using a PH20, ensure the orange cable is unplugged (this does not apply to REVO).
- Page 13 UCC dynamic mapping tool user's guide www.renishaw.com UCC T3 PLUS / UCC S3 and SPA3 The DMT 'Y' adaptor cable PICS connector must be connected to the PICS connection on the UCC. CAUTION: Ensure the scanning connector is unplugged if using a UCC S3 and scanning probe.
- Page 14 UCC dynamic mapping tool user's guide www.renishaw.com UCC T3-2 and SPA3 The DMT 'Y' adaptor cable PICS connector must be connected to the PICS connection on the UCC T3-2. NOTE: For simplicity, only connectors relevant to the use of DMT are shown.
-
Page 15: Maintenance
UCC dynamic mapping tool user's guide www.renishaw.com Maintenance Check the security of mounting screws and USB connector Remove dust from the external surfaces with a proprietary cleaning cloth There are no user servicable parts within the UCC dynamic mapping tool Issued 12 2021... - Page 16 Renishaw plc +44 (0)1453 524524 New Mills, Wotton-under-Edge +44 (0)1453 524901 Gloucestershire, GL12 8JR United Kingdom www.renishaw.com/cmmsupport For worldwide contact details, please visit our main website at www.renishaw.com/contact Issued 12 2021...
