  • Page 1 Installation guide H-1000-5109-02-A UCClite-2 and UCClite...
  • Page 2 Trademarks RENISHAW® and the probe emblem used in the RENISHAW logo are registered trademarks of Renishaw plc in the UK and other countries. apply innovation is a trademark of Renishaw plc.
  • Page 3 UCClite-2 and UCClite installation guide...
  • Page 4 Information to user (FCC section 15.21) The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void the user’s authority to operate the equipment.
  • Page 5 EC declaration of conformity EC declaration of conformity The UCClite and UCClite-2 has been manufactured in conformity with the following standards: BS EN 61326:1998 Electrical equipment for measurement, control and laboratory use – EMC A1:1998 / A2:2001 requirements. Immunity to Annex A - industrial locations.
  • Page 6 Renishaw equipment previously sold. Warranty Renishaw plc warrants its equipment for a limited period (as set out in our Standard Terms and Conditions of Sale) provided that it is installed exactly as defined in associated Renishaw documentation.
  • Page 7 References and associated documents References and associated documents It is recommended that the following documents are referred to when installing the UCClite-2 or UCClite. Renishaw documents Associated documentation is available from UCCserver.com website. Document number Title H-1000-5068 SPA1 installation guide...
  • Page 8 Electrical requirements The UCClite-2 and UCClite are powered from an external PSU with an output of 24 V dc ±5% at 2.5 A maximum or it can be powered from the SPAlite through the SPA connector cable.

  • Page 9: Table Of Contents

    Joystick ..........................15 Installation of the UCClite-2 components ..................17 General wiring standards .......................17 3.1.1 Preparations ......................17 Connecting UCClite-2 cables to and from CMM ..............18 Connecting the UCClite-2 power supply ................18 3.3.1 Connection to the SPAlite power supply..............18 3.3.2 Connection to an external power supply..............18 Connecting the UCClite-2 to the host PC..................19...
  • Page 10 0 V (24 V return) ....................34 Digital SPA connector A and B....................34 Machine I/O connector ......................34 6.8.1 +24 V DC ....................... 35 6.8.2 UCClite-2 general purpose output ................. 36 6.8.3 UCClite-2 general purpose inputs................36 6.8.4 Amplifier OK input ....................36 6.8.5 CMM declutch ......................
  • Page 11 TP200 touch-trigger probe system for UCClite-2............53 9.1.5 PH10 probe head and 2 wire touch-trigger probe system for UCClite....54 9.1.6 PH10 probe head and 2 wire touch-trigger probe system for UCClite-2 ....55 9.1.7 PH10 probe head and TP200 trigger probe system for UCClite......56 9.1.8 PH10 probe head and TP200 trigger probe system for UCClite-2 ......57...
  • Page 12 Contents 9.2.1 UCClite and SPA1 ....................58 9.2.2 UCClite-2 and SPA1 ....................59 9.2.3 UCClite and SPA2-2 ....................60 9.2.4 UCClite-2 and SPA2-2 ................... 61 9.2.5 UCClite and SPAlite....................62 9.2.6 UCClite-2 and SPAlite.................... 62 Joystick display window (only applicable for UCClite)..............63 10.1 The window ...........................

  • Page 13: Introduction

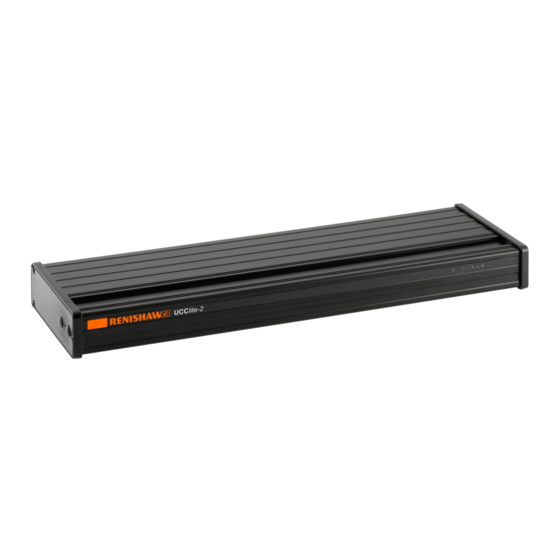

    Unless otherwise stated all references to the UCClite-2 also apply to the UCClite. 1. Introduction The purpose of this chapter is to describe the UCClite-2 (universal CMM controller) and the available options. 1.1 Overview The UCClite-2 is an addition to the Renishaw CMM controller product range. Utilising the UCC1 platform introduced in 1997, the UCClite-2 offers similar system performance and capability.

  • Page 14: Cmm Host Computer

    1 GHz processor speed and 256 Mb RAM is recommended. For UCClite-2 only one free USB port is required as the MCU joystick plugs directly into the controller. For UCClite the PC must have two free USB ports available for the communication and the system joystick.

  • Page 15: Joystick Display Window (Ucclite Only)

    Joystick display window (UCClite only) This is a stand-alone utility, which shows the machine status, similarly to a MCU1 display screen. Please refer to chapter 10 for more details. This utility is not required for UCClite-2 system. 1.3.6 UCClite-2 system components The part numbers of the UCClite-2 kits and upgrades are: 1.3.6.1...
  • Page 16 UCClite emergency stop pendant (UCClite only) P-JS01-0004 DirectX compatible joystick (must be 3 axis joystick) (UCClite only) A-1368-0100 PHC10-2 controller A-1207-0010 PI 200 probe interface 1.3.6.4 UCClite-2 compatible servo power amplifiers A-5355-0100 SPAlite digital servo power amplifier A-5402-8302 SPA2-2 digital servo power amplifier...

  • Page 17: Description Of The Ucclite-2

    24 V DC 2.5 amp power supply. 2.3 Joystick UCClite-2 has an input for a MCUlite (or MCU1 / MCU5) joystick and therefore does not require a joystick to be connected to a USB port on the system P.C The UCClite does not have an input for a joystick control but the system will require one. The system has...
  • Page 18 A ‘joystick display’ window. This is a status window, similar to the screen on the MCU1 joystick, that pops up on the P.C. screen. The use of this utility is covered in chapter 10 of this manual. NOTE: UCClite-2 requires neither the ‘joystick configurer’ nor the ‘joystick display’ window utilities.

  • Page 19: Installation Of The Ucclite-2 Components

    Particular attention should be paid to the screening and earthing methods of the cables carrying signals from probes. NOTE: The UCClite-2 electronics 0 V rail is connected to the overall ground plane at a star point within the UCClite-2.

  • Page 20: Connecting Ucclite-2 Cables To And From Cmm

    Secure all cables for strain relief without reducing access for servicing. 3.3 Connecting the UCClite-2 power supply WARNING: There is no internal fuse on the power supply to the UCClite-2. The installer must provide suitable protection. The maximum current demand of the UCClite-2 is 2.5 A at 24 V.

  • Page 21: Connecting The Ucclite-2 To The Host Pc

    When you get to the “Installation successfully completed” screen you are ready to connect your UCClite-2. When you first connect you UCClite-2 into a PC USB port the drivers will be installed automatically. You are now ready to start. 4.2 Software installation (UCClite only)

  • Page 22: Ucclite-2 Usb Connection

    The UCClite-2 uses the USB1.1 specification communication link. A 5 m USB cable is provided for this link as part of the UCClite-2 kit. Other lengths may be used; the maximum being 5m is governed by the generic specification for USB connections.

  • Page 23: Downloading

    Connecting the UCClite and UCClite-2 to the host PC To upgrade the UCClite-2 it is necessary to purchase a software activation code from Renishaw and then apply this to the controller using the licence key manager. If you have the software activation code then start the licence key manager located in ‘start \ program files \ UCC software’.

  • Page 24: Connecting The Ucclite-2 To A Cmm

    Connecting the UCClite and UCClite-2 to a CMM Connecting the UCClite-2 to a CMM The purpose of this chapter is to describe the various connections available within the UCClite-2 design to enable connection to a CMM. This section reviews each UCClite-2 connection and gives comments on the preferred methods and available alternatives.
  • Page 25 Connecting the UCClite and UCClite-2 to a CMM Figure 2...

  • Page 26: The Controller 24 V Supply

    5.2.1 Amplifier enabling The ‘amps OK’ signal produced by the amplifier control circuits is an indication to the UCClite-2 controller that the servo power amplifiers are not faulty. The controller will first ensure that all its motor demand signals are zero and will then try to enable the...

  • Page 27: Contactor Energising

    5.3 Motor command signals The UCClite-2 controller generates complementary motor velocity command signals for each axis: (X axis = pins 8+9, Y axis = pins 10+11, Z axis = pins 12+13 on the servo power amplifier connector).

  • Page 28: Motor Command Polarity

    The UCClite-2 has the following controller switch inputs, please refer to section 6.8.3 for details: Pins 13 and 14 are the two uncommitted inputs available on the UCClite-2 I/O connector, all other inputs have dedicated functions. The UCCite-2 does not directly read these inputs, they can be read by the application software package via command 279 ‘Read from controller ports’.

  • Page 29: Amplifier Ok And Contactor Feedback

    Connecting the UCClite and UCClite-2 to a CMM 5.6.2 Amplifier OK and contactor feedback The ‘amplifier OK’ and the ‘contactor feedback’ inputs have been discussed in sections 5.2.1 and 5.2.2. 5.6.3 Air pressure and crash switch (Fatal faults) The controller monitors these two inputs and will remove power from the motors if either of them goes open circuit or high.

  • Page 30: Connectors And Signals

    Connectors and signals The purpose of this chapter is to describe in detail the pin-outs of the connectors mounted at the rear of the UCClite-2 controller and to show examples of relevant circuit diagrams for the input and output circuits.
  • Page 31 UCClite-2, are of the correct polarity i.e. machine movement in a positive direction along any axis should give positive change of position as reported to the host computer by the UCClite-2 controller. Adjust this, if required, by reversing the inputs of the scale readhead signal (change over +A with +B and –A with -B).

  • Page 32: Cmm Readhead Interface Circuit

    The signals from a readhead or interpolator should be to EIA specification RS-422. Figure 4 - UCClite-2 input circuits for CMM readhead – scale and reference mark inputs NOTE: If error inputs are not used or the readhead type is RGH24, connect the +error input to 0 V and the –error input to +5 V.

  • Page 33: Usb Connection

    Connectors and signals 6.3 USB connection This is a standard USB type B connector providing the communication connection between the UCClite-2 and the PC hosting the application software. 6.4 Serial Comms This port is designed to communicate to other Renishaw interfaces/controllers such as the PHC10-2, the...

  • Page 34: Analogue Spa Connector

    The UCClite-2 has the ability to connect to a SPA1 or 3 party servo power amplifier system through this 25-way D-type socket on its rear panel. A 24 V dc supply is also provided by the UCClite-2 through this connector to energise the CMM status switch.

  • Page 35: Contactor

    4 and an active high form on pin 21. 6.6.4 Axis command signals These outputs (pins 8 to 13) are the velocity demand signals for each axis from the UCClite-2 to the servo power amplifiers. They vary over the range +10 to –10 Vs. 6.6.5...

  • Page 36: Estop Tripped

    This input (pin 24) is used to inform the UCClite-2 of the CMM ‘emergency stop’ condition (E_STOP). If the input pin is pulled down to 0 V (24 V return) the UCClite-2 will assume that there is no emergency stop active and allow the servo motors to be energised.
  • Page 37 Connectors and signals Figure 9 NOTE: The majority of the connections on the machine I/O connector can be configured such that they are either active high or active low signals but settings available within the machine configuration file. The default setting for all signals is active high. Refer to Function Description...

  • Page 38: Ucclite-2 General Purpose Output

    6.8.4 Amplifier OK input This signal (pin 19) is produced by the servo power amplifier to inform the connected UCClite-2 controller that ALL the servo power amplifiers have been successfully enabled, it is an active low signal i.e. pulled to 0 V (+24 return) to indicate success.

  • Page 39: Estop Tripped

    SPA connector pin 24. If the input pin is pulled down to the 24 V return line, the UCClite-2 will assume that there is no emergency stop active and will allow the servo motors to be energised.

  • Page 40: Limit Switches

    6.8.10 Limit switches The UCClite-2 will use these input signals (pins 25 to 36) to stop the CMM as programmed by the host computer (See the UCC programmer’s guide, command number 311). All outer limit switches have to be closed before the CMM drives can be engaged. Operation of these switches is interpreted as a fatal fault.

  • Page 41: Ucclite-2 Troubleshooting

    The purpose of this chapter is to provide assistance in diagnosing and rectifying system faults. 7.1 Front panel LED displays To aid troubleshooting of the UCClite-2 system, six status LEDs are visible through the front panel of the unit, these are detailed below.

  • Page 42: System File Downloading

    If the system file download fails then the power on, error and system ready (flashing) LEDs will be on. In this condition, the UCClite-2 waits for a system restart. Switch the controller off and after approximately 10 seconds switch it on again.
  • Page 43 A PICS STOP signal may originate from an external accessory such as a probe head controller. If the external device is a Renishaw interface it will indicate it is asserting the PICS STOP by illuminating its own stop led but it may be necessary to remove the PICS connections to peripherals one by one to establish which one is responsible.

  • Page 44: Motors Disengage / Relays Chatter During Move

    UCClite and UCClite-2 troubleshooting 7.2.3 Motors disengage / relays chatter during move Symptoms When the system is engaged, either in moving or in the hold state, the SPA relays chatter and the motors and momentarily disengaged. Possible causes (UCClite only) On the UCClite the servo update loop is controlled within the P.

  • Page 45: Poor Positioning Accuracy

    UCClite and UCClite-2 troubleshooting 7.2.4 Poor positioning accuracy Symptoms The CMM will not finish a move at the correct position. This may occur even if it had reported having reached the target position near the end of the move. Possible causes, tests and cures...

  • Page 46: Controller Will Not Respond To Host Pc

    UCClite and UCClite-2 troubleshooting 7.2.5 Controller will not respond to host PC Symptoms All or some commands from the user’s PC are not executed by the controller. See also the ‘Cannot start a move‘ section below. Possible causes, tests, cures If only some commands are ignored: •...

  • Page 47: Motor Stalling

    UCClite and UCClite-2 troubleshooting 7.2.6 Motor stalling Symptoms The machine stops unexpectedly. The event should be reported as a fault by the user’s program and may be identified as a stall on a specified axis. (The condition is reported to the application software by the controller setting of one of the three ‘axis overdriven‘...

  • Page 48: Timing Out During Moves

    UCClite and UCClite-2 troubleshooting Scale reading (‘grating’) failures Symptoms The machine will stop and disengage the servo drives. The event should be reported by the application software as a ‘scale reading fault’ or similar wording. (The condition is reported to the application software by the controller’s setting of the ‘scale reading failure’...

  • Page 49: Cannot Start A Move

    UCClite and UCClite-2 troubleshooting 7.2.9 Cannot start a move Symptom The machine does not respond when given a move command. The controller returns either the ‘cannot start move’ or the ‘illegal parameter’ status flag with the normal ‘action complete’ flag.

  • Page 50: Specifications

    8.1 Physical specification The UCClite-2 controller is housed inside a 1U high enclosure which can be mounted in a 19 inch rack. Alternatively, it can be used as a desktop unit. A rack mounting kit is available as an optional extra.

  • Page 51: Scale Readhead Signal Speed

    8.4.1 Controller output supplies The UCClite-2 produces a +24 V current limited supply with a maximum output current of 1 A. This supply is available for use by the CMM system to supply status switches, etc. The UCClite-2 also provides protected supplies for other external devices such as scale read-heads, the probe, etc.

  • Page 52: System Interconnections

    System interconnections System interconnections The UCClite-2 provides a simpler means of interconnecting many of the sub-systems (e.g. a probe head) in a measuring system. The purpose of this chapter is to illustrate some system configurations. 9.1 Probing system interconnection 9.1.1...

  • Page 53: Wire Touch-Trigger Probe System For Ucclite-2

    System interconnections 9.1.2 2 wire touch-trigger probe system for UCClite-2...

  • Page 54: Tp200 Touch-Trigger Probe System For Ucclite

    System interconnections 9.1.3 TP200 touch-trigger probe system for UCClite...

  • Page 55: Tp200 Touch-Trigger Probe System For Ucclite-2

    System interconnections 9.1.4 TP200 touch-trigger probe system for UCClite-2...

  • Page 56: Ph10 Probe Head And 2 Wire Touch-Trigger Probe System For Ucclite

    System interconnections 9.1.5 PH10 probe head and 2 wire touch-trigger probe system for UCClite...

  • Page 57: Ph10 Probe Head And 2 Wire Touch-Trigger Probe System For Ucclite-2

    System interconnections 9.1.6 PH10 probe head and 2 wire touch-trigger probe system for UCClite-2...

  • Page 58: Ph10 Probe Head And Tp200 Trigger Probe System For Ucclite

    System interconnections 9.1.7 PH10 probe head and TP200 trigger probe system for UCClite...

  • Page 59: Ph10 Probe Head And Tp200 Trigger Probe System For Ucclite-2

    System interconnections 9.1.8 PH10 probe head and TP200 trigger probe system for UCClite-2...

  • Page 60: Servo Amplifier Connection

    System interconnections 9.2 Servo amplifier connection 9.2.1 UCClite and SPA1 Power...

  • Page 61: Ucclite-2 And Spa1

    System interconnections 9.2.2 UCClite-2 and SPA1...

  • Page 62: Ucclite And Spa2-2

    System interconnections 9.2.3 UCClite and SPA2-2...

  • Page 63: Ucclite-2 And Spa2-2

    System interconnections 9.2.4 UCClite-2 and SPA2-2...

  • Page 64: Ucclite And Spalite

    System interconnections 9.2.5 UCClite and SPAlite 9.2.6 UCClite-2 and SPAlite...

  • Page 65: Joystick Display Window (Only Applicable For Ucclite)

    Joystick display window 10 Joystick display window (only applicable for UCClite) 10.1 The window 10.1.1 Behaviour The joystick display window behaves like a standard window. Click the ‘ ’ button to hide the window. Figure 13 - The title bar Click and drag the border to resize the window, or click and drag the title bar to move it to another position.

  • Page 66: Manual Mode

    Joystick display window 10.2 Manual mode Figure 16 - Manual mode features Figure 17 - Manual mode with graphics...

  • Page 67: Axis Lock

    Joystick display window The manual mode screen is displayed while the user has control of the joystick. • Four icons are shown in the top right corner of the screen area. • The state of the probe trigger, illustrated by figures 19 and 20. •...

  • Page 68: Cmm Motors Status

    Joystick display window 10.2.3 CMM motors status Figure 21 - Motors not engaged Figure 22 - Motors engaged 10.2.4 Y+ Axis Orientation Figure 23 - Up Figure 24 - Right Figure 25 - Down Figure 26 - Left 10.2.5 Active co-ordinate system Machine co-ordinates Part co-ordinates Stylus co-ordinates...

  • Page 69: Automatic Mode

    Joystick display window 10.3 Automatic mode Figure 33 - Automatic mode features The automatic mode screen is displayed while the CMM is under the control of an automatic routine, also known as ‘dcc’ or ‘direct CMM control’ mode. • The first line displays the current value of Speed Override as a percentage of the current speed. It will flash if it falls below a set threshold.

  • Page 70: Joystick Configurer (Ucclite Only)

    Joystick configurer 11 Joystick configurer (UCClite only) 11.1 Joystick USB connection (only required for UCClite) The host PC is recommended to have a dedicated USB connection to the joystick, connection to the joystick through a USB hub causes a reduction in communication speed that these devices normally produce.

  • Page 71: Joystick Configuration (Ucclite Only)

    Joystick configurer 11.4 Joystick configuration (UCClite only) When the UCClite is supplied a default joystick configuration file is installed during the UCClite software installation, these settings are as detailed below: Joystick function Machine function X axis movement Move in X axis, to ISO841 convention Y axis movement Move in Y axis, to ISO841 convention Z axis rotation...

  • Page 72: Choose Controls

    Joystick configurer 11.5.2 Choose controls Use the mouse, arrow keys or joystick to assign actions to joystick controls. • Using the joystick Press a button or move an axis on the joystick to select the corresponding item in the list. Deflect and hold the joystick in the x-axis until the focus switches to the Actions list, then deflect in the Y- axis until the desired action is highlighted.

  • Page 73: View Game Controller Control Panel

    Joystick configurer Figure 37 - Button 06 selected. X/Y orientation item highlighted in actions list 11.5.3 View game controller control panel If necessary, additional joystick settings can be changed via the Game Controller Control Panel provided by the operating system. Press the Control Panel button to view it. Figure 38 - Viewing the game controllers control panel...

  • Page 74: Choose Settings

    Joystick configurer 11.5.4 Choose settings Figure 39 - The settings screen • Deadzone defines the threshold of axis deflection that is treated as zero deflection. • Saturation defines the threshold of axis deflection that is treated as full deflection. • Initial orientation defines the starting position of the operator relative to the CMM machine.

  • Page 75: Test Settings

    Joystick configurer 11.5.5 Test settings Figure 40 - The test screen The test screen allows the user to get some feedback on the behaviour of the configuration. Move the joystick along its axes to move the red dots around the graphs. If the axis enters a dead zone or saturation, the area around the dot will be coloured in orange.

  • Page 76: Saving The Configuration

    Joystick configurer 11.5.6 Saving the configuration The following dialog box will only be displayed when ‘Save’ is pressed, if the default configuration is missing or invalid. The current settings will be set as the default settings when ‘Yes’ is pressed. Figure 41 - Warning about saving the default configuration If the default configuration is valid, the following dialog box will be displayed, to allow the current settings to be saved under a new name, or to replace an existing configuration.
  • Page 77 Joystick configurer Figure 42 - Choosing the configuration name Select the configuration to be replaced, or type the new name in the ‘File name’ box, and press ‘Save’.

  • Page 78: Print Configuration

    Joystick configurer 11.5.7 Print configuration Figure 43 - Reviewing the completed configuration The final configuration step will display a summary of the joystick configuration. Press ‘Print’ to make a hard copy. 11.6 Adding a new configuration Press the ‘New Settings’ button, then follow the ‘setting up a configuration’ process to create a new configuration.

  • Page 79: Changing Configuration Details

    Joystick configurer 11.7 Changing configuration details 11.7.1 Changing an existing configuration Press the ‘Load Settings’ button and use the Open dialog box to locate the configuration to be changed. Press the 'Open‘ button to load the configuration. Follow the ‘setting up a configuration’ process and make changes to the actions and settings as required.

  • Page 80: Maintenance

    Maintenance 12 Maintenance WARNING: Maintenance should only be carried out after the machine has been isolated from the electrical supply, compressed air supply , or other energy sources in accordance with the machine manufacturer’s instructions. Periodically, check the security of mounting screws and electrical connectors. Periodical electrical safety checks should include inspecting the mains cable for damage and safe connections.

  • Page 81: Testing And Verification

    Testing and verification 13 Testing and verification The manufacturer of the finished machine, or the installer of the UCClite-2, is responsible for ensuring that the following testing and verification, to the appropriate standards, is performed as a minimum on the complete installation.

  • Page 82: Revision History

    Revision history 14 Revision history Issue 01-A • First issue. Issue 02-A • Addition of UCClite-2...
