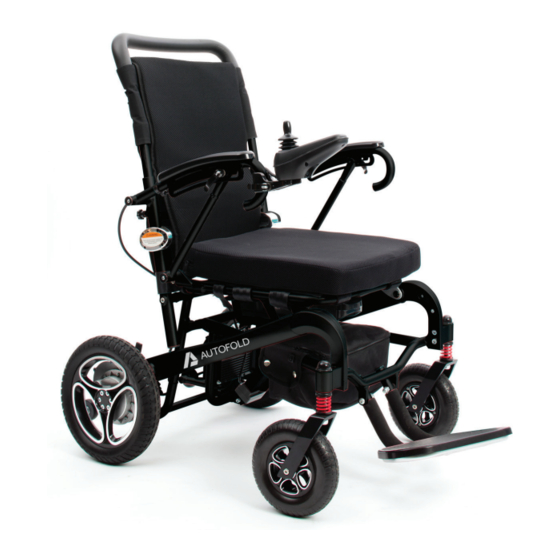

- Page 1 AutoFold Powerchair Instructions for use...
- Page 2 NB. IMAGES CONTAINED IN THIS DOCUMENT ARE FOR ILLUSTRATION AND PARTS IDENTIFICATION PURPOSES ONLY, AND MAY NOT REFLECT FINAL PRODUCT OUTLOOK APPEARANCE.
-
Page 3: Table Of Contents
8. CHARGING & PREPARING FOR USE 8.1 Installation 8.2 Battery Charging 8.3 Folding and unfolding 8.4 Checking Before Use 9. OPERATION OF THE AUTOFOLD POWERCHAIR 9.1 Operational Limits 9.2 Control Panel 9.3 Driving the Powerchair 9.4 Steps, Kerbs & Fixed Obstacles 9.5 Inclines... -
Page 4: Introduction
A maintenance schedule has also included at the back. Keep this manual with the powerchair, or in a safe place. Contact Drive DeVilbiss Healthcare Ltd. or check our website for the latest version of this document. Users with visual, reading or cognitive disabilities should seek advice from a professional care provider for an appropriate format. -
Page 5: Product Description
Additional care should be taken to avoid inclement weather and wet surfaces. 3.2 Intended User Group The AutoFold Powerchair is intended for a single user of weight up to 150 kg (23.6 st). The intended user group for this device is any mobility restricted individual that requires assistance with transport. -
Page 6: Product Overview
A powerchair (under EN 12184:2014), class I medical device and class 2 invalid carriage (under The Use of Invalid Carriages on Highways Regulations 1988). The AutoFold Powerchair is designed to be suitable for extended outdoor use, but with indoor use capabilities. For specific guidance with outdoor use, see section 9.6. -
Page 7: Safety
4.3 Contraindications • The end user exceeds maximum weight capacity indicated in section 4.4, • The end user has postural support needs that are not addressed by the AutoFold Powerchair, • Inability to safely guide a power mobility device. Other contraindications may be relevant which are specific to an individual and / or... -
Page 8: Powerchair Loading
4.4 Powerchair Loading The maximum user weight of the AutoFold Powerchair is: 150 kg (23.6 st) Maximum user weight is the sum of the user mass and the mass of any ancillary attachments or accessories. Exceeding the maximum weight capacity will void your warranty. -
Page 9: General Warnings
If in doubt, contact your local distributor. • Modification of the AutoFold Powerchair, its parts or features is not allowed without the permission of Drive DeVilbiss Healthcare Ltd. — a hazard could be introduced. - Page 10 / product risk assessment. • Do not use the AutoFold Powerchair unattended while in manual mode. Always seek assistance if manual mode is used. Do not use the powerchair in manual mode when on any slope.
-
Page 11: Transport & Storage
5. TRANSPORT & STORAGE Environmental conditions for transport and storage: Ambient temperature: 0°C to +50°C Humidity: <80% RH Follow these conditions when transporting or storing the powerchair: • Store the powerchair fully folded, on a flat, level floor (see section 8.3). •... -
Page 12: Symbol Definition
6. SYMBOL DEFINITION The following symbols are found on the AutoFold Powerchair: Symbol Description Warning Beware of potential hazard Caution Beware of potential product damage Refer to instructions for use - Recommended Failure to read the instructions for use could introduce a hazard... - Page 13 Symbol Description Serial number Product code Distributor code Quantity Authorised EU Representative Manufacturer Date of manufacture Importer W.E.E.E Label - Found on individual parts of electrical system (Waste Electrical and Electronic Equipment) Refer to section 14 Keep away from rain This way up Beware of trapping points...
-
Page 14: Parts Identification
7. PARTS IDENTIFICATION Push Backrest Handle Joystick Storage pouch Control Unit Seat Base Battery Frame Case Storage Suspension Drive Wheel Motor with Mechanism Footrest Front Wheel... -
Page 15: Charging & Preparing For Use
• Only competent persons are to prepare the powerchair for use. If in doubt, contact Drive DeVilbiss Healthcare Ltd. Warning • Ensure a risk assessment in line with local health and safety policy is undertaken to ensure that staff are not put at risk when performing assembly activities. -
Page 16: Battery Charging
• Do not drive the powerchair while the charging cable is attached or connected. • Only charge the AutoFold Powerchair with the approved charger. Never charge the powerchair using a different charger. • Charge fully before each use. Caution The AutoFold Powerchair's batteries should be fully charged (approximately 5-8 hours) before its initial use. -
Page 17: Folding And Unfolding
Store the charger in a safe location. The AutoFold Powerchair has an overload protector built into the battery box. In the event the battery or motor is overloaded, the overload protector will trip and cut off the power. -
Page 18: Checking Before Use
Backrest folding switch The powerchair can be folded using a set of switches attached to the back of the powerchair frame. To supply power to the folding/unfolding mechanism, position the bottom switch to the | position. To begin folding, push the top switch to the | position. Hold this button until folding has finished and the powerchair is stable. -
Page 19: Operation Of The Autofold Powerchair
0°C to +40°C Operating humidity: 20% to 85% RH 9.2 Control Panel Please refer to the diagram below to identify your AutoFold Powerchair control panel and its functions. Familiarise yourself with the terminology to better understand references throughout these instructions. Battery Indicator... - Page 20 Charger socket This socket is the connection for the 3-pin power outlet of the battery charger. Only use this socket for charging the AutoFold Powerchair. Use of the socket to supply power to other electrical equipment may damage the powerchair’s control system and EMC performance.
-
Page 21: Driving The Powerchair
Be aware of loose-fitting clothes that can become caught in the drive wheels. • Always reduce your speed and maintain a stable centre of gravity when turning corners. Always check the AutoFold Powerchair is free of obstructions before use. Caution... -
Page 22: Steps, Kerbs & Fixed Obstacles
9.4 Steps, Kerbs & Fixed Obstacles Use extreme caution when operating your powerchair near kerbs, porches, stairs, escalators, drop-offs, unprotected ledges, and raised areas. Approach slowly, and make sure the front of the powerchair is perpendicular to the obstacle. To manoeuvre up a fixed obstacle – Increase the forward speed until the powerchair has cleared the obstacle, and then you may reduce the speed or return the joystick to neutral. -
Page 23: Inclines
9.5 Inclines Use caution when approaching inclines or declines. If necessary, lower the speed before travelling on a slope. When travelling up an incline, try to keep the powerchair moving forward. If you must come to a stop, use caution and slowly accelerate the powerchair forward. When travelling down an incline, lower the speed on your powerchair to the slowest setting, and proceed cautiously. -
Page 24: Outdoor Operation & Inclement Weather Precautions
9.6 Outdoor Operation & Inclement Weather Precautions Exposure to inclement weather should always be avoided. Monitor weather forecasts before starting a journey to reduce risks. If you find yourself caught in inclement weather while operating your powerchair, proceed to the closest shelter immediately. Completely dry your powerchair before operating, charging, or storing. -
Page 25: Cleaning
Only a damp cloth should be used. • Always disconnect the AutoFold Powerchair from the mains supply prior to cleaning. • Never use any neat bleach or similar chemicals on the seat or armrests, as this may cause the seat to dry out and crack. -
Page 26: Maintenance & Servicing
11. MAINTENANCE & SERVICING • Always disconnect the powerchair from the main power supply and remove the battery prior to performing any maintenance procedures (where viable). • Never attempt to deconstruct the enclosures, re-wire any components or replace internal battery components. Modification of the powerchair is not allowed without the permission of the manufacturer and electrical system components are only to be replaced by authorised service personnel. - Page 27 If there are any signs of damage, or the powerchair is not performing as it should, withdraw it from service until the powerchair has been repaired and is fit for use. Preventative maintenance is key to keeping the AutoFold Powerchair in prime operating condition. Follow the Maintenance Schedule at the end of this manual to periodically inspect the AutoFold Powerchair for serviceable items.
-
Page 28: Fault Detection
11.2 Fault Detection This AutoFold Powerchair has an automatic fault detection system that will alert you to any issues. When a fault occurs, the leds on the battery gauge may light up with a series of audible beeps. The issue can be identified using the table below. If the fault does not appear on the table below, do not use the powerchair, turn off the power and contact Drive DeVilbiss Healthcare Ltd. -
Page 29: Disposal Of Parts
For further information about disposal, contact your local waste agency, recycling centre, or provider. If in doubt, contact Drive DeVilbiss Healthcare Ltd. The AutoFold Powerchair and any associated parts are to be decontaminated before disposal to avoid the risk of cross- contamination. -
Page 30: Electromagnetic Compatibility (Emc)
Your powerchair, with no modifications, has an immunity level of 20 V/m. For specific emissions and immunity information relating to the powerchair, contact Drive DeVilbiss Healthcare Ltd. Report EMI incidents to Drive DeVilbiss Healthcare Ltd. using the details provided in section 2. •... -
Page 31: Specification
14. SPECIFICATION Product name: AutoFold Powerchair Product code: AFPC17BLK Top Speed* 3.7 mph (6 kph) Maximum Range* 7.5 miles (12 km) at 150 kg user weight Rated Slope 6º Maximum Stability Angle 9º (static) 6º (dynamic) Ground Clearance 6.5cm (2.6") Minimum Turning Radius 100 cm (39”) -
Page 32: Warranty
Proof of purchase must be presented with any claim. Except as provided herein, this warranty will not apply to any Drive DeVilbiss Healthcare Ltd. products that have been (a) damaged by lightning, water, or power surges, (b) neglected, altered, abused, or used for a purpose other than the purpose for which they were designed, (c) repaired by you or any other party without Drive DeVilbiss Healthcare Ltd. -
Page 33: Notes
16. NOTES... - Page 34 16. NOTES...
- Page 35 16. NOTES...
- Page 36 16. NOTES...
-
Page 37: Maintenance Schedule
Ensure the powerchair is clean of dirt ✓ and built-up residue SUGGESTION – Once a year, take your powerchair to a Drive DeVilbiss Healthcare Ltd. service engineer for inspection and maintenance who are authorised on behalf of Drive DeVilbiss Healthcare Ltd. -
Page 38: Quick Start Guide
18. QUICK START GUIDE 1. Unpack the powerchair and place the 4. Insert battery. Slide the battery on to the powerchair so the front is on the floor. Make rails underneath the seat. Push the battery sure to release the stopping pin holding the firmly backwards until it locks in position with anti-tip wheels in place on the inside of the an audible click. - Page 39 7. Put freewheel levers into ‘Electric’ mode by 10. Charge battery. The battery can be pushing the levers forward. Repeat for both charged via the powerchair by inserting the charger into the socket on the underside of motors. the joystick. The battery can also be charged directly when removed from the powerchair.
- Page 40 CONTACT INFORMATION Drive DeVilbiss Healthcare Ltd., Sidhil Business Park, Holmfield, Halifax, West Yorkshire, HX2 9TN, GB Drive DeVilbiss Healthcare Ltd. provide these instructions for use and product markings. SUNGO Europe B.V. Olympisch Stadion 24, 1076 DE, Amsterdam, NL Zhejiang Innuovo Rehabilitation Devices Co., Ltd No.
