Summary of Contents for Drive DeVilbiss Healthcare LAWC007A

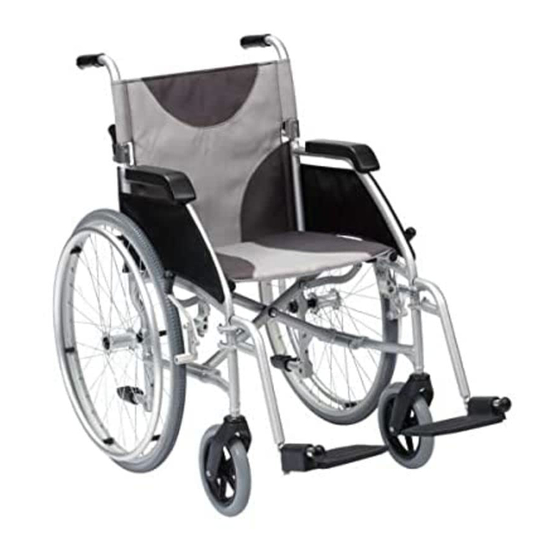

- Page 1 Ultra Lightweight Aluminium Wheelchair (LAWC007A, LAWC008A, LAWC011A, LAWC012A) Instructions for use...
-
Page 2: Parts Description
12.5" WHEEL 24" WHEEL & HANDRIM BRAKE FOOTREST FOOT FRONT REST CASTOR FRONT STEPPER TUBE CASTOR Self Propel models Transit models 17” (LAWC007A) 17” (LAWC008A) 20” (LAWC011A) 20” (LAWC012A) Ultra Lightweight Aluminium Wheelchair (LAWC_IFU 2020-11 rev1) Page 2 of 12... - Page 3 preparing for use symbols These instructions should be read carefully before using the wheelchair. This product is not for user assembly and does not have a service manual. The only parts to be fitted and adjusted are the footrests. A risk assessment must also be performed to assess suitability of the device for the user.
-
Page 4: Footrest Adjustment
footrest adjustment To fit the footrests, place the brackets onto the pins either side of the wheelchair frame (1) and rotate inwards (2) until they lock into place. Pull the tabs inwards to release. For optimum comfort it is important to attain the correct leg position. - Page 5 transfer and use Before using the wheelchair, read the safety notices below; • Do not exceed the 10º maximum gradient. Use slow speeds and do not reverse down a gradient. • Do not use on escalators. • The wheelchair is only suitable for single occupancy. •...
-
Page 6: Brake Operation
steep terrain, kerbs and steps Steep terrain: These wheelchairs are not designed for use on gradients beyond 10°. When on a slope, avoid swerving or sudden changes in movement. Over kerbs: Attendants push down on the stepper tube with a foot to raise the front castors (when mounting a kerb for example). - Page 7 Drive DeVilbiss Healthcare Ltd provide a compatible lap belt (RT-716, shown below) for all wheelchairs in the LAWC range. The length of the belt can be adjusted using the tri-glides (as shown in the diagram) and it has a large luggage-style locking clip to fasten and unfasten the lap belt.
-
Page 8: Disassembly And Storage
disassembly and storage This wheelchair has a number of quick release components and the wheelchair frame is easily foldable. This facilitates a light carry weight and minimises storage space required. To disassemble for storage, transport or maintenance, follow the steps below. To reassemble components, reverse these instructions. -
Page 9: Care And Maintenance
Do not use a damaged or badly worn wheelchair. Users should routinely check for any malfunctions or changes in performance. See Accessories and Spare Parts section for approved parts available from Drive DeVilbiss Healthcare Ltd. • Before each use of the wheelchair, the brakes and tyres should be checked. It can be folded up for storage, with the parking brakes on. -
Page 10: Specification
Model LAWC007A LAWC008A LAWC011A LAWC012A Maximum 115 kg 115 kg 125 kg 125 kg occupant mass Overall length with 107 cm 95 cm 109 cm 95 cm footrest Overall width 62 cm 61 cm 71 cm 66 cm Folded length... -
Page 11: Warranty
If you have any queries or require full warranty conditions, please contact your provider. accessories and spare parts Drive DeVilbiss Healthcare Ltd provide an elevating footrest, along with other accessories compatible with wheelchairs in the LAWC range. Spare parts are also available for maintaining your wheelchair. - Page 12 Koningin Julianaplein 10, le Verd, 2595AA, The Hague, NL Drive DeVilbiss Healthcare Ltd Sidhil Business Park, Holmfield, Halifax West Yorkshire, HX2 9TN, GB Drive DeVilbiss Healthcare Ltd provide these instructions for use and product markings. info@drivedevilbiss.co.uk www.drivedevilbiss.co.uk Service & Maintenance...
