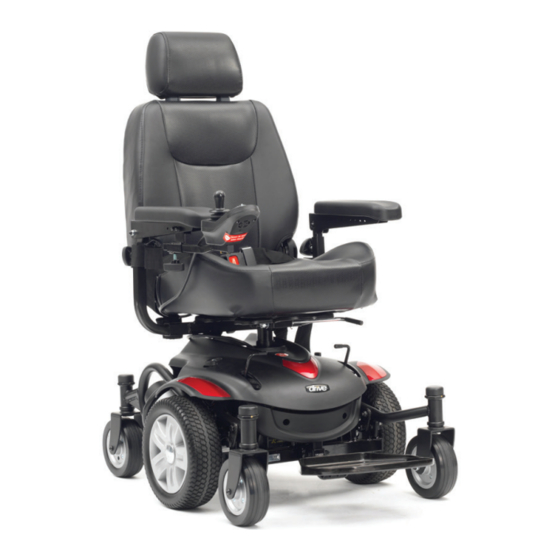

Titan AXS Powerchair
Instructions for use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Titan AXS and is the answer not in the manual?

Questions and answers

Related Manuals for Drive DeVilbiss Healthcare Titan AXS

Summary of Contents for Drive DeVilbiss Healthcare Titan AXS

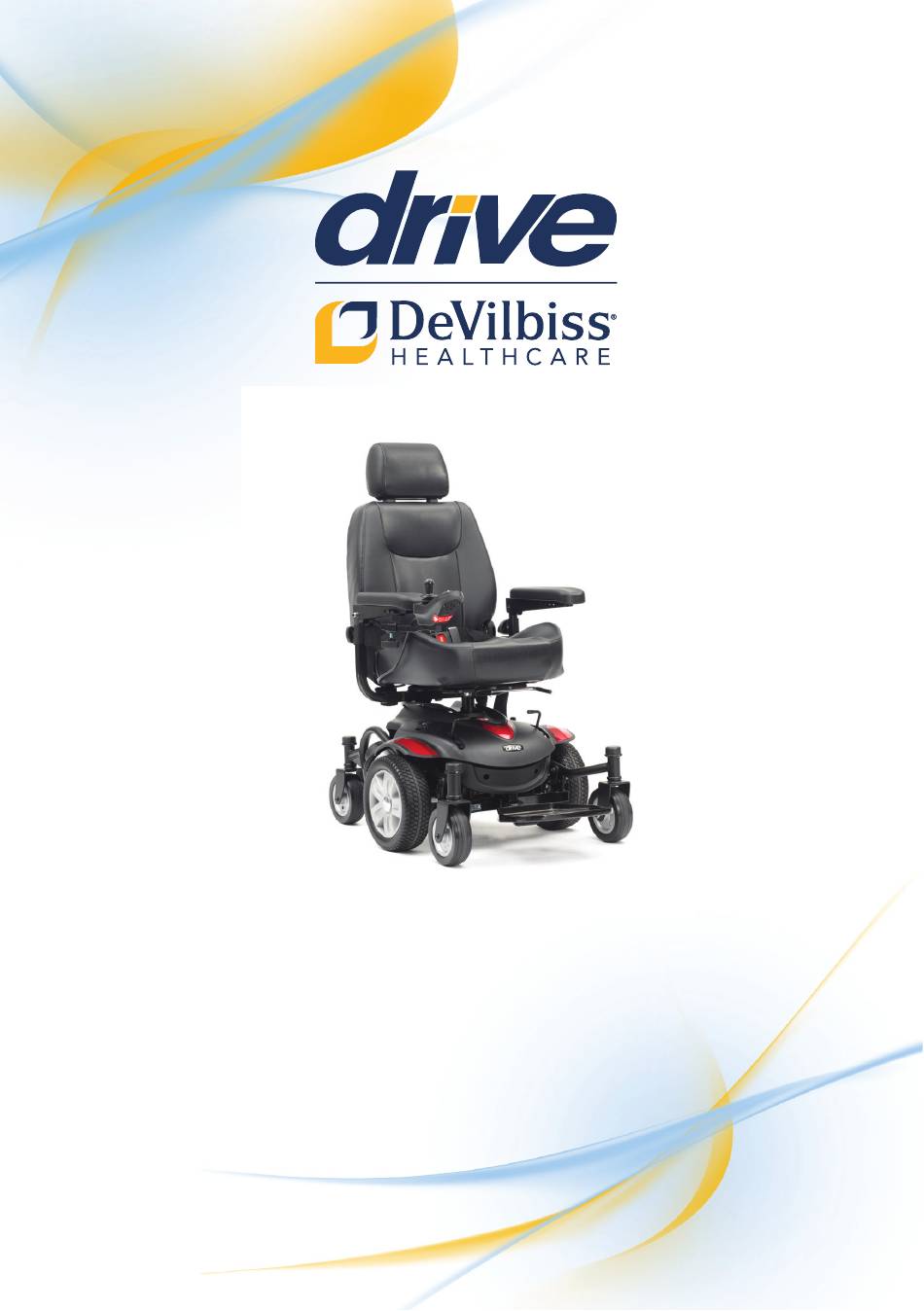

  • Page 1 Titan AXS Powerchair Instructions for use...

  • Page 2: Table Of Contents

    8. ADJUSTMENTS FOR COMFORT 9. CHARGING & PREPARING FOR USE 9.1 Installation 9.2 Battery Charging 9.3 Checking Before Use 10. OPERATION OF THE TITAN AXS POWERCHAIR 10.1 Operational Limits 10.2 Control Features 10.3 Driving the Powerchair 10.4 Steps, Kerbs & Fixed Obstacles 10.5 Inclines...

  • Page 3: Introduction

    A maintenance schedule has also included at the back. Keep this manual with the powerchair, or in a safe place. Contact Drive DeVilbiss Healthcare Ltd. or check our website for the latest version of this document. Users with visual, reading or cognitive disabilities should seek advice from a professional care provider for an appropriate format.

  • Page 4: Product Description

    3. PRODUCT DESCRIPTION 3.1 Environment The Titan Powerchair can be used in both indoor and outdoor environments where appropriate. The Titan Powerchair can be used on flat, even path surfaces, however the user should avoid grass, gravel, gradients greater than 6° and motorised roads. Additional care should be taken to avoid inclement weather and wet surfaces.

  • Page 5: Safety

    4. SAFETY 4.1 Warnings & Cautions Warnings in this user manual highlight potential hazards that if disregarded could lead to injury or death. Warning Cautions in this user manual highlight potential hazards that if disregarded could lead to equipment damage or failure. Caution 4.2 Risk Assessment Before using the powerchair, a risk assessment must be performed by a competent...

  • Page 6: Powerchair Loading

    If these instructions for use are not deemed sufficient and the need for training is required, please contact Drive DeVilbiss Healthcare Ltd. (see section 2) who can discuss training options with you.

  • Page 7: General Warnings

    4.6 General Warnings • Do not use a damaged or badly worn powerchair — risk of harm. • Check the functionality of the powerchair before every use. Ensure the joystick and control system is responsive and free from unintended movement. Check the current fastest speed setting is appropriate.
  • Page 8 • Modification of the Titan Powerchair, its parts or features is not allowed without the permission of Drive DeVilbiss Healthcare Ltd. — a hazard could be introduced. • The powerchair is electrically operated, so should not be used in the presence of flammable gases, sources of heat or naked flames —...

  • Page 9: Symbol Definition

    5. SYMBOL DEFINITION The following symbols are found on the Titan Powerchair: Symbol Description Warning Beware of potential hazard Caution Beware of potential product damage Refer to instructions for use - Recommended Failure to read the instructions for use could introduce a hazard Refer to instructions for use - Mandatory Failure to read the instructions for use could introduce a hazard Medical Device...
  • Page 10 Symbol Description Serial number Product code Importer code Quantity UK Responsible person Authorised EU Representative Manufacturer Date of manufacture Importer W.E.E.E Label - Found on individual parts of electrical system (Waste Electrical and Electronic Equipment) Refer to section 13 Keep away from rain This way up Beware of trapping points This device must not be used as a seat in a motor vehicle.

  • Page 11: Parts Identification

    6. PARTS IDENTIFICATION Headrest Joystick Control unit Backrest Armrest Charging Adjustment Point Bolts Lapbelt Seat Freewheel Levers Seat Swivel & Release Lever Footrest Rear Castor Front Drive Castor Wheel...

  • Page 12: Transport & Storage (Including Assembly)

    7. TRANSPORT & STORAGE Environmental conditions for transport and storage: Ambient temperature: 0°C to +50°C Humidity: <80% RH Follow these conditions when transporting or storing the powerchair: • Store the powerchair on a flat, level floor. • Always fully charge, then remove the battery prior to long-term storage. •...

  • Page 13: Assembling The Powerchair

    7.1 ASSEMBLING THE POWERCHAIR INITIAL ASSEMBLY (this is also applicable after disassembly for transport) 4.Insert the arms in to the seat. 1. Loosen and remove the two knobs on the shroud. Lift up the shroud to remove. 5. Set the arms to the required width then secure by turning the armrest knobs clockwise.
  • Page 14 3-pronged plug into a standard electrical outlet. NOTE: The Titan AXS powerchair comes with interchangeable shrouds, allowing you to customize your powerchair to your liking. All models come with the red shrouds installed, and a spare set of blue shrouds included in the box.

  • Page 15: Adjustments For Comfort

    8. ADJUSTMENTS FOR COMFORT Seat Swivel The seat can be swivelled left or right to make getting on or off the seat more convenient. Lift up on the handle on the left side of the seat and then rotate the seat. Release the handle and carry on rotating the seat until it locks in position.
  • Page 16 Armrest Height The armrest height can be adjusted by loosening the star knob on the top side of the armrest, and sliding the armrests up or down to the desired height. Armrest Width The width of armrests can be adjusted by loosening the bolts on the underside of the seat and sliding the armrests inward or outward to the desired width.
  • Page 17 Footplate Height Remove the two sets of fasteners attaching the footplate as shown in the photograph. Reposition the footplate to the required height, then reattach the fasteners to secure. Footplate Height Remove the two sets of fasteners attaching the footplate as shown in the photograph.

  • Page 18: Charging & Preparing For Use

    • Only competent persons are to prepare the powerchair for use. If in doubt, contact Drive DeVilbiss Healthcare Ltd. Warning • Ensure a risk assessment in line with local health and safety policy is undertaken to ensure that staff are not put at risk when performing assembly activities.

  • Page 19: Checking Before Use

    The Titan Powerchair's batteries should be fully charged (approximately 8-10 hours) before its initial use. Battery chargers, specific to our product, are designed to not overcharge the batteries. You may leave your power mobility product plugged into the charger for longer than 8 –...

  • Page 20: Operation Of The Titan Axs Powerchair

    10. OPERATION OF THE TITAN AXS POWERCHAIR 10.1 Operational Limits Ambient temperature: 0°C to +50°C Operating humidity: 30% to 85% RH 10.2 Control Features Control Panel Please refer to the diagram below to identify your Titan Powerchair control panel and its functions. Familiarise yourself with the terminology to better understand references throughout these instructions.
  • Page 21 Joystick The joystick is used to control the speed and directional movement of the powerchair. The joystick has 360° of movement and moves the powerchair in a combination of forwards, backwards, left and right. The further the joystick is pushed from the central position, the faster the powerchair will move.
  • Page 22 Freewheel mode Your powerchair is equipped with two freewheel levers. These levers allow you to disengage the drive motors and manoeuvre the chair manually. Pull the red levers (shown in photograph) backwards to engage freewheel mode. Push the levers forwards to engage drive mode. Freewheel mode Drive mode DO NOT use your powerchair while the drive motors are disengaged...

  • Page 23: Driving The Powerchair

    10.3 Driving the Powerchair You must exercise awareness, caution, care, and common sense when operating your powerchair. Always keep in mind your own limitations and substance use. Users may encounter difficult manoeuvring situations such as narrow doorways, travelling up and down ramps, cornering, and travelling on uneven terrain. Be sure to lower the speed, take your time, and carefully manoeuvre the powerchair.

  • Page 24: Steps, Kerbs & Fixed Obstacles

    10.4 Steps, Kerbs & Fixed Obstacles Use extreme caution when operating your powerchair near kerbs, porches, stairs, escalators, drop-offs, unprotected ledges, and raised areas. Approach slowly, and make sure the front of the powerchair is perpendicular to the obstacle. To manoeuvre up a fixed obstacle – Increase the forward speed until the powerchair has cleared the obstacle, and then you may reduce the speed or return the joystick to neutral.

  • Page 25: Inclines

    10.5 Inclines Use caution when approaching inclines or declines. If necessary, lower the speed before travelling on a slope. When travelling up an incline, try to keep the powerchair moving forward. If you must come to a stop, use caution and slowly accelerate the powerchair forward. When travelling down an incline, lower the speed on your powerchair to the slowest setting, and proceed cautiously.

  • Page 26: Outdoor Operation & Inclement Weather Precautions

    10.6 Outdoor Operation & Inclement Weather Precautions Exposure to inclement weather should always be avoided. Monitor weather forecasts before starting a journey to reduce risks. If you find yourself caught in inclement weather while operating your powerchair, proceed to the closest shelter immediately. Completely dry your powerchair before operating, charging, or storing.

  • Page 27: Cleaning

    11. CLEANING • Never use direct contact with water to clean the powerchair. This could cause damage to the electrical components and put the user at risk. Only a damp cloth should be used. • Always disconnect the Titan Powerchair from the mains supply prior to cleaning.

  • Page 28: Maintenance & Servicing

    • Your powerchair should be serviced every 12 months, take your powerchair to a service engineer for inspection and maintenance who are authorised on behalf of Drive DeVilbiss Healthcare Ltd. • Always disconnect the powerchair from the mains power supply and remove the battery prior to performing any maintenance procedures (where viable).
  • Page 29 Check the frame and all components for loose fasteners and tighten where appropriate The following conditions may indicate a serious problem with your powerchair. Contact Drive DeVilbiss Healthcare Ltd. if one of the following conditions occurs: • Motor or gearbox noise •...

  • Page 30: Fault Detection

    12.3 Repair Contact Drive DeVilbiss Healthcare Ltd. to discuss the replacement of components on the powerchair. Some spare parts may be replaced by the user under instruction from service personnel, however other components will require installation by a service...

  • Page 31: Disposal Of Parts

    When the powerchair is unpacked for the first time, the cardboard box, and plastic packaging used can be recycled at recycling centres that offer suitable cardboard and polymer recycling programmes respectively. For further information about disposal, contact your local waste agency, recycling centre, or provider. If in doubt, contact Drive DeVilbiss Healthcare Ltd.

  • Page 32: Electromagnetic Compatibility (Emc)

    Your powerchair, with no modifications, has an immunity level of 20 V/m. For specific emissions and immunity information relating to the powerchair, contact Drive DeVilbiss Healthcare Ltd.. Report EMI incidents to Drive DeVilbiss Healthcare Ltd. using the details provided in section 2.

  • Page 33: Specification

    15. SPECIFICATION Product name: Titan AXS Powerchair Product code: TITANAXS Top Speed* 4 mph (6.4 kph) Maximum Range* 19 miles (30.5 km) at 100 kg user weight Rated Slope 6º Maximum Stability Angle 6º (dynamic) Ground Clearance 6cm (2.5") Minimum Turning Radius 51cm (20")

  • Page 34: Warranty

    You will be charged for repair or replacement of the product made after the expiration of the warranty period. Drive DeVilbiss Healthcare Ltd. cannot be held responsible for any injury or incident which relates to the use of this product in conjunction with accessories manufactured by companies other than Drive DeVilbiss Healthcare Ltd.

  • Page 35: Maintenance Schedule

    Check all fasteners are tight and all ✓ components are secure. Ensure the powerchair is clean of dirt ✓ and built-up residue Once a year, take your powerchair to a service engineer for inspection and maintenance who are authorised on behalf of Drive DeVilbiss Healthcare Ltd.
  • Page 36 No. 31, VSIP II, Road 6, Thu Dau Mot City, Binh Duong Province, Vietnam NB. IMAGES CONTAINED IN THIS DOCUMENT ARE FOR ILLUSTRATION AND PARTS IDENTIFICATION PURPOSES ONLY, AND MAY NOT REFLECT FINAL PRODUCT OUTLOOK APPEARANCE. Drive DeVilbiss Healthcare Ltd provide these instructions for use and product markings. Issue: 2023-02 Rev2...
