- Page 1 Expedition Wheelchair www.drivedevilbiss.co.uk...
- Page 2 Expedition Wheelchair Owner’s Handbook (Page 1) Code: EXP002_IFU (Iss 5/17)
-
Page 3: Table Of Contents

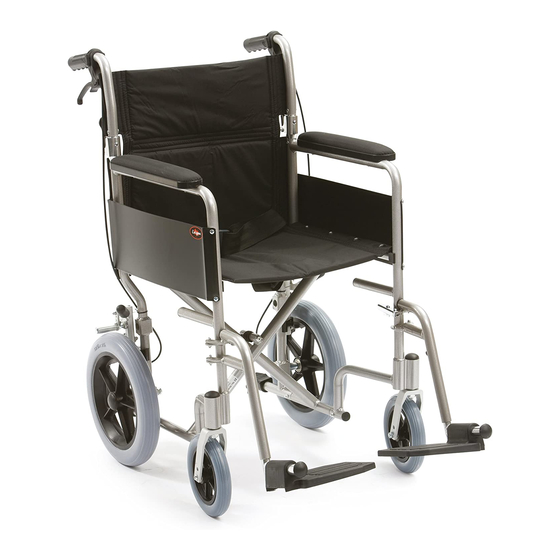

6. Disassembly and Folding Introduction The Enigma Expedition wheelchair is designed for occasional or frequent use, and can be used indoors and outdoors. The wheelchair is designed for a single user of up to 135kg (21 stone) for the standard models or 150kg (23.5 stone) for the heavy duty models. -
Page 4: Parts Description
Parts Description Expedition Wheelchair Owner’s Handbook (Page 3) Code: EXP002_IFU (Iss 5/17) -
Page 5: Folding Back Mechanism
Leg Rest Adjustment Flip the anti-rattle collar lever (1) upwards and then push in brass buttons (2). Adjust the legrests to the required height and until they click in to position. Flip the anti-rattle collar lever (1) downwards. Folding Back Mechanism Push the black paddle towards the back post with your thumb (1) whilst pulling the handle down (2), as shown. - Page 6 Disassembly And Storage This wheelchair has a number of quick release components and the wheelchair frame is easily foldable to facilitate a light carry weight and minimize storage space. Half Folding Back. Follow the previous instructions to fold the back. Folding the wheelchair.
-
Page 7: Using The Stepper Pad
Using The Stepper Pad An attendant can use the stepper pad to raise the front castors (when mounting a kerb for example). To use, push down on the stepper pad with a foot. Do not raise the front castors by pushing down on the push handles as this could result in damage to the wheelchair. -
Page 8: Brake Operation
Brake Operation Cable Brakes To operate the brakes to slow the wheelchair during motion, squeeze both brake levers so they move up (1). Release the lever to release the brake. To operate the brakes as a Note: The brakes should only be temporary parking brake, push both operated by the attendant. -
Page 9: Operation And Propulsion
Operation And Propulsion Before Using the Wheelchair read the safety notices below: Use slow speeds on gradients. Do not exceed the maximum gradient stated. The wheelchair is only suitable for single occupancy. Keep your feet on the footplates when moving. Do not stand on the footplates –... -
Page 10: Using A Lap Belt
Using The Lap Belt The lap belt is to restrain the wheelchair occupant during normal use. The lap belt is not be used as a seat belt in a motor vehicle. Under no circumstances should the Expedition wheelchair be used as a seat in a motor vehicle (e.g. - Page 11 Care And Maintenance Before each use of the wheelchair, the brakes and tyres should be checked. The wheelchair should be stored in a dry environment, away from direct sunlight. When in storage the wheelchair can be folded up ...
-
Page 12: Warranty
If you have any queries or require full warranty conditions, please contact your Drive stockist. This does not affect your statutory rights. Drive DeVilbiss Healthcare Ltd Whitehall 26 Business park 1 Heathfield Lane, West Yorkshire BD11 2HW Web www.drivedevilbiss.co.uk Expedition Wheelchair Owner’s Handbook (Page 11)
