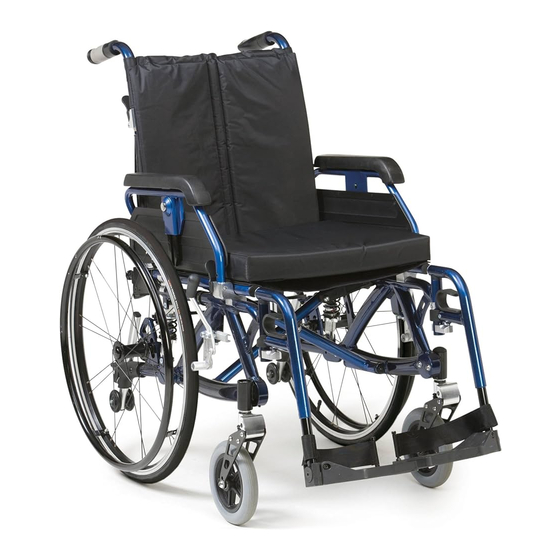

XS Suspension Wheelchair
(XSSW18BL)
Instructions for use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XSSW18BL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Drive DeVilbiss Healthcare XSSW18BL

  • Page 1 XS Suspension Wheelchair (XSSW18BL) Instructions for use...
  • Page 2 Introduction Intended purpose To provide manually propelled mobility to an individual who has a walking related disability and/or who does not have the full capacity to walk. Intended user group The wheelchair is intended for an individual who has a walking related disability and/or who does not have the full capacity to walk and has a weight of up to 115kg (18 stone).
  • Page 3: Parts Description

    PANEL 24" WHEEL & HANDRIM STEPPER TUBE FRONT QUICK CASTOR RELEASE FOOTREST SHOCK ABSORBER XS Suspension AXLE BRACKET Wheelchair STEPPER TUBE XSSW18BL) ANTI-TIP WHEELS FRAME SNAP LINK XS Suspension Wheelchair (back) XS Suspension Wheelchair (2022-01 rev2) Page 3 of 16...
  • Page 4 Preparing for use symbols These instructions should be read carefully before using the wheelchair. This product does not have a service manual. The following parts should be adjusted by a healthcare professional to suit each user’s requirements: Rear Wheels To alter the horizontal and vertical position of the rear wheels, push the quick release pins to remove the wheels and axles (see disassembly and storage), then move the axle bosses to the desired position for both wheels.
  • Page 5: Footrest Adjustment

    Footrest adjustment To fit the footrests, align approximately 45º outwards, push down firmly into the frame (1) then rotate inwards (2) until they lock into place. Pull the handle / lever and rotate to release. For optimum comfort it is important to attain the correct leg position.
  • Page 6 Transfer and use Before using the wheelchair, read the safety notices below; • Do not exceed the 10º maximum gradient. Use slow speeds and do not reverse down a gradient. • Do not use on escalators. • The wheelchair is only suitable for single occupancy. •...
  • Page 7 Steep terrain, kerbs and steps Steep terrain: These wheelchairs are not designed for use on gradients beyond 10°. When on a slope, avoid swerving or sudden changes in movement. Over kerbs: Attendants push down on the stepper tube with a foot to raise the front castors (when mounting a kerb for example).
  • Page 8: Brake Operation

    Brake operation To apply the parking brakes, push the handle on the brake unit forwards until locked in place. To release the brake, pull the handle in the opposite direction. The brakes should always be applied when the wheelchair is stationary. Operating the brakes Using a wheelchair belt...
  • Page 9: Disassembly And Storage

    Disassembly and storage This wheelchair has a number of quick release components and the wheelchair frame is easily foldable. This facilitates a light carry weight and minimises storage space required. To disassemble for storage, transport or maintenance, follow the steps below. To reassemble components, reverse these instructions.
  • Page 10: Care And Maintenance

    Do not use a damaged or badly worn wheelchair. Users should routinely check for any malfunctions or changes in performance. See Accessories and Spare Parts section for approved parts available from Drive DeVilbiss Healthcare Ltd. • Before each use of the wheelchair, the brakes and tyres should be checked. It can be folded up for storage, with the parking brakes on.
  • Page 11: Specification

    Specification Model XSSW18BL Maximum occupant mass 115 kg Overall length with footrest 97 cm Overall width 71 cm Folded length 87 cm Folded width 32 cm Folded height 91 cm Total mass 14.9 kg Static stability 10° 45 cm 40 cm...
  • Page 12 This page is left blank intentionally. XS Suspension Wheelchair (2022-01 rev2) Page 12 of 16...
  • Page 13 This page is left blank intentionally. XS Suspension Wheelchair (2022-01 rev2) Page 13 of 16...
  • Page 14 This page is left blank intentionally. XS Suspension Wheelchair (2022-01 rev2) Page 14 of 16...
  • Page 15: Warranty

    If you have any queries or require full warranty conditions, please contact your provider. Accessories and spare parts Drive DeVilbiss Healthcare Ltd provide a range of accessories for the XS Suspension Wheelchair. Spare parts are also available for maintaining your wheelchair.
  • Page 16 4 Trench Road, Mallusk, Newtownabbey Sidhil Business Park, Holmfield, Halifax West Yorkshire, HX2 9TN, GB BT36 4TY, Northern Ireland Drive DeVilbiss Healthcare Ltd provide these instructions for use and product markings. info@drivedevilbiss.co.uk | www.drivedevilbiss.co.uk Service & Maintenance Spares Customer Service...
