MX Conference Tables
Reference Number: 6TD00062

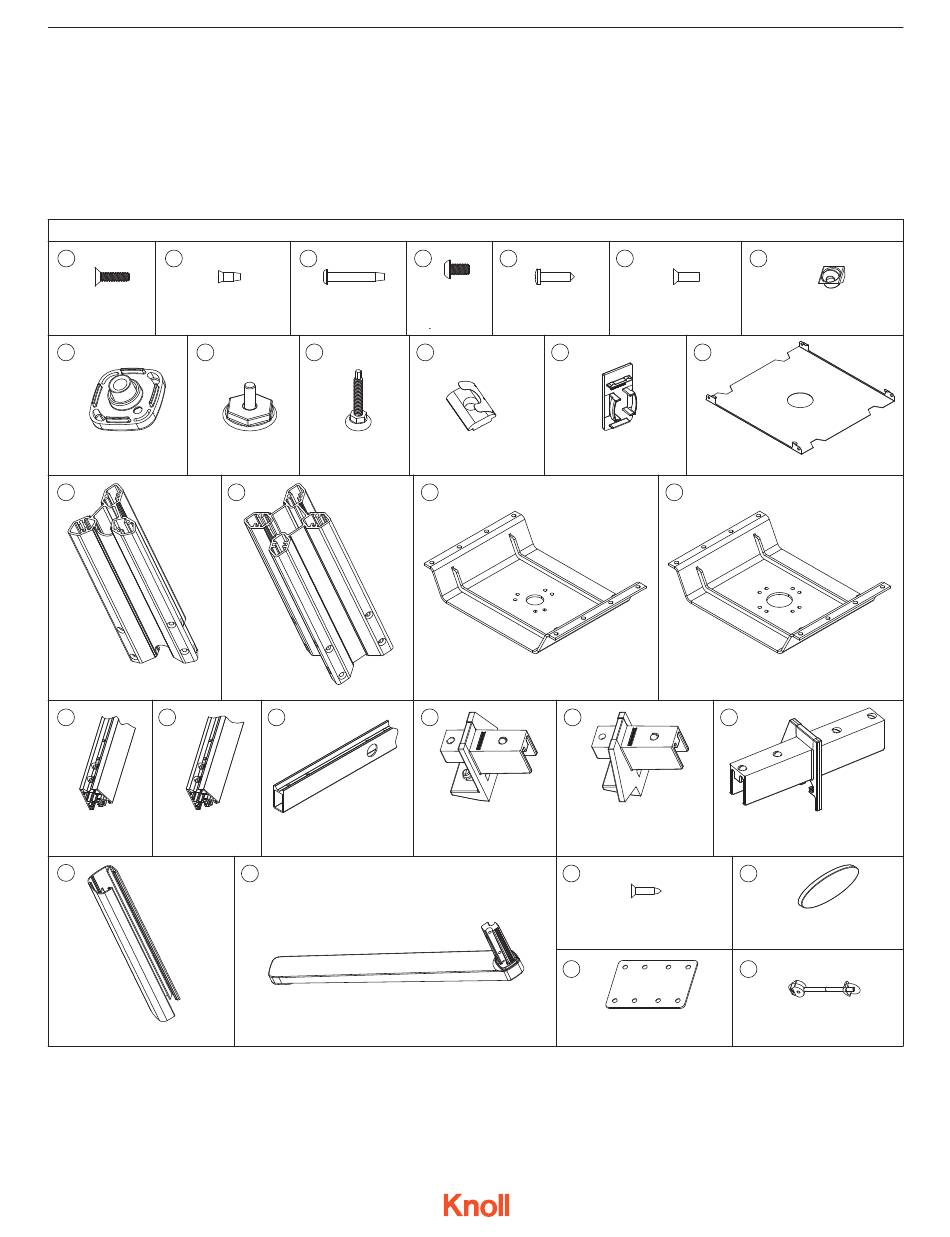

HARDWARE LIST
A
B
6TD40174
6TD4010201
SCR,FH,1/4-20X1
SCR,T-F,FL,1/4-20X5/8
H
J
6TD40033
6TD40036
GLIDE PAD
GLIDE
P
6TD40139XX
MX3 SPINE
T
T2
6TD40107XX
6TD40107XX
FRAME RAIL
FRAME RAIL
Y
6TD40145XX
SPINE COVER
Islands Collection by Knoll
®
October 2, 2020
C
6TD4008901
SCR,1/4-20X1.5,T-F
K
6TD40177
GLIDE
Q
6TD40141XX
MX4 SPINE
U
6TD4010801
FRAME END RAIL
Z
6TD40137
MX FOOT
6td00062_1_hardware.ai
Islands Collection by Knoll
D
E
6TD40175
SCR,BHSCS,
5134130
M8-1.25X14
SCR,SM PNP#14X1
L
M
6TD4002601
M8 T SLOT NUT
FRAME END CAP
R
6TD4017901
MX3 TROUGH MOUNT
V
W
6TD4002901L
6TD4002901R
LH FRAME
RH FRAME
END CONNECTOR
END CONNECTOR
AA
AC
Installation Instruction
®
F
G
5136120
SCR,
6TD4003101
MACH FLP 1/4-20X3/4
FRAME CONNECTOR PLUG
N
6TD4006601
MOUNT COVER
S
6TD4017902
MX4 TROUGH MOUNT
X
6TD4005601
FRAME INLINE CONNECTOR
AB
5118113
3TA403101
SCR,FLP #10X7/8
WOOD BISCUIT
AD
5340410
MEND PLATE
Part Number: 6TD00062
3TA403001
ZIP BOLT
Sheet 1
Advertisement
Table of Contents
Related Manuals for Knoll Islands 6TD00062
Summary of Contents for Knoll Islands 6TD00062
- Page 1 Islands Collection by Knoll Installation Instruction ® MX Conference Tables Reference Number: 6TD00062 HARDWARE LIST 6TD40175 5136120 6TD40174 6TD4010201 6TD4008901 SCR,BHSCS, 5134130 SCR, 6TD4003101 SCR,FH,1/4-20X1 SCR,T-F,FL,1/4-20X5/8 SCR,1/4-20X1.5,T-F M8-1.25X14 SCR,SM PNP#14X1 MACH FLP 1/4-20X3/4 FRAME CONNECTOR PLUG 6TD40033 6TD40036 6TD40177 6TD4002601...
- Page 2 Islands Collection by Knoll Installation Instruction ® MX Conference Tables Reference Number: 6TD00062 STEPS: Fig. 1 1. Assembly of MX-Base (Fig. 1) Align the glide pad, item (H), to the end of foot, item (Z), and secure into place using 2 (B) screws.
- Page 3 Islands Collection by Knoll Installation Instruction ® MX Conference Tables Reference Number: 6TD00062 Fig. 2 2. Assembly of table frame (Fig. 2 and Fig. 3) Orient the frame rail, item (T), as per Fig. 2A and Fig. 2C. Note: Skip to step 2.4 for all tables less than or equal to 120"...
- Page 4 Islands Collection by Knoll Installation Instruction ® MX Conference Tables Reference Number: 6TD00062 Fig. 4 3. Assembly / joining individual worksurfaces together (Fig. 4 and Fig. 5) Note: Step 3 is only for tables wider than 120". Ray worksurfaces upside down on a soft non scratching surface, rectilinear worksurfaces shown for example.
- Page 5 Islands Collection by Knoll Installation Instruction ® MX Conference Tables Reference Number: 6TD00062 4. Installation of assembled table frame with worksurface (Fig. 6) Fig. 6 Lay worksurface upside down on a soft non scratching surface, rectilinear worksurface shown for example.
- Page 6 Islands Collection by Knoll Installation Instruction ® MX Conference Tables Reference Number: 6TD00062 6. Installation of mount cover (Fig. 9 and Fig. 10) Fig. 9 Orient the mount cover, item (N), as per Fig. 9. Slide and center mount cover, item (N), into space above trough mount.
