X-Base Conference Table Assembly - Multi-Piece Top
Reference Number: 6TD00033

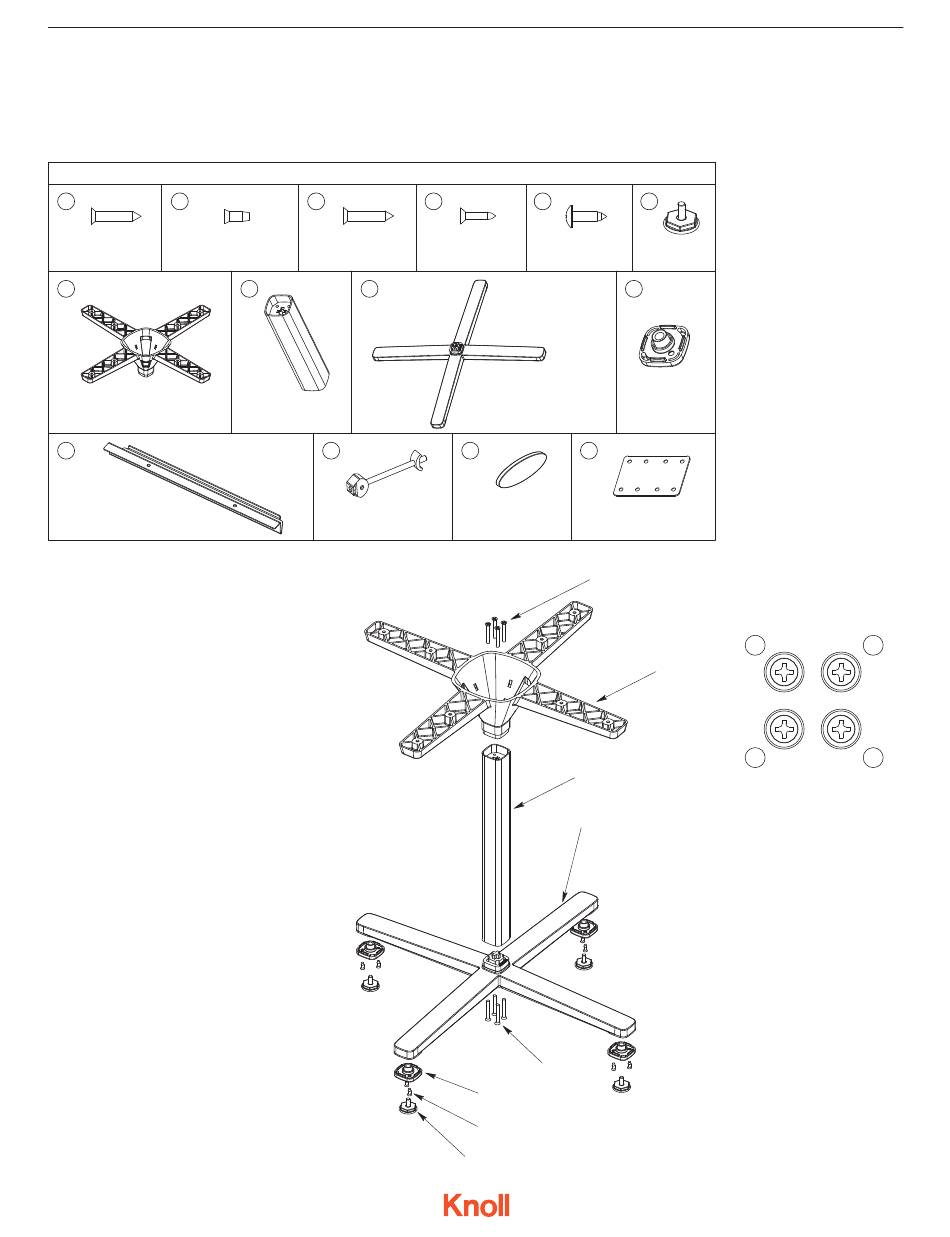

HARDWARE LIST
A
B
6TD40151
6TD4010201
SCR,FLP,1/4-20X2
SCR,T-F,FL,1/4-20X5/8
G
6TD4000801
TOP MOUNT (CONE)
L
1B53307XX
STIFFENER

1. Assembly of X-Base

(see Fig. 1 and Fig. 1A)
1.1 Align the glide pad, item (K), to the one
end of foot, item (J), and secure into
place using 2 (B) screws.
Repeat for all 4 ends.
1.2 Align the foot, item (J), to the one end of
leg, item (H), and secure into place using
4 (A) screws. (see Fig. 1A)
1.3 Assemble the glide, item (F), into the
threaded hole of the foot, item (J).
1.4 Reorient the leg assembly so that the
glide pad is facing downwards and the
open end is facing up.
1.5 Align the top mount, item (G), to the open
end of the leg assembly and secure into
place using 4 (A) screws.
Note: Please see Fig. 1A for fastening
sequence. Ensure all screws are
fully seated.
1.6 Repeat for all bases.
Islands Collection by Knoll
®
March 26, 2020
C
5134102
SCR,FLP,#14X1-1/4
H
J
6TD40052XX
LEG
M
3TA403001
ZIP BOLT
Fig. 1
6td00033_hardware.ai
Islands Collection by Knoll
D
E
5118113
5122218
SCR,FLP #10X7/8
SCR,TRP#14X7/8
6TD4001501 - 29" FOOT
6TD4001502 - 35" FOOT
N
P
3TA403101
WOOD BISCUIT
A
H
J
A
K
B
F
6td00034_1.ai
Installation Instruction
®
F
6TD40036
GLIDE
K
6TD40033
GLIDE PAD
5340410
MEND PLATE
Fastening sequence
4
G
2
Part Number: 6TD00033

Tools Needed

Drill gun
Fig. 1A
1
3
Sheet 1
