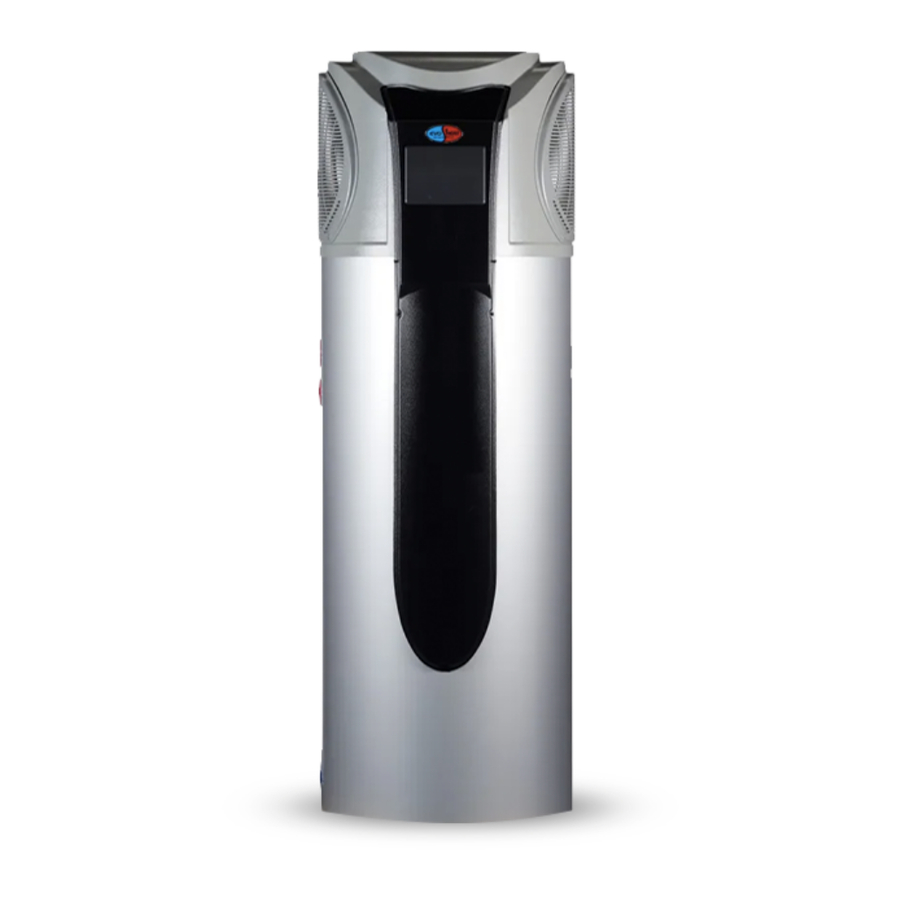

evoheat EVO270 Quick Start Manual

Hide thumbs Also See for EVO270:

Use your mobile phone to scan code to register your warranty online.

INSTALLATION LOCATION

1. Install the system on a level concrete pad or suitable HWS base.

2. Ensure the air inlet and outlet are clear from any obstructions.

(consult the manual for clearances)

1. Connect the hot water outlet, and cold water inlet plumbing and associated valves in accordance with all

local regulations and applicable standards.

2. Install the supplied Pressure Temperature Relief (PTR) valve.

3. Connect a condensate line and run to appropriate drain.

4. Lag (insulate) all plumbing as per local regulations.

1. Install an isolation switch within 3m of the unit.

2. Run the supplied electrical cable from the unit to the isolation switch.

3. Connect the Isolation switch with appropriate cable to a dedicated 15amp circuit at the switchboard.

FOR ADDITIONAL INFORMATION PLEASE REFER TO THE OWNERS MANUAL

Table of Contents

Do you have a question about the EVO270 and is the answer not in the manual?

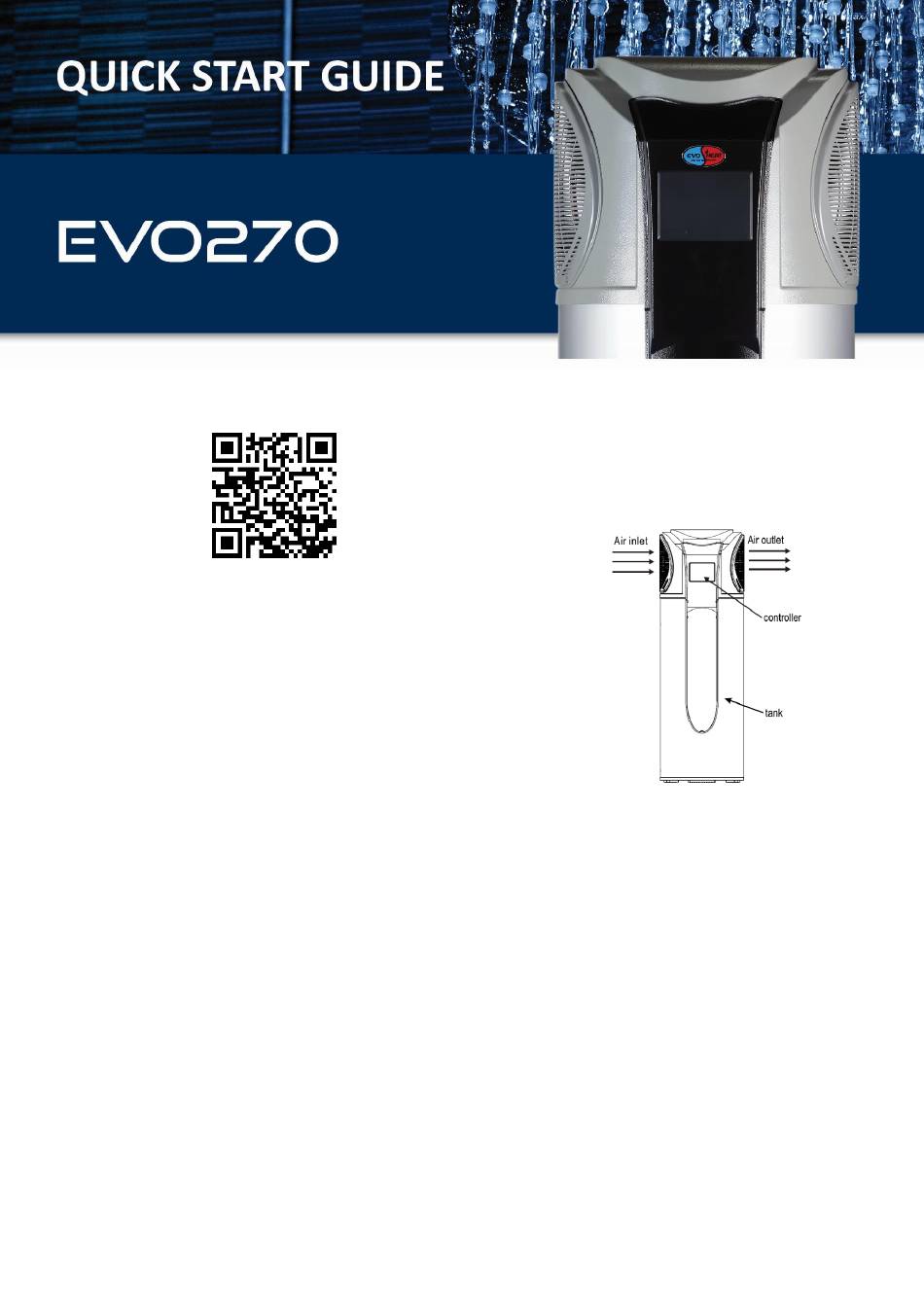

Page 1 REGISTER YOUR WARRANTY ONLINE Use your mobile phone to scan code to register your warranty online. INSTALLATION LOCATION 1. Install the system on a level concrete pad or suitable HWS base. 2. Ensure the air inlet and outlet are clear from any obstructions. (consult the manual for clearances) PLUMBING CONNECTIONS 1.
Page 2 COMMISSIONING 1. Press and hold for one second to power on the unit. 2. Press the arrows to adjust the desired temperature (recommended @ 60°C) 3. To set the time: a. Press once so the clock starts flashing, b. Press again until just the hour starts flashing, c.
