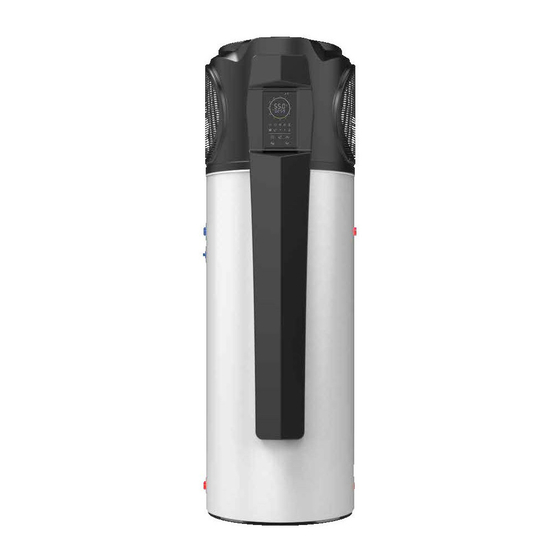

evoheat Evo270-1 Installation & Operation Manual
Hide thumbs
Also See for Evo270-1:
- Quick start manual (2 pages) ,
- Installation & operation manual (18 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for evoheat Evo270-1
Summary of Contents for evoheat Evo270-1
-
Page 2: Table Of Contents
Evo270 Hot Water Heat Pump Manual Contents 1. Introduction _________________________________________________________________________________ 2 2. Quick Start Guide _____________________________________________________________________________ 3 3. Unit Specifications ____________________________________________________________________________ 4 3.1 Dimensions & Technical Data ________________________________________________________________ 4 4. Safety Instructions ____________________________________________________________________________ 5 5. Installation __________________________________________________________________________________ 5 5.1 Pipeline Connection ________________________________________________________________________ 5 5.2 Handling &... -
Page 3: Introduction
The below recommendations are based on heat pump only mode. Higher occupancy levels can be achieved with the Hydroboost heater function activated. Household Size Model Up to 6 People Evo270-1 Notice: High usage of hot water and other factors could affect this recommendation. Please consult your supplier if you have special requirements. -
Page 4: Quick Start Guide
For adjustment of timers or activating vacation mode, please refer to our online tutorials at: www.evoheat.com.au/tech-support Do not drill any fixings or attachments into the outer casing of the tank. Drilling into the outer casing of the tank... -
Page 5: Unit Specifications
3.1 Dimensions & Technical Data DIMENSIONS (mm) 1992 1443 1211 1111 Model Evo270-1 Heating capacity 3.6 Heat Pump Water tank capacity Power input 0.94 Heat Pump Running current 3.90 Heat Pump Power Supply... -
Page 6: Safety Instructions
Fingers and objects must not be placed into the fan of the unit. Children should be kept clear of the • appliance. • In the event of the unit malfunctioning, shut off the power supply and contact your supplier or EvoHeat. • Power the unit off during cleaning. •... -
Page 7: Handling & Transportation
Evo270 Hot Water Heat Pump Manual 5.2 Handling & Transportation As a rule, the unit should be stored and/or transported in its shipping container in an upright position and without water charge. For transport over short distances, and provided due care is exercised, an inclination angle of up to 30 degrees is permitted. -
Page 8: Cable Connection
Evo270 Hot Water Heat Pump Manual 7. This heat pump must be installed by a licensed contractor. Do not attempt to install yourself if you are not qualified. The Evo 270 must be installed to conform to all relevant Australian Standards and Industry Codes including but not limited to: a. -
Page 9: Operation
Evo270 Hot Water Heat Pump Manual 6. Operation Check out EvoHeat’s YouTube channel for videos that walk through the controller usage and different settings. www.youtube.com/evoheat/playlists 6.1 Main Controller Interface ICON NAME FUNCTION ON/OFF Turn the unit on or off. Select options to increase values... -
Page 10: Functions Of The Controller
Evo270 Hot Water Heat Pump Manual 6.2 Functions of the Controller 6.2.1 Turning the Unit ON & OFF Press and hold for 0.5 seconds in the standby screen of the controller to turn the unit on. The main display will now show the water outlet temperature. -
Page 11: Target Temperature Checking & Setting
Evo270 Hot Water Heat Pump Manual 6.2.3 Target Temperature Checking & Setting In the standby or running interface, press once to check the target temperature of the outlet water. Press again to change the target temperature. After making changes to the desired temperature, press to confirm or to cancel, then return to the previous screen. -
Page 12: Setting The Time And Date
Evo270 Hot Water Heat Pump Manual 6.2.5 Setting the Time and Date In the standby or running interface, press once, the hour digit will flash. Press the to change the hour setting, then press to confirm. Press the to change the minute setting, then press to confirm. -
Page 13: Setting The Timer
Evo270 Hot Water Heat Pump Manual 6.2.6 Setting the Timer Timer settings can be set in standard mode, economic mode, auto mode and fast heating mode. Note: there are two types of timing settings: touch and button. The unit will run during the lit time periods and stop on the dim areas. Touch Press and hold for 2 seconds (the timer display will flash) -
Page 14: Cancelling The Timer
Evo270 Hot Water Heat Pump Manual 6.2.7 Cancelling the Timer To cancel a timer once it has been set, hold down the CLOCK button for 2 seconds until the timer display begins flashing (as you would set the timer). Press the POWER button while the timer is flashing to cancel it. -
Page 15: Keyboard Locking
Evo270 Hot Water Heat Pump Manual 6.2.9 Keyboard Locking Press and hold for 5s to lock the keyboard. To unlock, press and hold for 5s again. 6.2.10 Force Defrosting In the shutdown state, press for 10 seconds to enable the forced defrosting function. The defrosting symbol will light up. -
Page 16: Troubleshooting
Evo270 Hot Water Heat Pump Manual 7. Troubleshooting EvoHeat have developed a YouTube Channel where you will find useful videos regarding using the controller and potential errors. Be sure to have a look to see if the answer to your question is there: https://www.youtube.com/channel/evoheat... -
Page 17: Appendix
Evo270 Hot Water Heat Pump Manual 8. Appendix 8.1 PCB Description COMP OUT6 DI06 DI05 OUT2 DI04 DI03 OUT1 DI01 485-B 485-A RESET AT：Ambient temperature BTT：Bottom of tank temperature COMP：Compressor CT：Coil temperature 4V： 4 way valve EEV：Electronic expand valve BRN BLU Y/G FM：Fan motor HP：High pressure protection HT：Heater... -
Page 18: Caution
Evo270 Hot Water Heat Pump Manual 8.2 Caution 1. To reduce the risk of excessive pressures and temperatures in this water heater, install temperature and pressure protective equipment required by local codes and no less than a combination temperature and pressure relief valve certified by a nationally recognized testing laboratory that maintains periodic inspection of production of listed equipment or materials, as meeting the requirements for Relief Valves and Automatic Gas Shutoff Devices for Hot Water Supply Systems, ANSIZ21.22. -
Page 19: Use Of The P&T Valve
Continuous leakage of water from the valve may indicates problem with the water heater. 8.5 Using the Overheating Protector Return the unit to its normal operational status it will have to be re set manually. Please contact EvoHeat for a service if this occurs. -
Page 20: Maintenance
It is recommended a major five (5) year service be conducted on the Evo 270. Warning: Servicing of a water heater must only be carried out by qualified EvoHeat personnel. Phone EvoHeat Service on 1300 859 933 for our closest Accredited Service Agent. -
Page 21: Warranty
Warranty Registration EvoHeat highly recommend customers to complete their warranty details online to ensure efficient warranty claim processing. To register your warranty, scan our QR Code or head to our website and fill in the Warranty Registration Form: https://evoheat.com.au/warranty-registration/...
