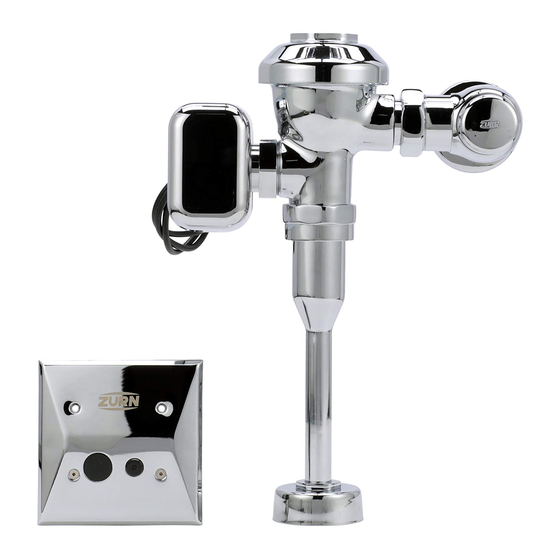

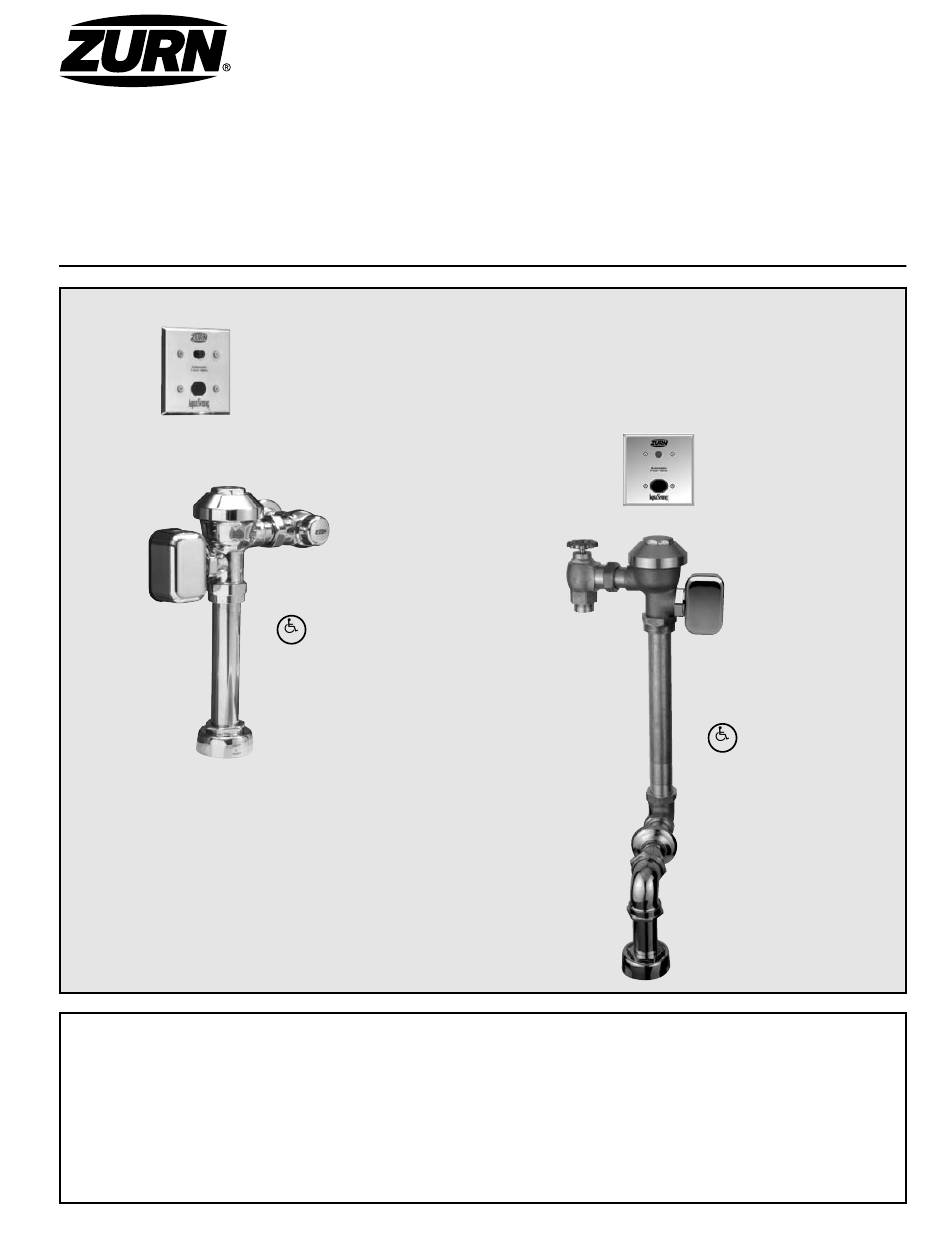

ZEMS6000AV
ADA
LIMITED WARRANTY
AquaSense
Closet ZEMS Series
Automatic Systems Sensor-Operated
AquaVantage Flushometer
Installation, Operation,
Maintenance, and Parts Manual
Patented and Patents Pending
Sensor-Operated Concealed Systems
ZEMS6140AV
ZEMS6142AV
ZEMS6152AV
AV
™
®
ZEMS6142AV
ADA
FV38-WCS • Page 1
Advertisement
Table of Contents
Related Manuals for ZURN AquaSense AV Closet ZEMS Series
Summary of Contents for ZURN AquaSense AV Closet ZEMS Series
- Page 1 AquaSense ™ ® Closet ZEMS Series Automatic Systems Sensor-Operated AquaVantage Flushometer Installation, Operation, Maintenance, and Parts Manual Patented and Patents Pending Sensor-Operated Concealed Systems ZEMS6140AV ZEMS6142AV ZEMS6152AV ZEMS6000AV ZEMS6142AV Sensor-Operated Exposed Systems ZEMS6000AV ZEMS6000AV-2 ZEMS6000AV-3 LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase. Decorative finishes warranted for one year.
- Page 2 • Sensor units should not be located across from each other or in close proximity to highly reflective surfaces. The Zurn AquaVantage is designed to operate over the entire pressure range recommended by plumbing fixture manufac turers and will produce a metered flush when activated.
- Page 3 INSTALLATION STEP 1 – Install Receptacle (Figure 4) Install Receptacle for the Zurn Power Converter in a con venient location. An optional mini junction box (P6000-MJ) is recommended to distribute power to each sensor loca tion. It is also recommended...
- Page 4 STEP 3 – Control Stop Installation (Figure 6) Figure 5 Install the Zurn control stop valve with “Siphon Gard” back check protection (and wall escutcheon on exposed Flushometer installa - SUPPLY FLANGE tions) to the water supply line with the outlet positioned as required.
- Page 5 Double check that power converter polarity is correct. STEP 7 – Mount Automatic Sensor (Figure 2) Install the Zurn Automatic Sensor into the 2-gang elec tri cal box 1-3/8 REF using two (2) long screws provided. Ensure that wires from sensor case point up.
- Page 6 CAUTION: Range adjustment rotates only 1/2 turn total from min. to max. Do not exceed this or sensor will be damaged. Stand in front of the Zurn Automatic Sensor at the desired distance; the red light will illuminate when you are within range.
- Page 7 2. A quiet flushing cycle is achieved. Automatic 24-Hour Flush: The sensor will provide an automatic After adjustment: Replace the Zurn stop cap screw cover. flush 24 hours after the last user. The automatic flush can be manually activated/deactivated at any time.
- Page 8 Specify Series Valve Body CP (specify valve type) ZURN INDUSTRIES, LLC COMMERCIAL BRASS OPERATION, 5900 ELWIN BUCHANAN DRIVE, SANFORD, NC, U.S.A. 27330 PHONE: 1-800-997-3876 FAX: 919/775-3541 www.zurn.com ZURN INDUSTRIES LIMITED 3544 NASHUA DRIVE, MISSISSAUGA, ONTARIO L4V 1L2 PHONE: 905/405-8272 FAX: 905/405-1292 ©...
