ZURN plumbSMART ZEMS-IS Series Installation, Operation, Maintenance And Parts Manual

ZURN plumbSMART ZEMS-IS Series Installation, Operation, Maintenance And Parts Manual

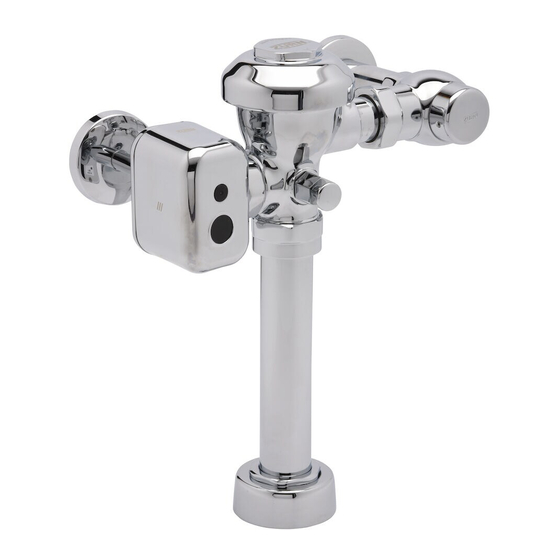

Aquaflush, aquavantage and metrovantage sensor-operated flushometer for water closets and urinals

Advertisement

ZEMS6000-IS-W1
ZEMS6000AV-IS-W1
NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase.
Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are notified in writing of such defect and the
goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in accordance with instructions. We shall
not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages. The sole and exclusive
remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall determine the suitability of the product for his
intended use and the purchaser assumes all risk and liability whatever in connection therewith. Where permitted by law, the implied warranty of merchantability
is expressly excluded. If the products sold hereunder are "consumer products," the implied warranty of merchantability is limited to a period of three years and
shall be limited solely to the replacement of the defective goods. All weights stated in our catalogs and lists are approximate and are not guaranteed.
ZEMS6003-IS-W1
ZEMS6003AV-IS-W1
LIMITED WARRANTY
AquaFlush
, AquaVantage
®
and MetroVantage
Connected ZEMS-IS Series
Sensor-Operated Flushometer
for Water Closets and Urinals
Installation, Operation, Maintenance,
and Parts Manual
ZEMS6200-IS-W1
,
®
®
ZEMS6203-IS-W1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the plumbSMART ZEMS-IS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ZURN plumbSMART ZEMS-IS Series

  • Page 1 AquaFlush , AquaVantage ® ® and MetroVantage ® Connected ZEMS-IS Series Sensor-Operated Flushometer for Water Closets and Urinals Installation, Operation, Maintenance, and Parts Manual ZEMS6000-IS-W1 ZEMS6200-IS-W1 ZEMS6000AV-IS-W1 ZEMS6003-IS-W1 ZEMS6203-IS-W1 ZEMS6003AV-IS-W1 NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov LIMITED WARRANTY...
  • Page 2 This Page Intentionally Left Blank...
  • Page 3: Specifications

    Overview: Zurn’s exposed, hardwired automatic sensor flush valve for retrofit and new construction, and designed for modern commercial restrooms. Zurn smart and connected flush valve systems for water closets and urinals are performance-engineered delivering a superior user experience in both form and function.
  • Page 4: Prior To Installation

    The following information refers to Zurn Smart Connected Products, types: -W1. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference intended for use in non-residential/non-domestic environments.
  • Page 5: Parts List

    Parts List Valve Body Endpoint Sweat Solder Connection Control Stop with Cast Wall Flange with Vandal Cap (optional with AquaFlush) Flush Connection Flush Connection for Urinal for Water Closet ZEMS-IS-W1 Actuator Required Tools Phillips Head Flat Head 1-3/4” Screwdriver Screwdriver Smooth Jawed Measuring Tape Wrench...
  • Page 6 Sweat Solder Adapter Installation Instructions NOTE: Before installation, turn off water supplies to existing fixture and remove flushometer if replacing an existing device. 1. Measure distance from finished wall to the center line of the fixture 2. Slide threaded sweat solder adapter onto water supply pipe until spud.
  • Page 7 Flush Valve Installation Instructions Prior to attaching flush valve tailpiece to control stop, inspect and Control Stop verify that the O-ring seal is located within the O-ring groove at the tailpiece. Ensure that the locking nut and locking snap ring O-Ring Groove are also present on the tailpiece.
  • Page 8 Endpoint Installation Instructions 1. Cut out through wall opening as shown below. 2. Pick a location within a 14-foot radius of through-hole in Step 1. 3. Secure Endpoint behind the wall or above the ceiling with VHS tape or screws. 4.
  • Page 9 Connecting Endpoint to Power Instructions Main power should be turned off before performing these steps. These steps should only be performed by a licensed electrician. • The P6900-HW6 Hardwire Power Converter can be used to power up to six pairs of Connected ZEMS-IS Actuator & Endpoint. •...
  • Page 10: Care And Cleaning Instructions

    Customized Sensor Range Setting The ZEMS-IS-W1 is factory set to accommodate most closet and urinal installations. If this factory setting does not accommodate your specific environment, follow the steps below to customize your range settings for your specific ZEMS-IS-W1 model. CALIBRATION INSTRUCTIONS FOR ZEMS-IS-W1 1.
  • Page 11 6-9 VDC is required. Verify connection to actuator. Repeated valve activation Insufficient DC power level (less then 6 VDC). Upgrade the -HW6 power supply to the new ZURN power supply when power is provided. (approximately 7.6 VDC). Insufficient volume of Stop valve is not open enough.
  • Page 12 Call customer support to verify signal strength. (Move Gateway closer range. to connected devices.) Compression fitting or nuts are loose. Tighten nuts or fittings. Push button assembly is leaking. Piston O-ring is damaged. Replace piston assembly. For further assistance with troubleshooting, visit https://plumbsmart.zurn.com/app/training FV696 Rev. B 07/29/20 Page 10...
  • Page 13: Part Identification

    AquaFlush & AquaVantage Repair Kits ® ® 2  3  8  18  19  4  20  7  21  28  22  36  27  23  29  6  24  26  25  10  13  5  30  14  12  35  31  16  11  15  1  9  17  32 ...
  • Page 14 MetroVantage Repair Kits ® 4  18  19  3  20  21  28  22  8  2  23  36  7  27  25  26  6  24  29  13  14  5  12  15  30  11  16  35  10  31  17  1  9  32  33  34  Part Identification Valve Body 13.
  • Page 15 This Page Intentionally Left Blank...
  • Page 16 ZURN INDUSTRIES, LLC W. Freshwater Way, Milwaukee, WI U.S.A. 53204 · Ph. 1-855-ONE-ZURN, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 ZURN.COM Rev. B Date: 07/29/20 C.N. No. 142895 Prod.
