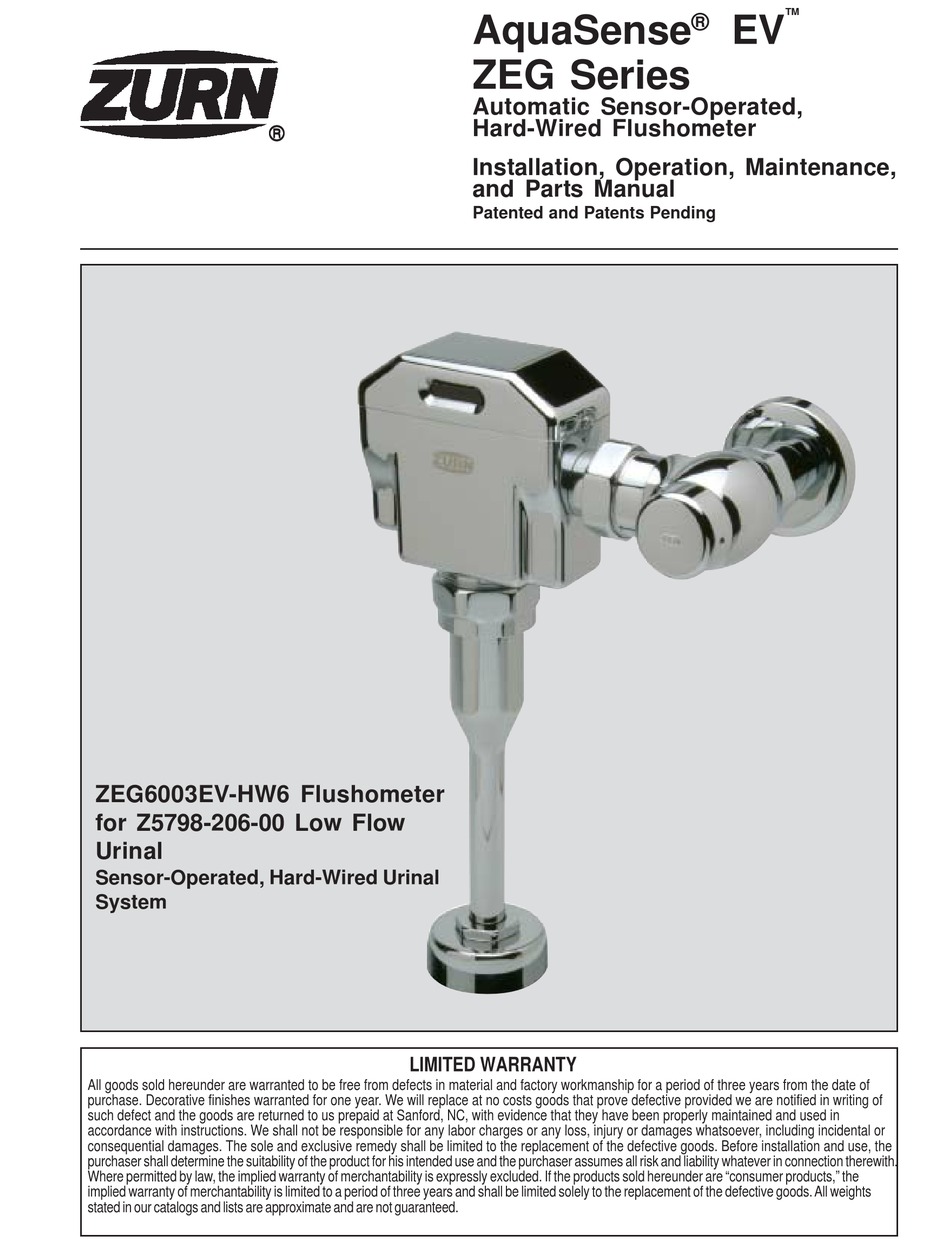

ZURN AquaSense EV ZEG Series Installation, Operation, Maintenance And Parts Manual

ZURN AquaSense EV ZEG Series Installation, Operation, Maintenance And Parts Manual

Automatic sensor-operated, hard-wired flushometer; for z5798-206-00 low flow urinal sensor-operated, hard-wired urinal system

Advertisement

Quick Links

ZEG6003EV-HW6 Flushometer
for Z5798-206-00 Low Flow
Urinal
Sensor-Operated, Hard-Wired Urinal
System
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of
purchase. Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are notified in writing of
such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in
accordance with instructions. We shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or
consequential damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and use, the
purchaser shall determine the suitability of the product for his intended use and the purchaser assumes all risk and liability whatever in connection therewith.
Where permitted by law, the implied warranty of merchantability is expressly excluded. If the products sold hereunder are "consumer products," the
implied warranty of merchantability is limited to a period of three years and shall be limited solely to the replacement of the defective goods. All weights
stated in our catalogs and lists are approximate and are not guaranteed.
    

LIMITED WARRANTY

AquaSense
ZEG Series
Automatic Sensor-Operated,
Hard-Wired Flushometer
Installation, Operation, Maintenance,
and Parts Manual
Patented and Patents Pending
TM
®
EV

Advertisement

loading
Need help?

Need help?

Do you have a question about the AquaSense EV ZEG Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZURN AquaSense EV ZEG Series

  • Page 1: Limited Warranty

    ® AquaSense ZEG Series Automatic Sensor-Operated,      Hard-Wired Flushometer Installation, Operation, Maintenance, and Parts Manual Patented and Patents Pending ZEG6003EV-HW6 Flushometer for Z5798-206-00 Low Flow Urinal Sensor-Operated, Hard-Wired Urinal System LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase.
  • Page 2: Prior To Installation

    INSTALLATION 1.) Install the Zurn Power Converter in a convenient location near the flush valve, mounted in a 4 x 4 electrical box in accordance with local electrical codes. An optional mini junction box (P6000-MJ) is recommended to distribute power to multiple Pint Urinal Valves.
  • Page 3 3.) When all stops are connected to the water supply and water pressure is available, it is recommended that the supply piping be flushed to remove dirt, metal chips, etc., from system. A. Before the valve is installed, open each stop fully for a brief time and catch the water in a two gallon or larger bucket (Figure 3).
  • Page 4 9.) Wiring installation (see fig. 8) A. Remove the two cover retaining screw and lift the flushometer top cover. B. Run fish tape through the valve, cover tube, and wall to the power supply or optional junction box. C. Pull a pair of 18 ga. wires from the power supply or junction box back through the wall into the valve.
  • Page 5 Open the stop valve to wide open position using the ad- justing screw (S) on the front of the stop valve. The water 1. Place the Zurn “Magic Magnet” (N) on the left hand side of volume will never have to be adjusted with the stop valve the flat top surface of the valve and move around until the LED as on some conventional urinal installations.
  • Page 6: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE Problem Possible Cause Diagnosis Solution No lights are visible in Electronics fault. Run through reset procedure the sensor eye. below. Valve does not flush. Valve could be sensing a Hold a flat object at an acute Reduce sensing range close by surface or reflections angle to the valve and see if it Eliminate reflective...
  • Page 7 Phone: 1-800-997-3876 ♦ ♦ ♦ ♦ ♦ Fax: 919-775-3541 ♦ ♦ ♦ ♦ ♦ World Wide Web: www.zurn.com In Canada: ZURN INDUSTRIES LIMITED ♦ ♦ ♦ ♦ ♦ 3544 Nashua Drive ♦ ♦ ♦ ♦ ♦ Mississauga, Ontario L4V1L2 ♦ ♦ ♦ ♦ ♦ Phone: 905-405-8272 Fax: 905-405-1292...
