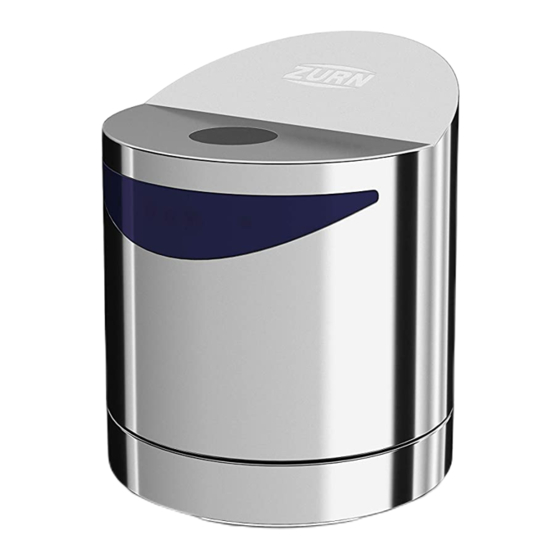

ZURN AquaSense ZER-TM Series Installation, Operation, Maintenance And Parts Manual
Automatic sensor-operated gear driven type flushometer retrofit kit
Hide thumbs
Also See for AquaSense ZER-TM Series:
Advertisement
Quick Links
Universal Kit
Water Closet Kit:
ZERK-C-ONE-TM
ZERK-C-HET-TM
ZERK-C-WS1-TM
ZERK-C-DF-TM
Urinal Kit:
ZERK-U-ULF-TM
ZERK-U-EWS-TM
ZERK-U-WS1-TM
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase.
Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are notified in writing of such defect and the
goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in accordance with instructions. We shall
not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages. The sole and exclusive
remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall determine the suitability of the product for his
intended use and the purchaser assumes all risk and liability whatever in connection therewith. Where permitted by law, the implied warranty of merchantability
is expressly excluded. If the products sold hereunder are "consumer products," the implied warranty of merchantability is limited to a period of three years and
shall be limited solely to the replacement of the defective goods. All weights stated in our catalogs and lists are approximate and are not guaranteed.
NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT
AquaSense
ZER-TM Series
Automatic Sensor-Operated Gear
Driven Type Flushometer Retrofit Kit
Installation, Operation, Maintenance
and Parts Manual
1.1 gpf
1.28 gpf
1.6 gpf
1.1/1.6 gpf
0.125 gpf
0.5 gpf
1.0 gpf
Power Options:
Lithium Metal Battery (Standard)
LIMITED WARRANTY
®
Sloan Kit
Water Closet Kit:
ZERK-C-ONE-TM-S
ZERK-C-HET-TM-S
ZERK-C-WS1-TM-S
ZERK-C-DF-TM-S
Urinal Kit:
ZERK-U-ULF-TM-S
ZERK-U-EWS-TM-S
ZERK-U-WS1-TM-S
1.1 gpf
1.28 gpf
1.6 gpf
1.1/1.6 gpf
0.125 gpf
0.5 gpf
1.0 gpf
Advertisement
Related Manuals for ZURN AquaSense ZER-TM Series
Summary of Contents for ZURN AquaSense ZER-TM Series
- Page 1 AquaSense ® ZER-TM Series Automatic Sensor-Operated Gear Driven Type Flushometer Retrofit Kit Installation, Operation, Maintenance and Parts Manual Universal Kit Sloan Kit Water Closet Kit: Water Closet Kit: ZERK-C-ONE-TM 1.1 gpf ZERK-C-ONE-TM-S 1.1 gpf ZERK-C-HET-TM 1.28 gpf ZERK-C-HET-TM-S 1.28 gpf ZERK-C-WS1-TM 1.6 gpf ZERK-C-WS1-TM-S...
- Page 2 ZER-TM Series Retrofit Kit Package Contents Valve Head 3/32”, 5/64” Allen Wrench Strap Wrench Alternative Locking Ring Diaphragm Kit Handle Cap Seal Magic Batteries Magnet Handle Nut Required Additional Tools Flat Head Smooth Jawed Screwdriver Wrench FV687 Rev. A 12/16/2019 Page 1...
-
Page 3: Specifications
• Installer is responsible for ensuring the product is installed and conforms to all plumbing codes and ordinances. • Do not convert or modify this Zurn product yourself. All warranties will be voided. • Water supply lines must be sized according to building designer in order to provide adequate water supply for each fixture. - Page 4 Retrofit Valve Head - STEP 1 NOTE: Before installation, turn off water supplies to existing fixture and remove flushometer if replacing an existing device. STEP 1.1 STEP 1.2 Remove vandal-resistant cover with allen wrench from control Press and hold the handle for 3 seconds for manual flush valve stop (if present) and turn control stop clockwise to turn off the or press manual override button for Automatic flush valve to water supply.
- Page 5 Replacing Handle Nut - STEP 2 (If applicable) STEP 2.1 STEP 2.2 Uninstall existing handle on manual flush valve or actuator on Place handle cap seal in handle nut. Then turn handle nut clockwise automatic flush valve by turning the handle nut counter-clockwise by hand to a full stop, then tighten it for at least a third with a smooth jawed wrench (not supplied).
- Page 6 Battery Installation - STEP 3 STEP 3.5 STEP 3.6 Insert four batteries (supplied) into battery housing and ensure the See notes below and reverse steps 3.1 - 3.4 to reinstall battery batteries are inserted in the correct orientation. Use AA Lithium cap and valve head onto valve body.
- Page 7 Sensor Angle Adjustment (when necessary) STEP 1 Turn off control stop using a flat head screw driver turning clockwise (See Figure 16). Then, use the electronic override button to flush the water out of the flush valve. Electronic STEP 2 Override Mark down Locking ring original position relative to valve body Button...
- Page 8 STEP 2 Place the Zurn MagicMagnet (supplied) on top flat surface (see ® Figure 18). Once magnet is in place, the red LED illuminate continuously on for 5 seconds.
-
Page 9: Care And Cleaning Instruction
The Dual Flush model must be paired with a fixture with a flush volume range that includes 1.1 to 1.6 gallons per flush. For a list of recommended bowls, please refer to our website, www.zurn.com, or speak with your local Zurn rep. - Page 10 [24 / 48 / 72] hours after no usage trap exchange timing. (default is OFF). For further assistance with troubleshooting, visit http://www.zurn.com/ FV687 Rev. A 12/16/2019 Page 9...
- Page 11 ZER-TM Series Repair Kits Part Identification Valve Body Vacuum Breaker Duckbill Vacuum Breaker Tube Vacuum Breaker Tube Nut Spud Nut Spud Friction Washer Spud Sleeve Spud Escutcheon Tailpiece 10. Snap Ring 11. Tailpiece O-Ring 12. Locking Nut 13. Stop Body 14.
- Page 12 ZURN INDUSTRIES, LLC 511 W. Freshwater Way, Milwaukee, WI U.S.A. 53204 · Ph. 1-855-ONE-ZURN, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 ZURN.COM Rev. A Date: 12/16/2019 C.N. No. 142246 Prod.
