Sensor-Operated, Battery-Powered
Closet/Urinal Systems
ZER6000AV-CPM
ZER6000AV-WS1-CPM
ZER6001AV-CPM
ZER6001AV-WS1-CPM
ZER6003AV-CPM
ZER6003AV-WS1-CPM
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of
purchase. Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are notified in writing of
such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in
accordance with instructions. We shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or
consequential damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and use, the
purchaser shall determine the suitability of the product for his intended use and the purchaser assumes all risk and liability whatever in connection therewith.
Where permitted by law, the implied warranty of merchantability is expressly excluded. If the products sold hereunder are "consumer products," the
implied warranty of merchantability is limited to a period of three years and shall be limited solely to the replacement of the defective goods. All weights
stated in our catalogs and lists are approximate and are not guaranteed.

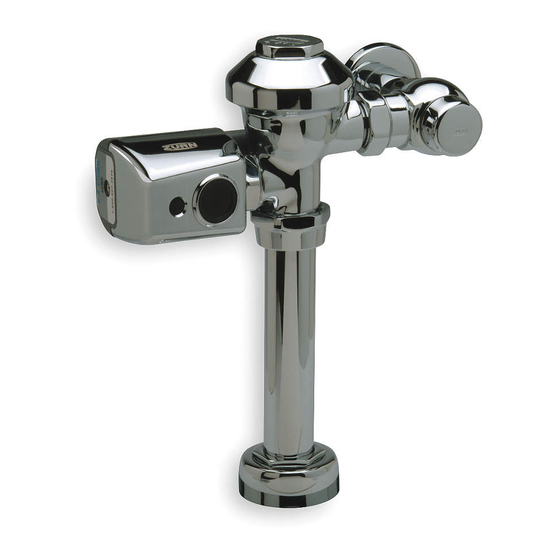

AquaSense
ZER Series
Automatic Sensor-Operated,
Battery-Powered Flushometer
Installation, Operation, Maintenance,
and Parts Manual
Patented and Patents Pending
ZER6000AV-CP
ZER6000AV-CPM
LIMITED WARRANTY
®
AV
ZER6003AV-CP
ZER6003AV-CPM
Advertisement
Related Manuals for ZURN AquaSense AV ZER Series
Summary of Contents for ZURN AquaSense AV ZER Series
- Page 1 ® AquaSense ZER Series Automatic Sensor-Operated, Battery-Powered Flushometer Installation, Operation, Maintenance, and Parts Manual Patented and Patents Pending ZER6000AV-CP ZER6000AV-CPM Sensor-Operated, Battery-Powered Closet/Urinal Systems ZER6003AV-CP ZER6000AV-CPM ZER6003AV-CPM ZER6000AV-WS1-CPM ZER6001AV-CPM ZER6001AV-WS1-CPM ZER6003AV-CPM ZER6003AV-WS1-CPM LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase.
-
Page 2: Prior To Installation
IMPORTANT: PRIOR TO INSTALLATION • ALL PLUMBING IS TO BE INSTALLED IN ACCORDANCE WITH APPLICABLE CODES AND REGULATIONS. Prior to installing the ZER Flushometer, install the • WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN items listed below: ADEQUATE VOLUME OF WATER FOR EACH FIXTURE. •... - Page 3 6.) ACTIVATION Using supplied battery compartment wrench, remove battery compartment from the E-Z Flush™ unit. Load batteries into compartment tray (note position of batteries in tray), and reinstall battery tray into the E-Z Flush unit. Secure tray with battery compartment wrench. The last three turns of the wrench will activate the E-Z Flush unit.
- Page 4 Before the supply water is turned on, be sure all stop valves to 10.) The ZER flush valves are preset for fixture volume as marked on the valve cartons. The valve does not require regulation for the flush valves are closed off tight. The stop valves can be opened and closed by using the adjusting screw located at the variation in water pressure within its operating range.
-
Page 5: Wiring Diagram
WIRING DIAGRAM Delay Flush = User must leave the sensor range for 3 seconds before a flush is generated. 24 Hour Flush = Unit will automatically flush 24 hours after the last use. TROUBLE SHOOTING GUIDE PROBLEM CAUSE SOLUTION Yellow L.E.D. light Front of Object Lock Sensor is Remove item covering sensor or adjust flashes 3 times... - Page 6 PHONE: 1-800-997-3876 FAX: 919-775-3541 WORLD WIDE WEB: WWW.ZURN.COM IN CANADA: ZURN INDUSTRIES LIMITED 3544 NASHUA DRIVE MISSISSAUGA, ONTARIO L4V1L2 PHONE: 905-405-8272 FAX: 905-405-1292 FV237 Rev.
