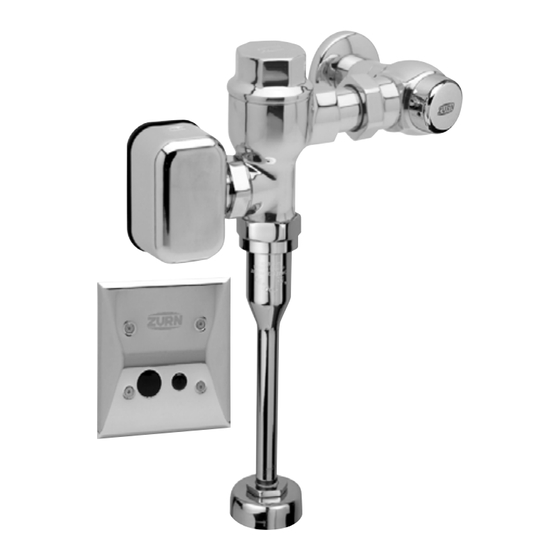

  • Page 1 AquaFlush , AquaVantage ® ® and MetroVantage ® Connected ZEMS Series Sensor-Operated Flushometer for Water Closets and Urinals Installation, Operation, Maintenance, and Parts Manual ZEMS6000-W1 ZEMS6200-W1 ZEMS6000AV-W1 ZEMS6003-W1 ZEMS6203-W1 ZEMS6003AV-W1 NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov LIMITED WARRANTY...
  • Page 2 This Page Intentionally Left Blank...
  • Page 3: Specifications

    Overview: Zurn’s exposed, hardwired automatic sensor flush valve for retrofit and new construction, and designed for modern commercial restrooms. Zurn smart and connected flush valve systems for water closets and urinals are performance-engineered delivering a superior user experience in both form and function.
  • Page 4: Prior To Installation

    The following information refers to Zurn Smart Connected Products, types: -W1. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference intended for use in non-residential/non-domestic environments.
  • Page 5: Parts List

    Parts List Valve Body ZEMS-W1 Electronics Enclosure and Endpoint Sweat Solder Connection with Cast Wall Flange Flush Connection Flush Connection for Urinal for Water Closet Control Stop with Vandal Cap (optional with AquaFlush) Sensor Power Supply Cable ZEMS-W1 Actuator Required Tools Phillips Head Flat Head 1-3/4”...
  • Page 6 Sweat Solder Adapter Installation Instructions NOTE: Before installation, turn off water supplies to existing fixture and remove flushometer if replacing an existing device. 1. Measure distance from finished wall to the center line of the fixture 2. Slide threaded sweat solder adapter onto water supply pipe until spud.
  • Page 7 Flush Valve Installation Instructions Prior to attaching flush valve tailpiece to control stop, inspect and Control Stop verify that the O-ring seal is located within the O-ring groove at the tailpiece. Ensure that the locking nut and locking snap ring O-Ring Groove are also present on the tailpiece.
  • Page 8 Actuator Installation Instructions 1. Cut out through wall openings as shown. 3 3⁄4 3± ⁄ Height of Stop Valve ⁄ Hole ⁄ Through Wall Center line of Flush Valve Top Of Fixture 2. Run “fish tape” from top 3-3/4” by 4” opening to bottom 1-3/4”...
  • Page 9 Sensor and Endpoint Installation Instructions Main power should be turned off before performing these steps. These steps should only be performed by a licensed electrician. • The P6900-HW6 Hardwire Power Converter can be used to power up to six pairs of Connected ZEMS Actuator and Sensor/Endpoint •...
  • Page 10 6. Feed motor cable from actuator to enclosure. Connect the 7. Mount the box into drywall cutout. Hold enclosure to the wall motor cable from actuator to the large three-wire motor cable and tighten the two included fasteners attached to blue box. connector exiting the backside of enclosure.
  • Page 11 Customized Sensor Range Setting The ZEMS-W1 is factory set to accommodate most closet and urinal installations. If this factory setting does not accommodate your specific environment, follow the steps below to customize your range settings for your specific ZEMS-IS-W1 model. CALIBRATION INSTRUCTIONS FOR ZEMS-W1 1.
  • Page 12 6-9 VDC is required. Verify connection to actuator. Repeated valve activation Insufficient DC power level (less then 6 VDC). Upgrade the -HW6 power supply to the new ZURN power supply when power is provided. (approximately 7.6 VDC). Insufficient volume of Stop valve is not open enough.
  • Page 13 Call customer support to verify signal strength. (Move Gateway closer range. to connected devices.) Compression fitting or nuts are loose. Tighten nuts or fittings. Push button assembly is leaking. Piston O-ring is damaged. Replace piston assembly. For further assistance with troubleshooting, visit https://plumbsmart.zurn.com/app/training FV666 Rev. F 11/11/22 Page 11...
  • Page 14 AquaFlush , AquaVantage and MetroVantage Repair Kits ® ® ® 9  8    1 4   1 5 7  3  4  6  31  5  32  41  33  34  1  35  36  16  37  39  17  40  38  26  18  27  48 ...
  • Page 15: Part Identification

    Part Identification AquaFlush & AquaVantage Valve Body 17. Vaccum Breaker Tube Nut 34. Stop Cap MetroVantage Valve Body 18. Spud Nut 35. Snap Cap Screw Cover Vacuum Breaker Friction Washer 19. Spud Friction Washer 36. Vandal-Resistent Control Stop Cover Vacuum Breaker Insert 20.
