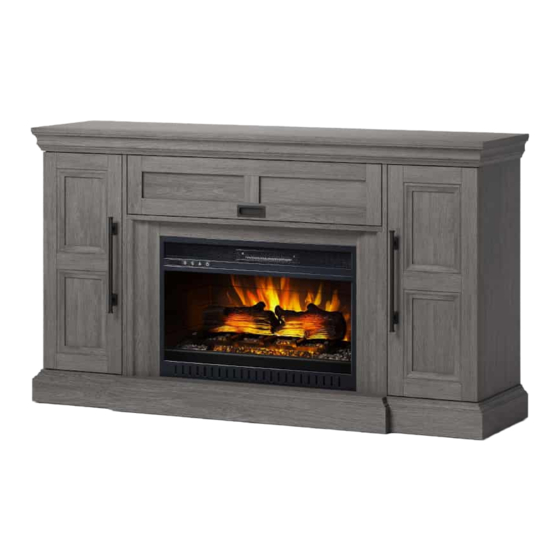

Media Fireplace Console
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Or visit our website 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Model # BJFP60-3
ADULT ASSEMBLY REQUIRED
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-06-15
OR
1-866-942-5362
Rev. 0001-A
LOT NUMBER:
DATE PURCHASED: /
/
Advertisement
Related Manuals for Whalen BJFP60-3
Summary of Contents for Whalen BJFP60-3
- Page 1 LOT NUMBER: DATE PURCHASED: / Media Fireplace Console Model # BJFP60-3 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your...
-
Page 2: Special Note
G E N E R A L I N F O R M A T I O N , T I P S A N D T R I C K S 1. Please read the Assembly Instructions prior to assembling this product. 2. - Page 3 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Fireplace Console (Qty. 1) B- Adjustable Shelf (Qty. 4) C- Side Wood Door Panel (Qty. 4) D- Middle Wood Door Panel (Qty.
- Page 4 Assembly Instructions NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit. 1. Insert the Shelf Supports (1) into the desired holes in the sides of the compartments. Make sure you place the four Shelf Supports in the same level so the shelf is not tilted.
- Page 5 Assembly Instructions NOTE: To prevent your TV from tipping, you must follow these instructions if you place a TV on top of your console. Otherwise, skip to “Step 3”. 2. Remove the paper backing from the Acrylic Stopper (2), then properly align the Acrylic Stopper into the cut-out on the acrylic stopper template on the top panel.
- Page 6 Assembly Instructions Glass door panel Wood door panel Wood door panel Glass door panel NOTE: The glass door panels are pre-attached when shipping. You can keep as is or interchange as the desired configuration. 4. To change door panels, loosen the screws on the inside of the door and rotate the clips to remove the panel.
- Page 7 Assembly Instructions Tools required: Phillips screwdriver, stud finder, pencil, tape measure, power drill and 1/8” drill bit. 5. Ask for assistance to position the console at the desired location against a wall. If necessary, adjust the pre-attached floor levelers at the bottom of the unit to correct the tilt and level the doors. 6.
- Page 8 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following safety information. This unit is not intended for use with CRT TVs. The top surface maximum weight capacity is 80 lbs. (36.3 kg) and maximum load 70 in.
-
Page 9: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture. - Page 10 Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. ...
