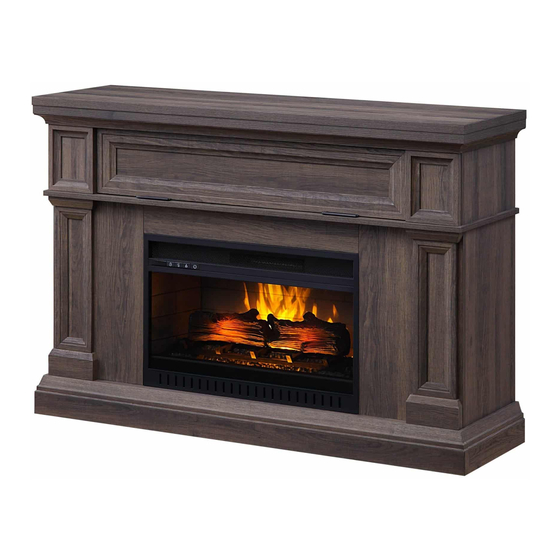

Eastwood 52" Fireplace Console
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Model # MNFP52EW26CA
# MNFP52EW26CB
ADULT ASSEMBLY REQUIRED
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2020-05-25
1-866-942-5362
Rev. 0001-A
LOT NUMBER:
DATE PURCHASED: /
/
Advertisement
Related Manuals for Whalen MNFP52EW26CA
Summary of Contents for Whalen MNFP52EW26CA
- Page 1 LOT NUMBER: DATE PURCHASED: / Eastwood 52” Fireplace Console Model # MNFP52EW26CA # MNFP52EW26CB ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your...
- Page 2 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-abrasive surface. You will need the parts identified on page 3 and 4 of this instruction manuals. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE WIPED OFF WITH A DAMP CLOTH.
-
Page 3: Parts And Hardware List
Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (Qty. 1) B-Top Corner Extension (Qty. 1) C- Media Shelf (Qty. 1) D- Upper Side Panel (Qty. 2) E- Upper Left Side Molding (Qty. - Page 4 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. Fireplace Insert Remote Control with Battery (1) Cam Lock (2) Cam Bolt (Qty. 1) (Qty. 1) (Qty. 41+2 extra) (Qty.
- Page 5 Assembly Instructions NOTE: DO NOT fully tighten all cam locks and bolts until you finish assembling all parts. Once assembled, go back and fully tighten all cam locks and bolts. 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch.
- Page 6 Assembly Instructions 4. Glue the Long Wood Dowels (3) into the inner holes on the Lower Side Panels (G) and Middle Crossbar (L) as shown. H/ I 5. Attach one Lower Side Panel (G) to the Lower Left Side Molding (H) by engaging three Cam Locks (1). (Refer to page 2 on Cam Lock system operation supplement).
- Page 7 Assembly Instructions 7. Using the pilot holes as a guide, attach two Mending Plates (13) to the Middle Crossbar (L) with one 12 mm Screw (4) per plate. Wood Dowels face upward H/ I 8. Attach the Middle Crossbar (L) between the Lower Side Moldings (H and I) by inserting two 12 mm Screws (4) through the installed Mending Plates (13) and screw into the Lower Side Moldings (H and I).
- Page 8 Assembly Instructions 9. Ask for assistance to lay down the assembly at its back edge. 10. Glue the Long Wood Dowels (3) into the inner holes on the Lower Side Panels (G) and Lower Side Moldings (H and I) as shown. 11.
- Page 9 Assembly Instructions 13. Screw two Floor Levelers (17) into the threaded holes on the Base (M). 14. Stand the assembled unit upright. 15. Place the Media Shelf (C) onto the inserted wood dowels on the vertical panels (G, H and I) and Middle Crossbar (L) properly and fasten it in place by engaging eleven Cam Locks (1).
- Page 10 Assembly Instructions 16. Securely screw six Cam Bolts (2) into the designated small holes on the Media Shelf (C) using a Phillips screwdriver. 17. Glue the Long Wood Dowels (3) into the inner holes on the Upper Side Panels (D) and Upper Partition Panels (J and K) as shown.
- Page 11 Assembly Instructions The pilot holes face outward 18. Glue two Long Wood Dowels (3) into the inner holes on each Magnetic Catch Holder (S). 19. Attach the Magnetic Catch Holders (S) to the Upper Side Moldings (E and F) respectively with two 50 mm Screws (9).
- Page 12 Assembly Instructions Magnetic catches face outward 21. Using the pilots holes as guide, fasten the Magnetic Catches (11) to the Magnetic Catch Holders ( S) with four 15 mm Pan Head Screws (6). The magnetic catches are located at the upper D/E/F 22.
- Page 13 Assembly Instructions Cam Locks face inward 23. Attach the Upper Partition Panels (J and K) to the Top Panel (A) by engaging four Cam Locks (1). 24. Insert the 32 mm Bolts (20) with the Washers (21 and 22) through the cleats on the Upper Partition Panels (J and K) and screw into the Upper Side Moldings (E and F).
- Page 14 Assembly Instructions D/E/F 25. Ask for assistance to position the previous assembly onto the Media Shelf (C) and attach it place by engaging six Cam Locks (1). 26. Now, go back and securely tighten all the cam locks and screws. Make sure that all the parts are tight and there are no gaps between the parts.
- Page 15 Assembly Instructions The hooks point towards the strike plates 28. Using the pilot holes as a guide, fasten two Hooks (14) to the corners of the Barrister Door (N) with four 15 mm Screws (5) as shown. 29. Attach two Handles (12) to the Barrister Door (N) with four 15 mm Screws (5).
- Page 16 Assembly Instructions Glass Door Insert Wood Door Insert Speaker Grill NOTE: The barrister door is shipped with the Glass Door Insert (U). You can keep the door as it is or interchange with the Wood Door Insert (O) or Speaker Grill (P) depending on your configuration. 30.
- Page 17 Assembly Instructions H/ I 32. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. drag the insert across the Base (M) as it may scratch the unit. 33. Using the pilot holes as a guide, fit two Metal Brackets (15) to the side plates of the fireplace insert and fasten them into place with four 12 mm Pan Head Screws (23).
- Page 18 Assembly Instructions 35. Glue two Short Wood Dowels (10) into the large holes on the Long Corner Support (Q). 36. Attach the Short Corner Support (R) to the Long Corner Support (Q) with three 25 mm Screws (8). Tightly fasten the screws with a Philips screwdriver. 37.
- Page 19 Assembly Instructions 39. Attach the Long Corner Support (Q) to the Top Corner Extension (B) with one 12 mm Bolt (19). 40. Align and attach the assembled corner extension to the Top Panel (A) and the Base (M) with four 12 mm Bolts (19).
- Page 20 Assembly Instructions NOTE: To prevent your TV from tipping, you must install the acrylic TV stopper if you place a flat panel television on the top panel. Otherwise, skip to step 42. 41. Remove the paper backing from the Acrylic Stopper (18), then properly align the acrylic stopper into the cut-out on the acrylic stopper template on the Top Panel (A).
- Page 21 Assembly Instructions Tools required (not provided): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit. 43. Ask for assistance to position the assemble fireplace at the desired location against a wall. If necessary, adjust the pre-attached Floor Levelers at the bottom of the Base (M) to level the unit. 44.
-
Page 22: Care And Maintenance
Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. ... -
Page 23: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations.
