Whalen WMFP60FH-9 Instructions Manual

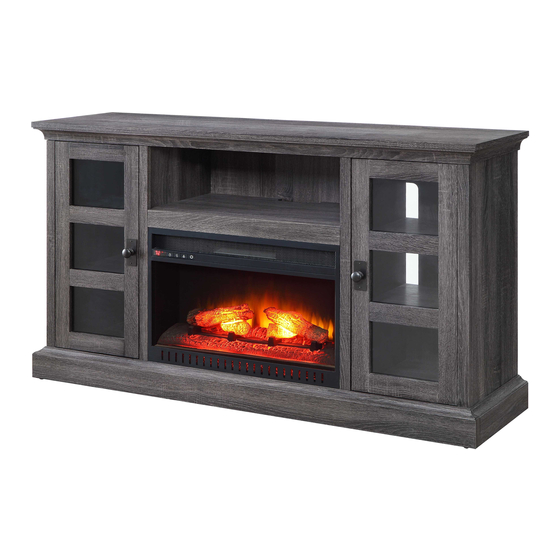

60" fall harvest fireplace
Hide thumbs

Advertisement

Quick Links

Download this manual
60" Fall Harvest Fireplace
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Manufacturing
Stock # WMFP60FH-9
ADULT ASSEMBLY REQUIRED
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or e-mail your request to parts@whalenfurniture.com
Date 2015-05-24 Rev. 1 Factory: HECFUR
1-866-942-5362
www.whalenstyle.com
Page 1
LOT NUMBER:
DATE PURCHASED: /
Factory No. 16015
/

Advertisement

loading

Related Manuals for Whalen WMFP60FH-9

Summary of Contents for Whalen WMFP60FH-9

  • Page 1 LOT NUMBER: DATE PURCHASED: / 60" Fall Harvest Fireplace Stock # WMFP60FH-9 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions...
  • Page 2 Stock # WMFP60FH-9 I M P O R T A N T I N F O R M A T I O N MANUFACTURER: Whalen Furniture Manufacturing CATALOG: 60" Fall Harvest Fireplace (WMFP60FH-9) DATE OF MANUFACTURE: June 2015 MADE IN CHINA FITS UP TO MOST 70”...
  • Page 3 Stock # WMFP60FH-9 Important Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non- abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.

  • Page 4: Parts And Hardware List

    Stock # WMFP60FH-9 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (1) B- Bottom Panel (1) C- Left Side Panel (1) E- Left Partition Panel (1)
  • Page 5 Stock # WMFP60FH-9 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. (1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel (37+1 extra)
  • Page 6 Stock # WMFP60FH-9 Assembly Instructions Cam Bolt (31 used in this step) ② 1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a carpeted floor or the empty carton to avoid any scratch.
  • Page 7 Stock # WMFP60FH-9 Assembly Instructions Wood Dowel Cam Lock (6 used in this step) (9 used in this step) ③ ① 3. Insert two Wood Dowels (3) into the inner holes on the end of Left Partition Panel (E). Tap in with a rubber mallet, if necessary.
  • Page 8 Stock # WMFP60FH-9 Assembly Instructions Wood Dowel Cam Lock (4 used in this step) (5 used in this step) ③ ① 6. Align and attach the Base Rear Stretcher (L) to the Bottom Panel (B) with four wood dowels (3) and five cam locks (1).
  • Page 9 Stock # WMFP60FH-9 Assembly Instructions Cam Lock Wood Dowel (4 used in this step) (4 used in this step) ① ③ 7. Insert four Wood Dowels (3) into the inner holes of Fixed Shelf (H) at both ends. 8. Align and attach the assembled Fixed Shelf (H) between the Left and Right Partition Panels (E and F) (3) keep the Middle Crossbar (I) facing the bottom edge, using four Cam Locks (1) as shown.
  • Page 10 Stock # WMFP60FH-9 Assembly Instructions Wood Dowel M4 x 38 mm Screw (4 used in this step) (4 used in this step) ⑤ ③ 9. Insert four Wood Dowels (3) into the bottom inner holes of assembled Partition Panels (E and F) and attach them to the Bottom Panel (B) with four 38 mm Screws (5) as shown.
  • Page 11 Stock # WMFP60FH-9 Assembly Instructions Magnetic Catch M3 x 15 mm Screw (2 used in this step) (4 used in this step) ⑥ ⑩ 10. Using the pilot holes as a guide, attach one Magnetic Catch (10) to each Partition Panel (E and F) with two 15 mm Screws (6) as shown.
  • Page 12 Stock # WMFP60FH-9 Assembly Instructions Cam Bolt (6 used in this step) ② 11. Securely screw the Cam Bolts (2) into the designated small holes on Side Panels (C and D) as shown. 1-866-942-5362 Please call for replacement parts or assistance:...
  • Page 13 Stock # WMFP60FH-9 Assembly Instructions Wood Dowel M4 x 38 mm Wood Screw (4 used in this step) (4 used in this step) ⑤ ③ 12. Insert two Wood Dowels (3) into the center holes of one Side Skirting (K) and fasten it to the Left Side Panel (C) with two 38 mm Wood Screws (5).
  • Page 14 Stock # WMFP60FH-9 Assembly Instructions Cam Lock Wood Dowel (6 used in this step) (6 used in this step) ① ③ 14. Insert six Wood Dowels (3) into the large end holes on the Bottom Panel (B) and Back Bottom Stretcher (L).
  • Page 15 Stock # WMFP60FH-9 Assembly Instructions Cam Lock Wood Dowel (5 used in this step) (4 used in this step) ① ③ 17. Align and attach the Base Front Stretcher (M) to the Bottom Panel (B) by using four wood dowels (3) and five cam locks (1).
  • Page 16 Stock # WMFP60FH-9 Assembly Instructions M4 x 38 mm Wood Screw (4 used in this step) ⑤ 18. Fasten the Front Stretcher (M) to the Side Panels (C and D) with four 38 mm Wood Screws (5). 1-866-942-5362 Please call for replacement parts or assistance:...
  • Page 17 Stock # WMFP60FH-9 Assembly Instructions Wood Dowel M4 x 38 mm Wood Screw (4 used in this step) (8 used in this step) ⑤ ③ 19. Align and attach the Front Skirting (J) to the Base Front Stretcher (M) by using four wood dowels (3) and eight 38 mm Wood Screws (5) as shown.
  • Page 18 Stock # WMFP60FH-9 Assembly Instructions Wood Dowel Cam Lock (8 used in this step) (8 used in this step) ③ ① 20. Insert eight Wood Dowels (3) into the top inner holes on the vertical panels (C, D, E and F). Position the Top Panel (A) onto the inserted Wood Dowels (3) and fasten it in place with eight Cam Locks (1).
  • Page 19 Stock # WMFP60FH-9 Assembly Instructions M3 x 12 mm Screw Metal Bracket (4 used in this step) (2 used in this step) ④ ⑨ 21. Stand the assembled unit upright. 22. Fasten the Middle Crossbar (I) to the Partition Panel Moldings (G) by attaching two Metal Brackets (9) at the joints, using two 12 mm Screws (4) per Bracket.
  • Page 20 Stock # WMFP60FH-9 Assembly Instructions M3 x 15 mm Washer Head Screw (37 used in this step) ⑦ 23. Now, go back and securely tighten all the Cam Locks and Wood Screws. Make sure all the parts are tight and there are no gaps between the parts. This will help keep the unit square.
  • Page 21 Stock # WMFP60FH-9 Assembly Instructions Shelf Support (16 used in this step) ⑪ 26. Insert eight Shelf Supports (11) into the desired holes in the sides of each compartment. Make sure that you place the four Shelf Supports in the same level so the shelf is not tilted. Tilt and rest the Adjustable Shelves (P) onto the Shelf Supports (11).
  • Page 22 Stock # WMFP60FH-9 Assembly Instructions Knob Knob Bolt Cam Lock Cover (2 used in this step) (2 used in this step) (20 used in this step) ⑭ ⑬ ⑫ 27. Attach the Knob (13) to the outside of each Door (N and O) with the provided Knob Bolt (14).
  • Page 23 Stock # WMFP60FH-9 Assembly Instructions Electric Firebox 32. Lift the Fireplace Insert carefully into the back of the assembled mantel and center it in the opening. drag the insert across the Bottom Panel (B) as it may scratch the unit.
  • Page 24 Stock # WMFP60FH-9 Assembly Instructions M7 x 50 mm Shoulder Screw (2 used in this step) ⑧ 33. Align and attach the Firebox Support (S) to the Bottom Panel (B) by screwing two 50 mm Shoulder (8) through the countersunk holes and screw into place.
  • Page 25 Stock # WMFP60FH-9 Assembly Instructions Acrylic Stopper (1 used in this step) ⑮ NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat panel television directly on the console. 34. Remove the paper backing of acrylic stopper (15), then properly align the acrylic stopper into the cut-out on the acrylic stopper template on the Top Panel (A).
  • Page 26 Stock # WMFP60FH-9 Assembly Instructions Tools required: Phillips screwdriver, Power Drill, 3/8” Drill Bit and Rubber Mallet. 36. sk for assistance to position the assemble fireplace at the desired location against a wall. If necessary, adjust the pre-attached Floor Levelers at the bottom of the Front Skirting (J) to level the unit. Now, follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach the tip-over restraints to the unit and the wall.

  • Page 27: Quality Guarantee

    Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
  • Page 28 IF YOU NEED TO ORDER ANY REPLACEMENT PARTS, PLEASE USE THE LIST BELOW 60" Fall Harvest Fireplace (WMFP60FH-9) *WMFP60FH-9-1-TP Top Panel *WMFP60FH-9-27-CLC Cam Lock Cover *WMFP60FH-9-2-LSP Left Side Panel *WMFP60FH-9-28-M13x12S M3 x 12 mm Screw *WMFP60FH-9-3-RSP Right Side Panel *WMFP60FH-9-29-M4x38WS...
