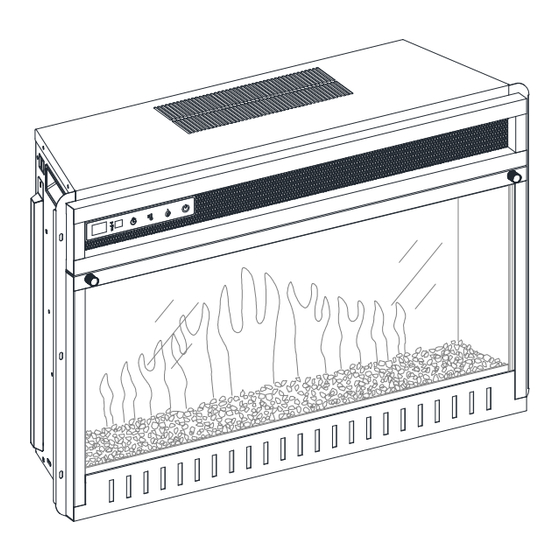

COMBINATION ELECTRIC FIREPLACE/HEATER
If you have any questions regarding the use of this unit or find that your fireplace/heater unit needs service, please do
not return the unit to the store where you purchased it. Instead, please contact our Customer Service Department and
have your instructions and parts list ready to provide the model name, part name, or factory number.
Or visit our website www.whalenfurniture.com / www.whalenstyle.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
We appreciate the trust and confidence you have placed in Whalen Furniture through the purchase of this electric fireplace/heater.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products
available for your home improvement needs. Thank you for choosing Whalen Furniture Manufacturing!
USE AND CARE GUIDE
Model # WH300-26C2D-RGBM
# WH300-26C2D-RGBMP
IMPORTANT
Whalen Customer Service
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or e-mail your request to: parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date: 2021-05-31
LOT NUMBER:
DATE PURCHASED:
THANK YOU
Rev 0001-A
/
/
Advertisement
Table of Contents
Related Manuals for Whalen WH300-26C2D-RGBM
Summary of Contents for Whalen WH300-26C2D-RGBM
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Whalen Furniture through the purchase of this electric fireplace/heater. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents .............. 2 Electrical Specifications............4 Safety Information ............2 Package Contents ..............4 Important Safety Information ...........2 Assembly................5 Grounding Instructions .............3 Operation ................. 6 FCC / IC Statement ..............3 Using the Remote Control ..........8 Care and Maintenance ............ -
Page 3: Grounding Instructions
Cover of Grounded Outlet Box CAN ICES-3 (B)/NMB-3(B). This Class B digital apparatus complies with Canadian ICES-003. Adapter Whalen Furniture Manufacturing Grounding Lug 1578 Air Wing Road, San Diego, CA 92154, USA Metal Screw 1-866-942-5362. -
Page 4: Pre-Installation
Pre-installation ELECTRICAL SPECIFICATIONS □ Voltage: 120 VAC, 60 Hz □ Watts: 1400 Watts PACKAGE CONTENTS Fireplace insert (Qty. 1) Decorative Glass (Qty. 1) Remote Control (Qty. 1) CAUTION: This insert has front panel made of GLASS! ALWAYS use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. -
Page 5: Assembly
Assembly Installing the decorative glass □ Loosen the two knobs in the top corners of the front glass assembly. □ Lift up and remove the front glass assembly from the firebox. NOTE: There are three clips on the bottom that hold the glass assembly on the unit. □... -

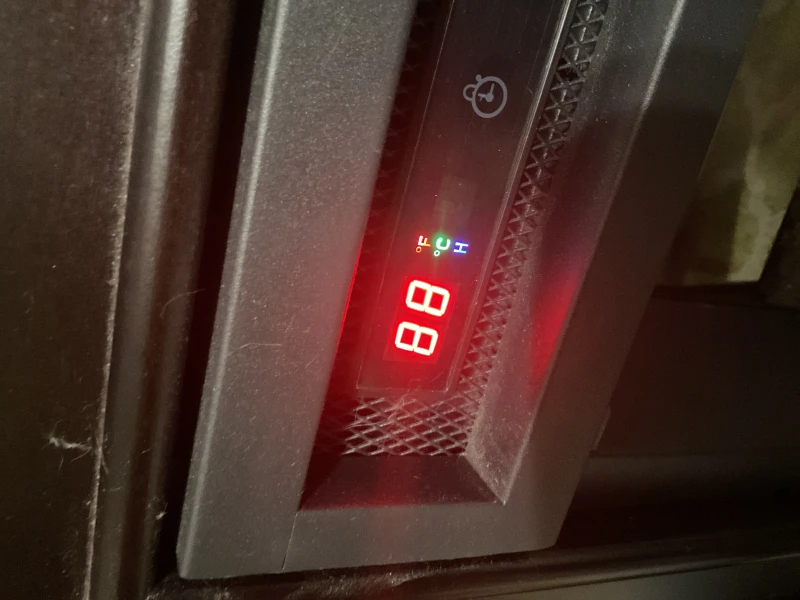

Page 6: Operation
Operation Identifying the control panel Understanding the function indicator □ The control panel is located on the top left corner of the □ The function indicator (2) has three square LEDs – red, green, fireplace/heater unit. and blue. The red LED indicates that the Fahrenheit temperature □... - Page 7 Operation (continued) Using the heater control □ Pressing the heater button (4) will turn on or off the heat and set the temperature in the thermostat. If you turn off the heater by the main power button (6), the unit will hold your preferred temperature setting in the memory. When the power is turned back on, the heater will turn on at the same setting.
-
Page 8: Using The Remote Control
Using the Remote Control Installing the battery The battery is supplied with the remote control. The first thing to do with the remote control is to remove the plastic sheet insulated the battery. For replacement battery, use lithium-based CR2025 battery. Please follow the sequence below to replace the battery. □... -
Page 9: Care And Maintenance
Care and Maintenance WARNING: Always disconnect from the power supply before cleaning the heater. First turn off the main power. Then remove the electrical plug from the wall outlet. WARNING: Do not use this fireplace insert if any part of it has been under water. -
Page 10: Troubleshooting
Troubleshooting Problem Solution Cannot adjust the temperature. □ To adjust temperature, turn on the Heater, then press the Heater button to enter Temperature Adjustment Mode. The LED display will start to flash, then press the Heater button repeatedly until you reach your desired temperature setting.
