Arduino® Nano 33 BLE
Product Reference Manual
SKU: ABX00030
Description
Nano 33 BLE is a miniature sized module containing a NINA B306 module, based on Nordic nRF52480 and
containing a Cortex M4F and a 9 axis IMU. The module can either be mounted as a DIP component (when
mounting pin headers), or as a SMT component, directly soldering it via the castellated pads.
Target areas:
Maker, enhancements, basic IoT application scenarios
1 / 15
Arduino® Nano 33 BLE / Rev. 01 - 26/11/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nano 33 BLE and is the answer not in the manual?

Questions and answers

Related Manuals for Arduino Nano 33 BLE

Summary of Contents for Arduino Nano 33 BLE

  • Page 1 SKU: ABX00030 Description Nano 33 BLE is a miniature sized module containing a NINA B306 module, based on Nordic nRF52480 and containing a Cortex M4F and a 9 axis IMU. The module can either be mounted as a DIP component (when mounting pin headers), or as a SMT component, directly soldering it via the castellated pads.
  • Page 2 - ±245/±500/±2000 dps angular rate full scale - 16-bit data output MPM3610 DC-DC Regulates input voltage from up to 21V with a minimum of 65% efficiency @minimum load More than 85% efficiency @12V 2 / 15 Arduino® Nano 33 BLE / Rev. 01 - 26/11/2021...

  • Page 3: Table Of Contents

    6.1 Declaration of Conformity CE DoC (EU) 6.2 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 6.3 Conflict Minerals Declaration 7 FCC Caution 8 Company Information 9 Reference Documentation 10 Revision History 3 / 15 Arduino® Nano 33 BLE / Rev. 01 - 26/11/2021...

  • Page 4: The Board

    Social distancing sensor: Keeping the social distance has become more important than ever to ensure your own, as well as others health. By connecting an Arduino Nano 33 BLE with a sensor and a LED display, you can create a wearable band that alerts you when you get too close to other people.

  • Page 5: Functional Overview

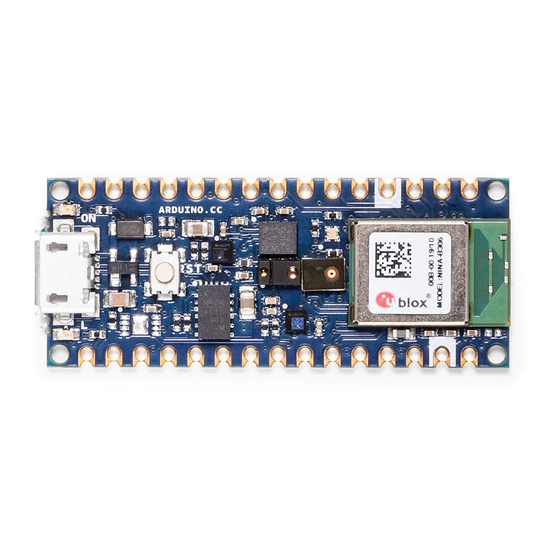

    Board topology Top Ref. Description Ref. Description NINA-B306 Module BLE 5.0 Module MP2322GQH Step Down Converter LSM9DS1TR Sensor IMU IT-1185AP1C-160G-GTR Push button Led L Led Power Bottom: Board topology bot 5 / 15 Arduino® Nano 33 BLE / Rev. 01 - 26/11/2021...

  • Page 6: Processor

    I C peripherals (IMU and Crypto). NOTE: As opposed to other Arduino Nano boards, pins A4 and A5 have an internal pull up and default to be used as an I C Bus so usage as analog inputs is not recommended.

  • Page 7: Board Operation

    3.1 Getting Started - IDE If you want to program your Arduino Nano 33 BLE while offline you need to install the Arduino Desktop IDE [1] To connect the Arduino Nano 33 BLE to your computer, you’ll need a Micro-B USB cable. This also provides power to the board, as indicated by the LED.

  • Page 8: Board Recover

    3.6 Board Recover All Arduino boards have a built-in bootloader which allows flashing the board via USB. In case a sketch locks up the processor and the board is not reachable anymore via USB it is possible to enter bootloader mode by double- tapping the reset button right after power up.

  • Page 9: Usb

    Selects Host/Device functionality Power Power Ground 4.2 Headers The board exposes two 15 pin connectors which can either be assembled with pin headers or soldered through castellated vias. 9 / 15 Arduino® Nano 33 BLE / Rev. 01 - 26/11/2021...
  • Page 10 GPIO; can be used as PWM D10/PWM Digital GPIO; can be used as PWM D11/MOSI Digital SPI MOSI; can be used as GPIO D12/MISO Digital SPI MISO; can be used as GPIO 10 / 15 Arduino® Nano 33 BLE / Rev. 01 - 26/11/2021...

  • Page 11: Debug

    The board measures are mixed between metric and imperial. Imperial measures are used to maintain 100 mil pitch grid between pin rows to allow them to fit a breadboard whereas board length is Metric Board layout 11 / 15 Arduino® Nano 33 BLE / Rev. 01 - 26/11/2021...

  • Page 12: Certifications

    6.2 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 Arduino boards are in compliance with RoHS 2 Directive 2011/65/EU of the European Parliament and RoHS 3 Directive 2015/863/EU of the Council of 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

  • Page 13: Conflict Minerals Declaration

    Arduino® Nano 33 BLE 6.3 Conflict Minerals Declaration As a global supplier of electronic and electrical components, Arduino is aware of our obligations with regards to laws and regulations regarding Conflict Minerals, specifically the Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502.

  • Page 14: Company Information

    Important: The operating temperature of the EUT can’t exceed 85℃ and shouldn’t be lower than -40℃. Hereby, Arduino S.r.l. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states.

  • Page 15: Revision History

    Arduino® Nano 33 BLE 10 Revision History Date Revision Changes 04/21/2021 General datasheet updates 15 / 15 Arduino® Nano 33 BLE / Rev. 01 - 26/11/2021...
