6 Board Topology

6.1 Front View

Ref. Description
U1 STM32H7 Dual Core Microcontroller IC
U3 AS4C4M16SA 8MB SDRAM IC
U5 LBEE5KL1DX-883 Wi-Fi®/Bluetooth® Module
U7 MP2269GD-Z Buck Converter 5V IC
JDIGITAL Digital input/output headers
SPI SPI headers
J2 USB 2.0 A Host
PB1 RESET Button
J14 Micro UFL connector
J6 Camera
DL2 RGB SMLP34RGB2W3 Common anode LED
9 / 21

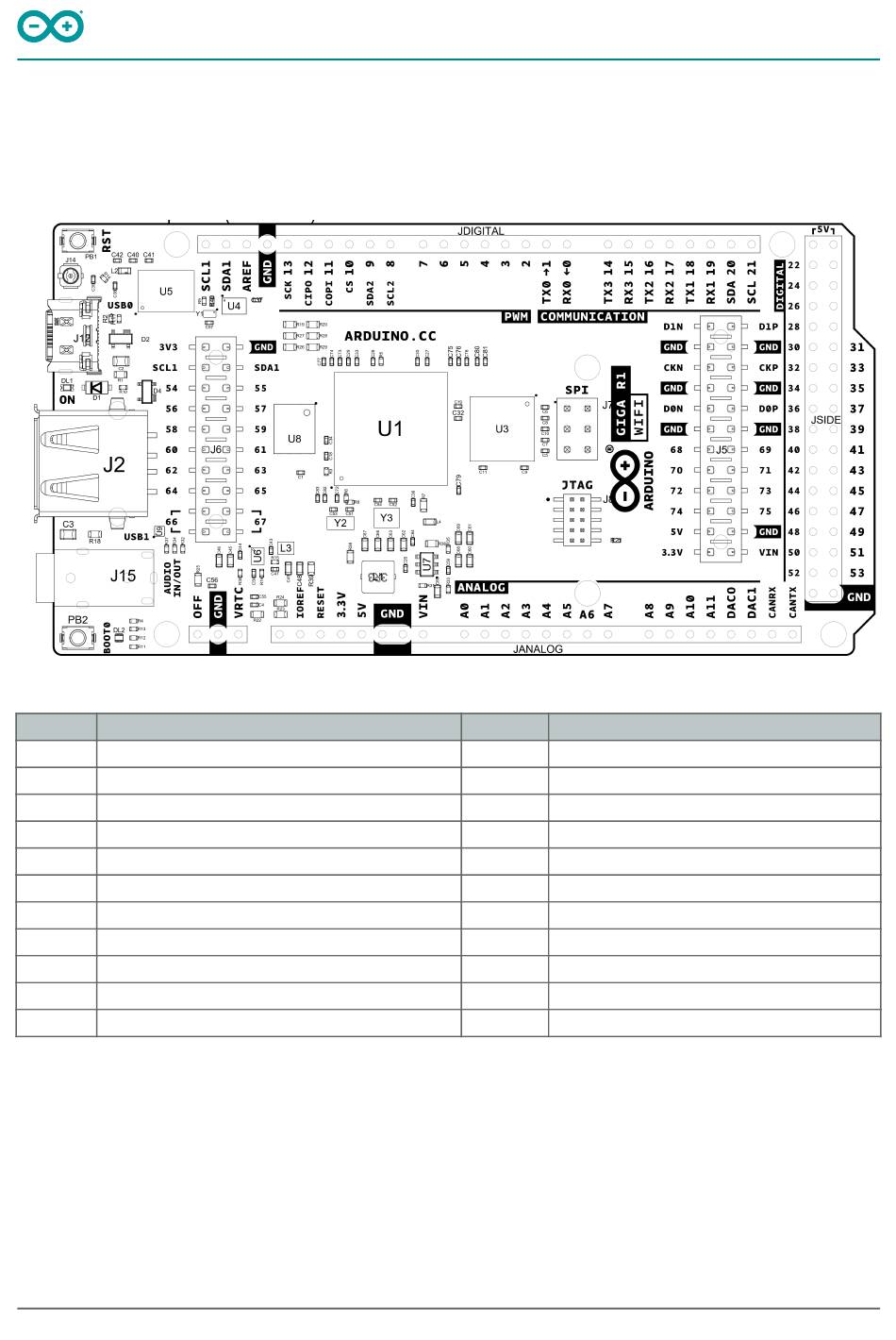

Top View of Arduino GIGA R1 WiFi
Ref.
U8
U4
U6
JANALOG
JSIDE
JTAG
J15
PB2
J5
DL1
J12
Arduino® GIGA R1 WiFi
Arduino® GIGA R1 WiFi
Description
AT25SF128A-MHB-T 16 MB Flash IC
ATECC608A-MAHDA-T Secure Element IC
MP2322GQH Buck Converter 3.3V IC
Analog input/output headers
Digital input/output headers
JTAG Headers
3.5 mm audio in/out
BOOT0 button
Camera
Power LED
CX90B-16P USB-C® connector
