Table 2. Description of PSU components and connectors ( tab.2)
Element no.
[Fig. 3]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
PSDCB09129C

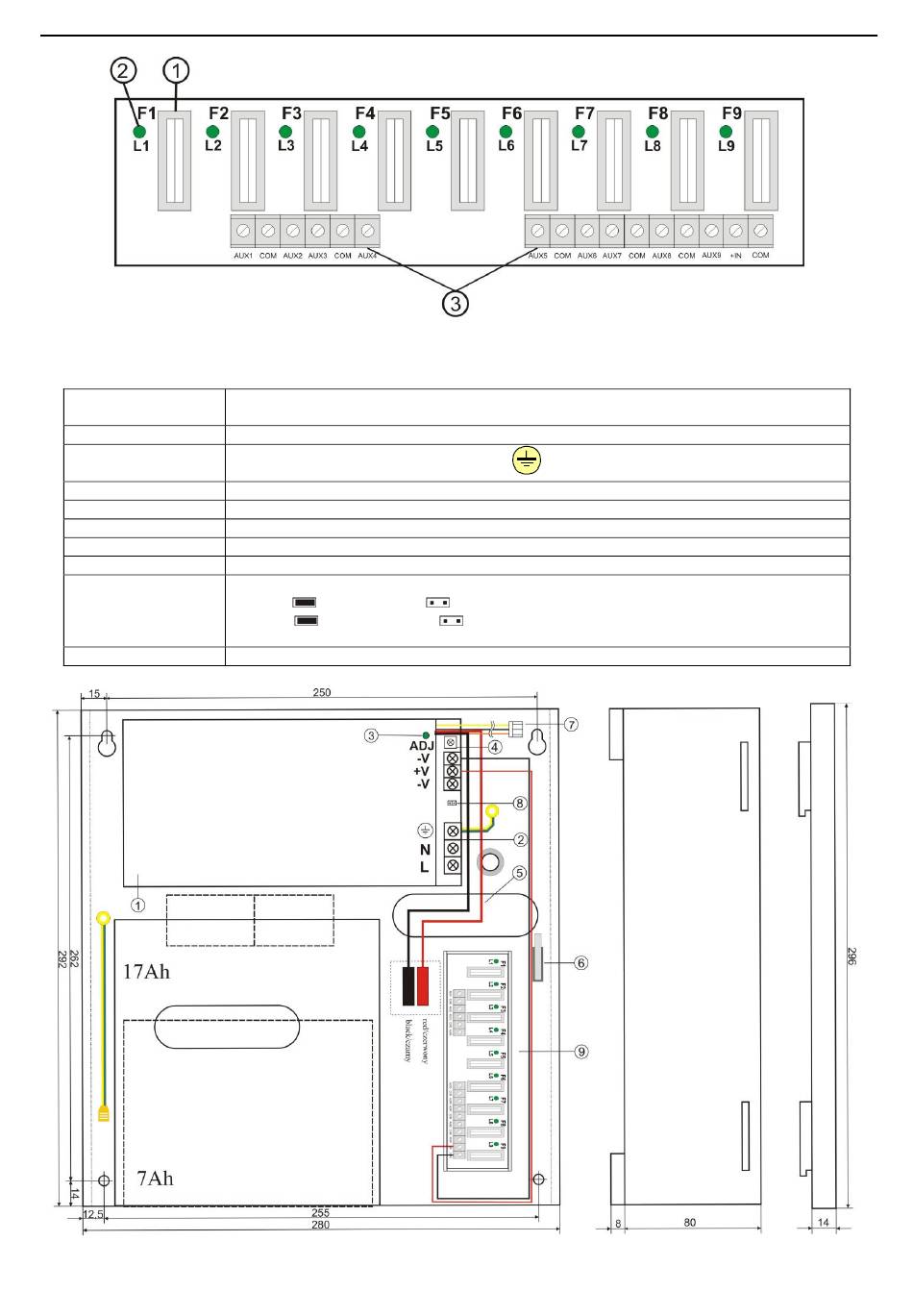

Fig. 2. The view of the fuse block LB9.
PSU module
L-N power-supply connector 230V AC,
green LED indicates AC power
P1 potentiometer, output voltage adjustment
BAT+/GND: battery outputs + BAT=red, - GND=black
TAMPER, contact of sabotage protection (NC)
Additional connector for LED indication
Ibat - Selection jumper for charging current:
Ibat =1A
Legend: jumper installed,
Factory settings: Ibat =1A (jumper installed).
Fuse block LB9
Fig.3. The view of the PSU.
Description
PE protection connector
Ibat =4A
jumper removed.
