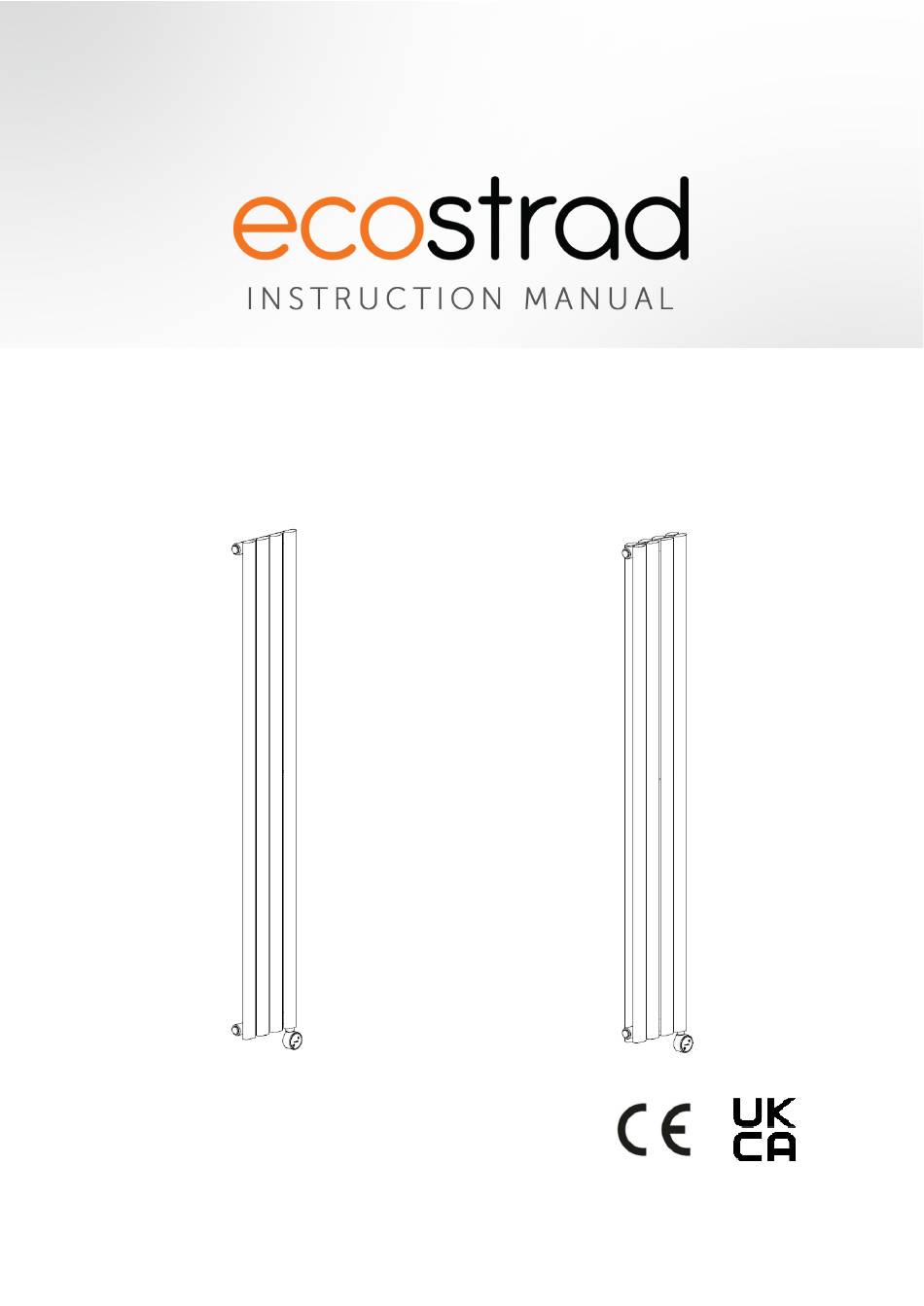

- Page 1 Ecostrad Designer Electric Radiators ALLORA Vertical...
- Page 2 1 | Warnings & Precautions Please read these instructions thoroughly before commencing installation. Check that all ancillary components are present and that the product has not suffered any damage during transit. This radiator is supplied with an electric heating element and is for use with an electric supply only.
- Page 3 2 | Installation 1 – Components Before beginning installation, check that all fixings are supplied. The radiator should only be mounted with the manufacturer’s fixings. Part Description Left Brackets Right Brackets Bracket Guards Wall Plugs Washers Wall Screws (ST6x65mm) Element * * The heating element is packaged separately from the radiator and may arrive in a separate delivery.
- Page 4 3 – Wall Mounting 1. Check that the wall is strong enough to hold the weight of the pre-filled radiator. a. The fixings supplied are suitable for use in solid masonry. For any other wall type you will need to source appropriate fixings. b.
- Page 5 3. Choose the mounting location and affix the Brackets (A, B) accordingly. a. Use a tape measure, spirit level and pencil to mark the bracket locations, as per step 2. b. Using a 10mm drill bit, drill four holes in the marked locations and push the Wall Plugs inside.
- Page 6 4 | Warranty The Ecostrad Allora carries a 10-year guarantee on the steel body, a 3-year guarantee on paintwork and a 2-year guarantee on electrical components. Within the stated period, starting from the date the customer receives their unit, Ecostrad guarantee to repair or replace the unit where a fault is due to defects in materials or manufacturing.
- Page 7 Claims must be made with the establishment where the unit was purchased. This warranty does not affect the customer’s consumer rights. 5 | Disposal The icon with the crossed-out waste bin on electrical or electronic equipment stipulates that this equipment must not be disposed of with household waste at the end of its life.
