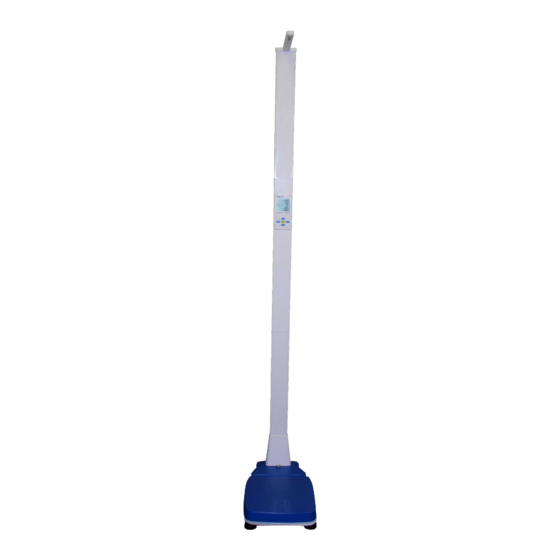

Health and fitness scale
Hide thumbs Also See for MUW 300L:

Advertisement

Quick Links

All manuals and user guides at all-guides.com
Adam Equipment
MUW HEALTH AND FITNESS SCALE
USER MANUAL
(P.N. 7.00.6.6.0229 Revision A - July 2012)
1
© Adam Equipment Company 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUW 300L and is the answer not in the manual?

Questions and answers

Summary of Contents for Adam Equipment MUW 300L

  • Page 1 All manuals and user guides at all-guides.com Adam Equipment MUW HEALTH AND FITNESS SCALE USER MANUAL (P.N. 7.00.6.6.0229 Revision A - July 2012) © Adam Equipment Company 2012...
  • Page 2: Table Of Contents

    SETTING DATE AND TIME F7 d-t................14 SET UP F8 SET UP....................14 TECHNICAL PARAMETERS F9 TECH ..............15 USER CALIBRATION .....................15 SERIAL INTERFACE SPECIFICATIONS ...............16 TROUBLE SHOOTING ...................16 ERROR MESSAGES ..................17 10.0 TECHNICAL SPECIFICATIONS ................17 11.0 WARRANTY INFORMATION..................18 © Adam Equipment Company 2012...
  • Page 3: Introduction

    6) Lift the top pillar section into position and slide it onto the fixing insert with the sensor housing facing the front, again ensuring the cable hangs freely inside the pillar. 7) Fit and tighten 4 x M4 x 10 screws through the pillar and into the insert. © Adam Equipment Company 2012...
  • Page 4: Locating And Protecting Your Scale

    Do not place near open windows, air-conditioning vents or fans that may cause a draft and unstable readings. Keep the scale clean. Do not stack material on the top pan when it is not in use. © Adam Equipment Company 2012...
  • Page 5: Keypad / Display Function

    All manuals and user guides at all-guides.com KEYPAD / DISPLAY FUNCTION The keypad and display have a number of features as shown and explained below: Tare Symbol Stable Indicator Ultrasonic Sensor Zero Indicator Symbol Battery Symbol Charging LED © Adam Equipment Company 2012...
  • Page 6: Rear Panel

    The charging indicator in the lower left corner of the LCD will be on to show it is charging and will turn green when the battery is fully charged. © Adam Equipment Company 2012...
  • Page 7: Basic Operation

    To change the displayed height measuring unit, press the [cm/ft] key which will then cycle you through the available options of height measuring units. This can only be done before or after a weighing takes place. © Adam Equipment Company 2012...
  • Page 8: Weighing/Height/Bmi

    The results will remain on the display until the [Clear] key is pressed. Results from a BMI measurement can be determined as the table below. Weight Status Below 18.5 Underweight 18.5 – 24.9 Normal 25.0 – 29.9 Overweight 30.0 and Above Obese © Adam Equipment Company 2012...
  • Page 9: Printing And Outputting The Results

    [Clear] key is pressed. When the patient has stepped off the platform and the results have been recorded or printed, the [Clear] key can then be pressed which will return the display to zero ready for the next patient to be weighed. © Adam Equipment Company 2012...
  • Page 10: Parameters

    F1 F1 F1 F1 EL EL EL EL and show the current setting, default is 3) Press the [Zero] key to select AUTO. 4) Press the [Print] key to change the setting for the backlight and press [Zero] to save, then [kg/lb] to select the next parameter. © Adam Equipment Company 2012...
  • Page 11: Setting Auto Off F2 Off

    “UArt”. 4) Either printing on demand (PrN), pressing the [Print] key following a weighing, or printing automatically (AUTO), automatically prints out when a stable reading and BMI calculation is displayed can be selected. © Adam Equipment Company 2012...
  • Page 12: Printing Detail Control F4 Ptsel

    Print out following calibration ON/OFF Date and time ON/OFF 4) Press the [Print] key to change the setting for the printing detail control and press [Zero] to save. 5) Press the [kg/lb] key to exit and continue. © Adam Equipment Company 2012...
  • Page 13: Ultrasonic Height Calibration F5 Ultra

    HOLD 3) Press the [kg/lb] key to select current setting, default is ON. 4) Press the [Print] key to change the setting for Hold, press [Zero] to save, then [kg/lb] to select the next parameter. © Adam Equipment Company 2012...
  • Page 14: Setting Date And Time F7 D-T

    Settings of 1 to 6 are available Stability symbol range Settings of 1 to 6 are available 1 is the smallest stability range and 6 is the largest. Weight Tracking Range Settings of 1 to 6 are available © Adam Equipment Company 2012...
  • Page 15: Technical Parameters F9 Tech

    9) Remove the weight from the pan and the scale will return to Zero. *A print out with date and time can be issued following every calibration. If an error code was displayed when calibrating please see the error code table in section 9.1 © Adam Equipment Company 2012...
  • Page 16: Serial Interface Specifications

    Performs the same functions as pressing the [kg/lb] key. H<cr><lf> Will change the Height measuring unit being used between cm, inches and feet and inches. Performs the same functions as pressing the [cm/ft] key. TROUBLE SHOOTING © Adam Equipment Company 2012...
  • Page 17: Error Messages

    Units of Weight Kg, lb’s, lb’s and ounces Power Supply 12vDC @800ma or Internal rechargeable 6vDC battery Overall Dimensions 0.38m x 0.6m x 2.3m w x d x h 15 x 23.6 x 90.2 inches © Adam Equipment Company 2012...
  • Page 18: Warranty Information

    11.0 WARRANTY INFORMATION Adam Equipment offers Limited Warranty (Parts and Labour) for the components failed due to defects in materials or workmanship. Warranty starts from the date of delivery. During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Adam Equipment Company.
  • Page 19 Shielded interconnect cables must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by Adam Equipment could void the user's authority to operate the equipment. WEEE COMPLIANCE...
  • Page 20 For a complete listing of all Adam products visit our website at www.adamequipment.com © Copyright by Adam Equipment Co. Ltd. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment.
