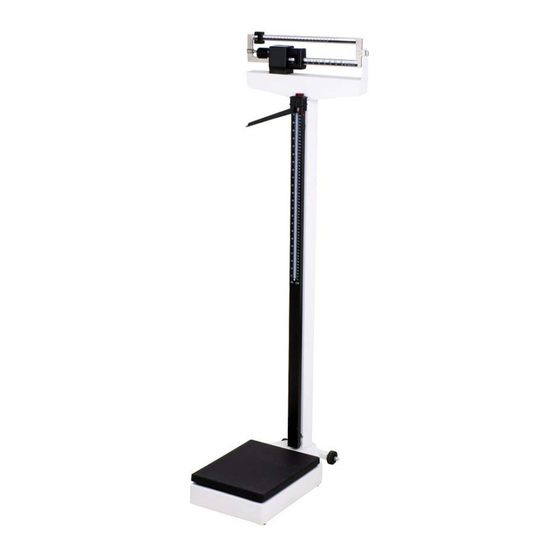

- Page 1 Adam Equipment MDW-160 & MDW-200 (Includes ‘B’ and ‘M’ versions) MECHANICAL HEALTH AND FITNESS SCALE (Manual P.N. 4283, Revision C, July 2017) MDW “M” MDW “B” © Adam Equipment Company 2017 Manual P.N. 4283, Revision C, July 2017...
- Page 2 © Adam Equipment Company 2017 Manual P.N. 4283, Revision C, July 2017...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ......................2 SPECIFICATIONS ......................3 INSTALLATION ......................4 GENERAL INSTALLATION ................... 4 HEIGHT ROD INSTALLATION (‘M’ ) ..........6 VERSIONS ONLY TRANSPORT WHEEL INSTALLATION (‘M’ ) ......... 8 ... -
Page 4: Introduction
INTRODUCTION The MDW-160 & MDW-200 Health and Fitness Scales are mechanical scales (also known as physicians scales) which can accurately weigh a person. Models with a ‘B’ suffix are for weighing only. Models with an ‘M’ suffix also include an integrated mechanical height measurement gauge. ... -
Page 5: Specifications
SPECIFICATIONS MODEL MDW-160M & MDW160B MDW-200M & MDW-200B Capacity 160 kg / 350 lb. 200 kg / 440 lb. Readability 100 g / ¼ lb Platform Size 375 mm x 275 mm / 14.8” x 10.8” Overall 560 mm x 275 mm x 1495 mm / dimensions 20.9”... -
Page 6: Installation
INSTALLATION GENERAL INSTALLATION This precision instrument is extremely easy to set up, as all major parts are factory pre-assembled. Hardware supplied for installation: Qty. 8: M5 x 10 screws Qty. 10: Lock washers Qty. 2: M6 x 10 screws ... - Page 7 NOTE: If the pillar bracket is bent, straighten it before assembling. Pillar Installation With the scale upright, slip the pillar over the bracket on the frame. Use the 8 screws and lock washers to fix the pillar in a vertical position. © Adam Equipment Company 2017 ...
-
Page 8: Height Rod Installation ('M' Versions Only )
Lay down the scale, with column horizontal to the floor (use a table if possible). Remove the wires on the levers Insert the assembly tool (wrench) into the small hole in front of the steelyard rod, and pull the hook of the steelyard rod with the hook of wrench ... - Page 9 Insert the rear holes of the height rod into the two bolts on the front of the pillar, loosen the height rod downwards on right position. Use the wrench to tighten the two hex-head screws. Do not over tighten the screws. Remove the wrench from the two hex-head screws.
-
Page 10: Transport Wheel Installation ('M' Versions Only)
TRANSPORT WHEEL INSTALLATION (‘M’ versions only) Turn the wheel bracket so with one side facing upwards, the other side with two holes should be opposite to the rear of frame. Use the screws and washers to fix the wheel to the platform, adjust the bracket to a level position, then tighten the screws. - Page 11 MEASURING HEIGHT (‘M’ versions only) Preparing the scale to measure the height- Before the person steps onto the scale platform, the measuring arm should be lifted to the horizontal position, and raised well above the person’s apparent height. The person may now step onto the scale platform. ...
-
Page 12: Weighing Operation
WEIGHING OPERATION To do the zero setting- For accurate weighing, place the scale on a levelled floor. Move both the balancing masses to zero when the scale platform is empty. If the scale is balanced, the lever will be in the horizontal position. This will be indicated by the arrow indicator being in line with the horizontal mark on the right side of the column head. - Page 13 To weigh a person- The person to be weighed can now step onto the scale platform. The lever will move away from its original position. Move the balancing masses along the calibrated lever arms to return the lever to the horizontal position. ...
-
Page 14: Warranty Information
6. WARRANTY INFORMATION Adam Equipment offers Limited Warranty (Parts and Labour) for the components failed due to defects in materials or workmanship. Warranty starts from the date of delivery. During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Adam Equipment Company. The company or its authorised Technician reserves the right to repair or replace the components at any of its workshops depending on the severity of the problems. However, any freight involved ... - Page 15 © Copyright by Adam Equipment Co. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
