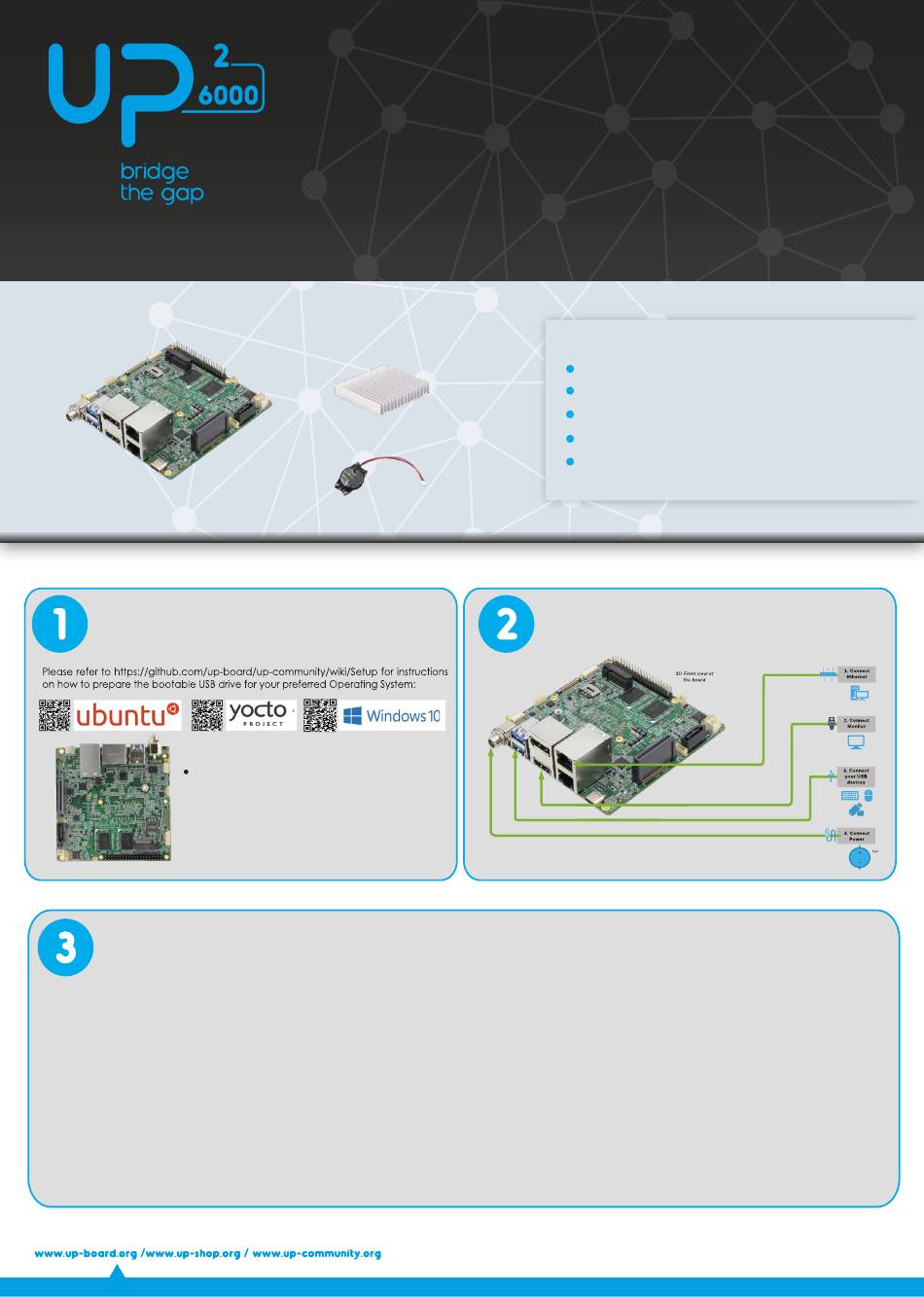

Aaeon UP Squared 6000 Quick Start Manual

WHAT 'S IN YOUR KIT ?
1x UP Squared 6000
GET READY
The UP Squared 6000 board comes with
pre-attached passive heatsink and
RTC battery.
HARDWARE SETUP DETAILS
1. Insert the USB drive before connecting the 12V DC adapter.
2. Please connect monitor before powering on the device. Upon receiving power, the board will turn on automatically.
3. The board is set to automatically try to boot from the inserted USB drive.
4. You do not need to make changes to the BIOS settings to install the operating system.
For more info on the BIOS and how to change the BIOS password, see https://github.com/up-board/up-community/wiki
After you finish installation for operating system, try together with Intel EDGE Software Hub, see
https://www.intel.com/content/www/us/en/develop/documentation/edge-insights-vision-doc/get-started-guide.html
This is a high performance system and may get hot during operation.
Caution:
HAT 40pin maximum current: 3mA.
PC Client SKUs do not support 100pin expansion slot.
Quick Start Guide
Up to a 1.7x improvement in single-thread performance
and up to 2x performance for 3D graphics compared to
I/O interfaces include 1x USB 3.2 Type-C (OTG support)*, 2x USB 3.2 Type-A, 2x GbE, 1x COM Port*, 1x SATA 3.0,
1x M.2 2230 E key, 1x M.2 2242/2280 M key, 1x M.2 3042/3052 B key with micro-SIM card slot,
1x HDMI 2.0b, 1x DP 1.2, 1x eDP* ,Audio jack line I/O, 1x 40pin HAT, 1x 100 pin header*,
1x assive heatsink (already attached)
1x RTC Battery (already attached)
UP Squared 6000
previous generation Intel processors.
*Only in in Intel Atom® x6413E, Intel Atom® x6425RE SKUs
You will need the following, not included:
12V power adapter and power cord.
A monitor with HDMI or DP, and respective cables.
USB keyboard and mouse.
Ethernet cable or WiFi module (optional, to be installed manually).
USB drive for OS installation.
CONNECT HARDWARE
