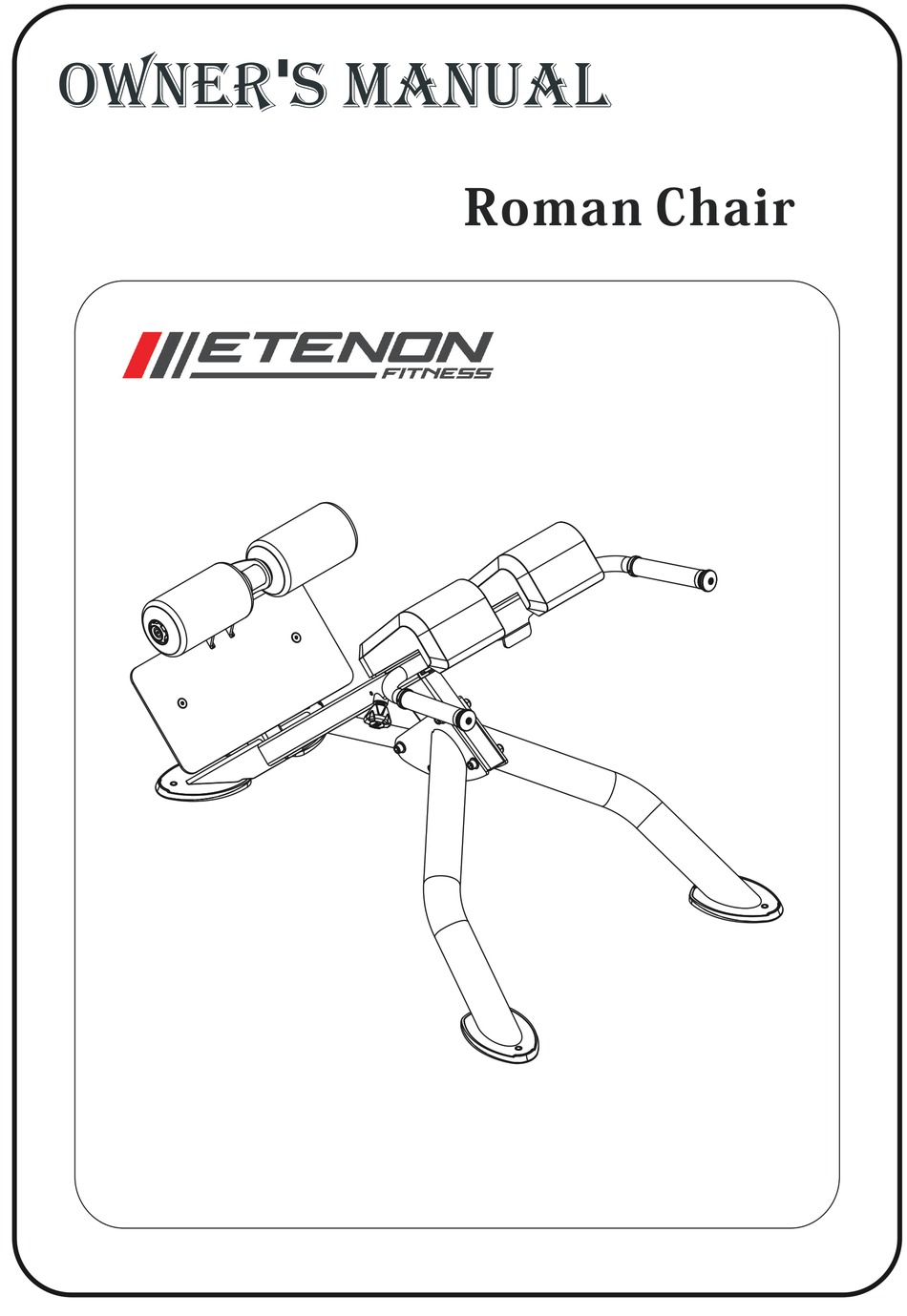

- Page 1 OWNER S MANUAL Roman Chair...
- Page 2 Cautions In order to avoid human injuries and property damages,before the use of this series equipment please read the following important notices 1 Before use of the equipment please read this Owner’s Manual carefully The equipment should be assembled and used strictly following the relevant instructions in this manual and can not change any of its components or disassemble it freely 2.
- Page 3 Before using the equipment please consult your physician and fitness expert and must be sure to read all the specifications in this owner s manual Manufacturer will ’ not be held responsible for any personal injury and property loss resulted from the incorrect use of the products...
-
Page 4: Fitting Instructions
Fitting Instructions 1 When strip off the wrappage around the surface of equipment should be careful do not hurt the machine with knife scratches on the surface 2 When moving this equipment a sufficient number of personnel should be used to prevent the equipment from collision or to avoid the injuries caused by personnel shortage 3 Prior to installation of the equipment make sure that all the parts are complete no... - Page 5 to check the equipment carefully identify the problems and reinstall it Warranty Ten years Main Frames One year Bushings Pivot bearings guide rods Weight plate cams swivel welding parts Pull-pin components Half year: Finish rubber grips belt cables Three Months upholstery...
-
Page 6: Assembly Step
Assembly step 1 Steps Description Specifications main frame left support frame right support frame foot pedal frame Hex Socket Head Cap screw M10*80 Hex Socket Head Cap screw M12*80 flat washer Φ20*Φ10.5*2 flat washer Φ24*Φ13*2.5... - Page 7 Assembly step 2 Steps Description Specifications cushion frame Hex Socket Head Cap screw M10*90 flat washer Φ20*Φ10.5*2...
- Page 8 Assembly step 3 Steps Description Specifications end cover Hexagon Socket Button Head Screw M8*30 Inner Haxagon Sunk Head Bolt M8*25 flat washer Φ16*Φ8.4*1.6 spring washer leg pad Back pad...
-
Page 9: Exploded View
Exploded View... - Page 10 Exploded List Description Specifications main frame left support frame right support frame foot pedal frame cushion frame adjusting tube half sliding cover limiting screw half sliding cover end cover through-hole handle cover ground mattress Hexagon Socket Button Head Screw M8*30 Hex Socket Head Cap screw M10*80 Hex Socket Head Cap screw...
- Page 11 Maintenance Attentions Daily Maintenance (Basic Maintenance) 1 Clean the seat pad back pad and cushion with warm water and soft cloth in order to avoid the sweat erosion to these component 2. Clean the frame with warm water and soft cloth. 3.
