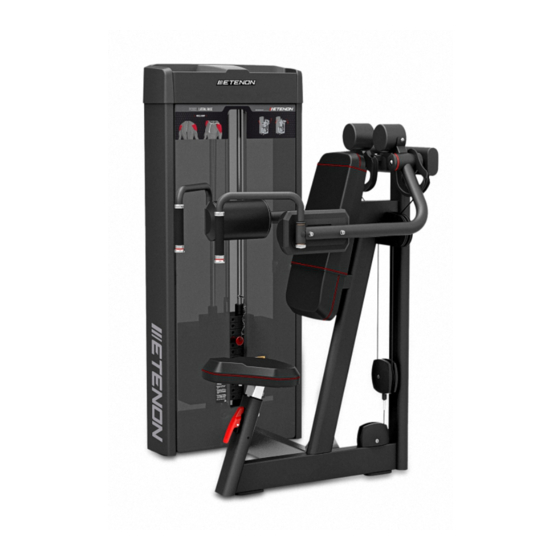

- Page 1 OWNER S MANUAL ’ LATERAL RAISE CAUTION Please read all instructions in this manual before use the equipment and keep the manual well.
- Page 4 Equipment Schematic Back seat pad Door Frame Right are frame Left are frame Seat pad Main frame...
-
Page 7: Assembly Step
Assembly step 1 Step Description Specifications Door Frame Inner Hexagon Socket Head Bolt M10*35 Spring washer Flat washer Φ20*Φ10.5*2 Pulley set Half pulley cover Ring End cover Hexagon socket screw on umbrella head M10*25 Hexagon socket screws with cylindrical head M10*50 M10*35 Hexagon socket screws with cylindrical head... - Page 8 Assembly step 2 Step Description Specifications Half round cushion Seat pad Back seat pad Hexagon socket screw on umbrella head M8*30 Hexagon socket screws with cylindrical head M8*30 Hexagon socket screws with cylindrical head M8*85 Flat washer Φ16*Φ8.4*1.6 Spring washer...
- Page 9 Assembly step 3 Step Description Specifications Guide rod Guide rod fixed plate Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Rod end cover Pulley sets φ89*32 Selector pin Inner Hexagon Socket Head Bolt M8*20 Inner Hexagon Socket Head Bolt M10*55 Spring washer Flat washer Φ16*Φ8.4*1.6 Flat washer...
- Page 10 Assembly step 4 Step Description Specifications Upper shield Shield fixed plate Fixed bushing Front shield Back shield cross recessed countersunk head screw M5*10 Countersunk head hexagon socket screw M6*16 Inner Hexagon Socket Head Bolt M6*16 Spring washer Flat washer Φ12*Φ6.4*1.6...
-
Page 11: Cable Routing Diagram
CABLE ROUTING DIAGRAM Wrong Correct Cable Cable limiting post limiting post... -
Page 12: Exploded View
Exploded View... - Page 13 Exploded List Description Specifications Doorframe Upper shield Shield fixed plate Guide rod Guide rod fixed plate Fixed bushing Front shield Back shield Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Floor cushion Rod end cover Pulley sets φ89*32 Selector pin cross recessed countersunk head screw M5*10 Countersunk head hexagon socket screw M6*16...
- Page 14 Exploded View...
- Page 15 Exploded List Description Specifications Main frame Connection frame Cushion adjusting rack Left are frame Right are frame Right handle frame Left handle frame Fixed axis Torsion spring End cover Step rolling bearing Metallurgy set Lifting pulley bracket Pulley set Adjusting handle Sliding sleeve set 6*25 Elastic cylindrical pin...
- Page 16 Exploded List Description Specifications Open ring M6*Φ20.8*10 Reed nut M5*5 Set screws with inner hexagonal cone end Hexagon socket screw on umbrella head M8*25 Hexagon socket screw on umbrella head M10*25 M10*50 Hexagon socket screw on umbrella head M8*30 Hexagon socket screw on umbrella head M6*25 Hexagon socket screws with cylindrical head Hexagon socket screws with cylindrical head...
- Page 18 Weight stack label instructions 1 Wipe front surface of weight stack 2 Peel off back sheet adhesive side from label and make sure that the label remains attached to the application tape 3 Aline the center hole of label with the weight stack center hole 4 Line up the first label to hole on top plate 5 Make sure label is straight and slowly press into place...
