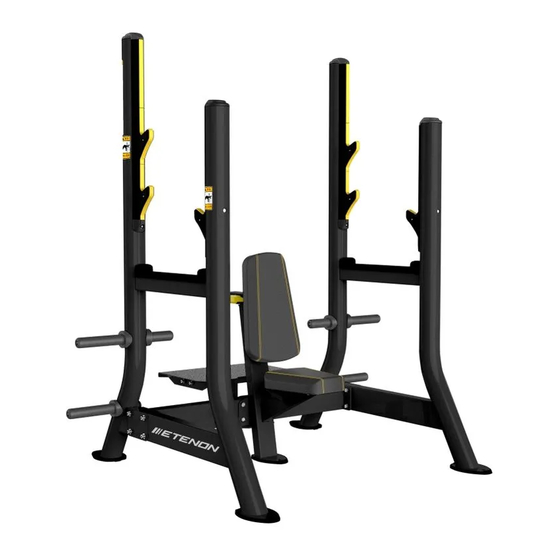

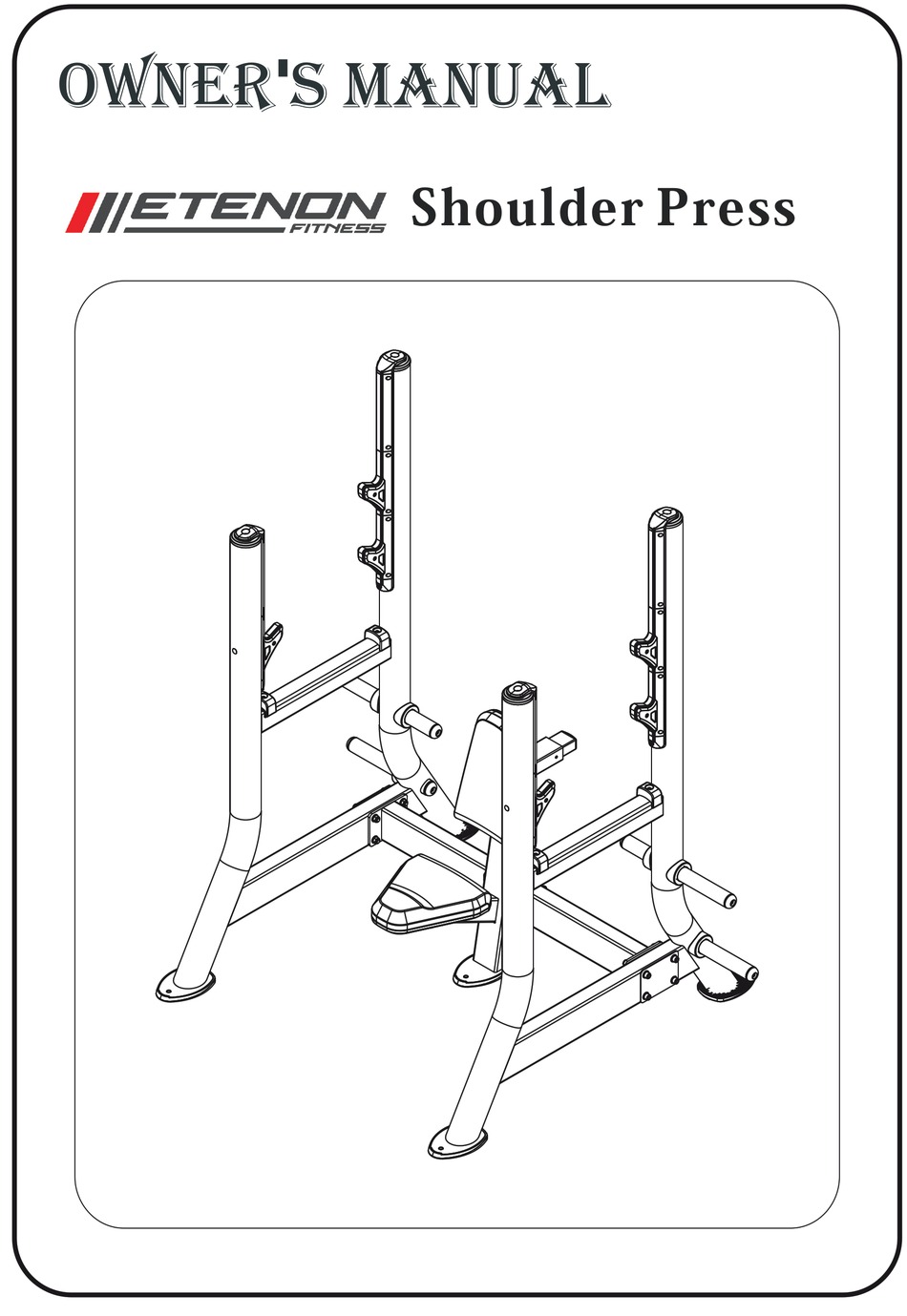

- Page 1 OWNER S MANUAL Shoulder Press...
- Page 2 Cautions In order to avoid human injuries and property damages,before the use of this series equipment please read the following important notices 1 Before use of the equipment please read this Owner’s Manual carefully The equipment should be assembled and used strictly following the relevant instructions in this manual and can not change any of its components or disassemble it freely 2.
- Page 3 Before using the equipment please consult your physician and fitness expert and must be sure to read all the specifications in this owner s manual Manufacturer will ’ not be held responsible for any personal injury and property loss resulted from the incorrect use of the products...
-
Page 4: Fitting Instructions
Fitting Instructions 1 When strip off the wrappage around the surface of equipment should be careful do not hurt the machine with knife scratches on the surface 2 When moving this equipment a sufficient number of personnel should be used to prevent the equipment from collision or to avoid the injuries caused by personnel shortage 3 Prior to installation of the equipment make sure that all the parts are complete no... - Page 5 to check the equipment carefully identify the problems and reinstall it Warranty Ten years Main Frames One year Bushings Pivot bearings guide rods Weight plate cams swivel welding parts Pull-pin components Half year: Finish rubber grips belt cables Three Months upholstery...
-
Page 6: Assembly Step
Assembly step 1 Steps No. Description Specifications Floor stander Joint frame Plate Hex socket head cap screw M12*90 Plain washer Φ24*Φ13*2.5 Nylon insert lock nut... - Page 7 Assembly step 2 Assembly step Steps No. Description Specifications Seat pad frame Junction plate Hex socket head cap screw M12*90 Plain washer Φ24*Φ13*2.5 Nylon insert lock nut...
- Page 8 Assembly step 3 Assembly step Step Description Specifications Pipe plug Backrest cushion frame Plain washer Φ16*Φ8.4*1.6 Spring washer Hex socket head cap screw M8*40 Head pad...
- Page 9 Assembly step 4 Assembly step Step Description Specifications Plain washer Φ16*Φ8.4*1.6 Spring washer Hex socket head cap screw M8*40 Seat pad...
- Page 10 Assembly step 5 Assembly step Step Description Specifications Barbell frame Long barbell frame Protecting jacket Barbell bushing Pipe plug Hexagon socket button head screw M6*25 large washer Φ18*Φ6.4*1.6 Spring washer...
-
Page 11: Exploded View
Exploded View... - Page 12 Exploded List Description Specifications Floor stander Joint frame Seat pad frame Barbell frame Long barbell frame Junction plate Left hook jacket Middle hook jacket Right hook jacket Left extend jacket Middle extend jacket Right extend jacket Rubber mat Lower protecting jacket Upper protecting jacket Pipe plug Seat pad...
- Page 13 Exploded List Description Specifications Spring washer Spring washer Small countersunk head rivet nut M8*18 Nylon insert lock nut Plug Plain washer Φ20*Φ10.5*2 Spacing Sleeve Hole plug Hex socket head cap screw M8*40 Seat pad Head pad...
- Page 14 Maintenance Attentions Daily Maintenance (Basic Maintenance) 1 Clean the seat pad back pad and cushion with warm water and soft cloth in order to avoid the sweat erosion to these component 2. Clean the frame with warm water and soft cloth. 3.
