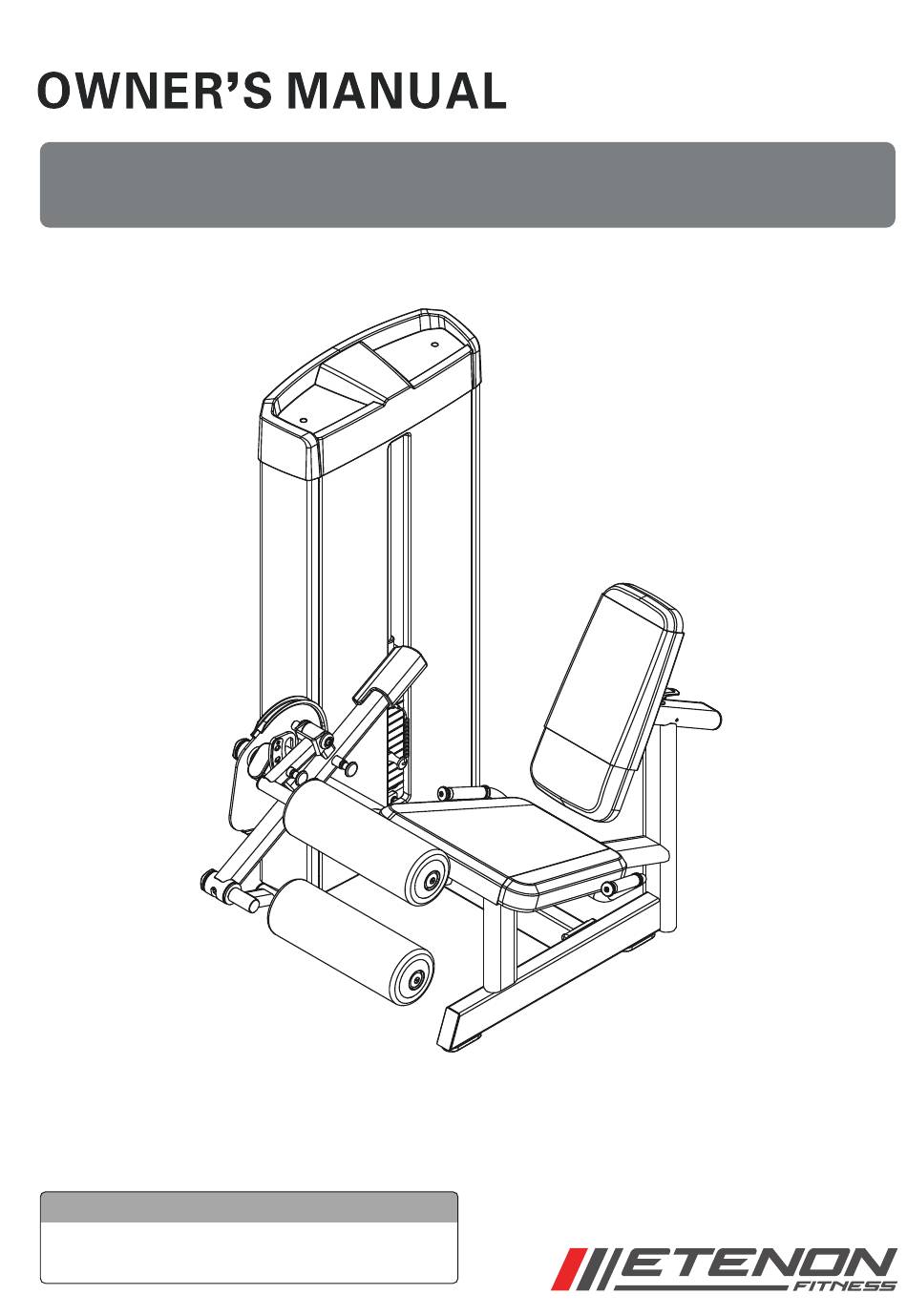

- Page 1 LEG CURL CAUTION Please read all instructions in this manual before use the equipment and keep the manual well.
- Page 5 Equipment Schematic Door Frame Back pad Counter weight Seat pad frame Swing frame Round pad Seat pad...
- Page 8 Assembly step 1 Step Description Specifications Door Frame Inner Hexagon Socket Head Bolt M10*35 Spring washer Flat washer Φ20*Φ10.5*2 Connecting frame...
- Page 9 Assembly step 2 Step Description Specifications Connecting frame Seat frame Socket Fead Cap Screw M10*30 Socket Fead Cap Screw M10*35 Spring washer Flat washer Φ20*Φ10.5*2...
- Page 10 Assembly step 3 Step Description Specifications Swing frame Bumper Ring End cap Socket Button Head Screw M10*25 Spring washer Stop Collar Cam frame Swing span...
- Page 11 Assembly step 4 Step Description Specifications Roller pad frame Thigh pad frame Stopper Shaft End cap Ring End cap Socket Button Head Screw M10*25 Socket Fead Cap Screw M10*30 Spring washer...
- Page 12 Assembly step 5 Step Description Specifications Handle bracket Socket Fead Cap Screw M10*140 Flat washer Φ20*Φ10.5*2...
- Page 13 Assembly step 6 Step Description Specifications Backrest pad asjustment tube Tube bushing Stop screw Spring washer...
- Page 14 Assembly step 7 Step Description Specifications Aluminum end cap Socket Flat head screw M8*25 Socket Fead Cap Screw M8*30 Spring washer Flat washer Φ16*Φ8.4*1.6 Roll pad Backrest pad Backrest pad wear cover Seat Pad Seat pad wear cover...
- Page 15 Assembly step 8 Step Description Specifications Door Frame Guide rod Guide rod fixed plate Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Rod end cover Selector pin Inner Hexagon Socket Head Bolt M8*20 Spring washer Flat washer Φ16*Φ8.4*1.6 10-pound top weight plate 10-pound weight 20-pound weight...
- Page 16 Assembly step 9 Step Description Specifications Pulley sets φ89*32 Inner Hexagon Socket Head Bolt M10*55 Flat washer Φ20*Φ10.5*2 Nylon nut Cable Pulley Socket Fead Cap Screw M10*70 Flat washer Φ20*Φ10.5*2...
- Page 17 Assembly step 10 Step Description Specifications Door Frame Upper shield Fixed bushing Front shield Back shield Countersunk head hexagon socket screw M6*16 Inner Hexagon Socket Head Bolt M6*16 Spring washer Flat washer Φ12*Φ6.4*1.6...
- Page 18 CABLE ROUTING DIAGRAM Wrong Correct Cable Cable limiting post limiting post...
- Page 19 Exploded View...
- Page 20 Exploded List Description Specifications Doorframe Upper shield Shield fixed plate Guide rod Guide rod fixed plate Fixed bushing Front shield Back shield Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Floor cushion Rod end cover Pulley sets φ89*32 Selector pin cross recessed countersunk head screw M5*10 Countersunk head hexagon socket screw M6*16...
- Page 21 Exploded View...
- Page 22 Exploded List Description Specifications Connecting frame Seat frame Swing frame Roller pad frame Handle bracket Thigh pad frame Backrest pad asjustment tube Selector Plate Pivot pin Pivot pin Counter weight Stopper Aluminum end cap Selector Plate Shaft End cap Spring Spring M20 nut Bumper...
- Page 23 Exploded List Description Specifications Ring End cap Tube bushing Oval end cap Self-lubricating bearing Shoulder bearing Stop screw Socket Flat head screw M8*25 Set screw M5*5 Panhead screw M5*10 Socket Button Head Screw M8*25 Socket Button Head Screw M10*25 Socket Fead Cap Screw M6*25 Socket Fead Cap Screw M8*30...
- Page 25 Weight stack label instructions 1 Wipe front surface of weight stack 2 Peel off back sheet adhesive side from label and make sure that the label remains attached to the application tape 3 Aline the center hole of label with the weight stack center hole 4 Line up the first label to hole on top plate 5 Make sure label is straight and slowly press into place...
