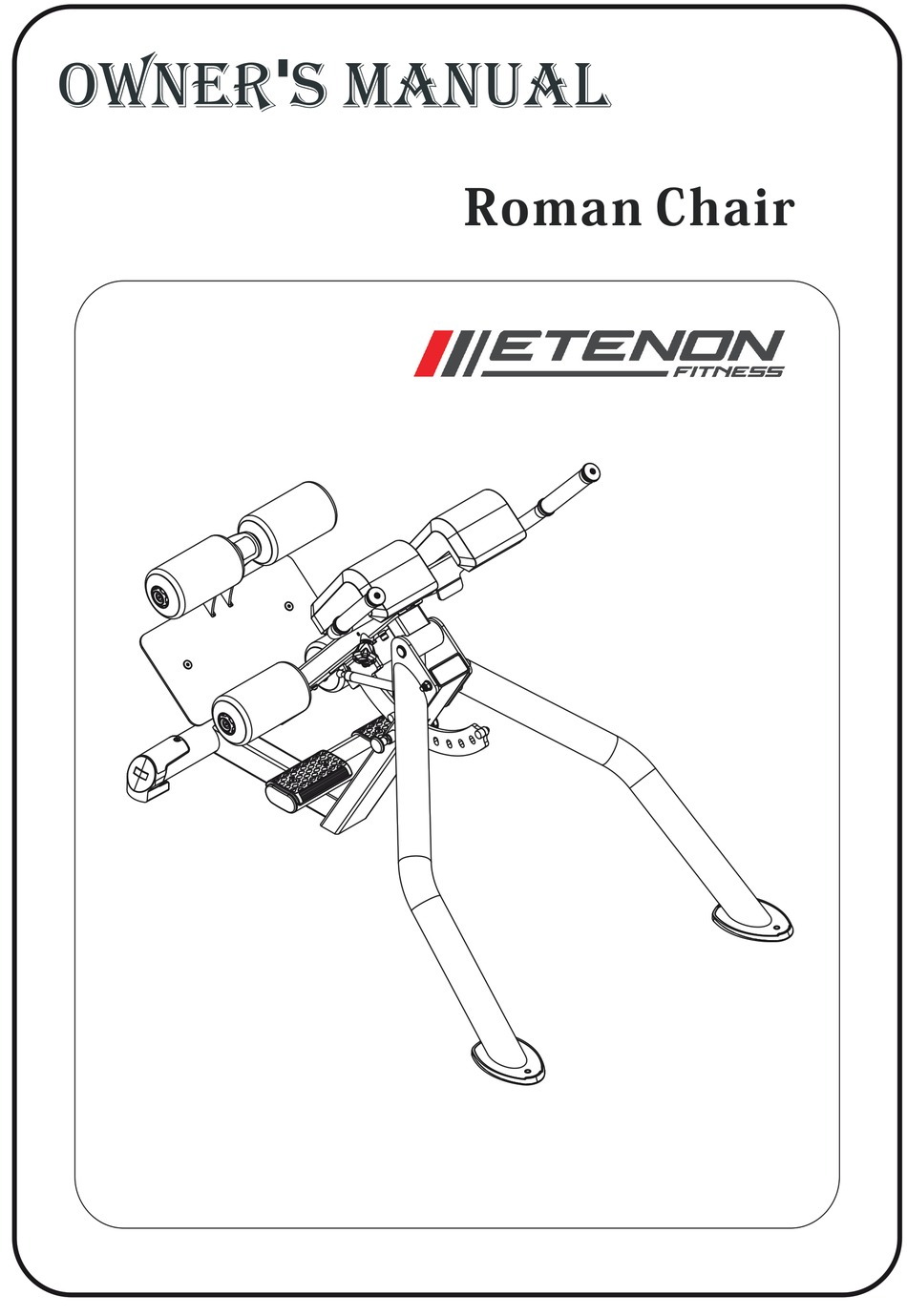

- Page 1 OWNER S MANUAL Roman Chair...
- Page 2 Cautions In order to avoid human injuries and property damages,before the use of this series equipment please read the following important notices 1 Before use of the equipment please read this Owner’s Manual carefully The equipment should be assembled and used strictly following the relevant instructions in this manual and can not change any of its components or disassemble it freely 2.
- Page 3 Before using the equipment please consult your physician and fitness expert and must be sure to read all the specifications in this owner s manual Manufacturer will ’ not be held responsible for any personal injury and property loss resulted from the incorrect use of the products...
-
Page 4: Fitting Instructions
Fitting Instructions 1 When strip off the wrappage around the surface of equipment should be careful do not hurt the machine with knife scratches on the surface 2 When moving this equipment a sufficient number of personnel should be used to prevent the equipment from collision or to avoid the injuries caused by personnel shortage 3 Prior to installation of the equipment make sure that all the parts are complete no... - Page 5 to check the equipment carefully identify the problems and reinstall it Warranty Ten years Main Frames One year Bushings Pivot bearings guide rods Weight plate cams swivel welding parts Pull-pin components Half year: Finish rubber grips belt cables Three Months upholstery...
-
Page 6: Assembly Step
Assembly step 1 Steps Description Specifications Intermediate support frame Right support frame Left support frame Hex socket head cap screw M12*140 Plain washer Φ24*Φ13*2.5 Nylon insert lock nut... - Page 7 Assembly step 2 Steps Description Specifications Right support frame Left support frame Mainframe Leg pad fixing frame φ25*124 Circlips for shaft d0=25...
- Page 8 Assembly step 3 Steps Description Specifications Mainframe Foot frame Hex socket head cap screw M10*80 Plain washer Φ20*Φ10.5*2 Nylon insert lock nut Foot plate...
- Page 9 Assembly step 4 Steps Description Specifications Mainframe Arc adjusting plate Limiting rubber φ20*17*M8 Hexagon socket button head screw M8*20 Hex socket head cap screw M10*30 Plain washer Φ16*Φ8.4*1.6 Plain washer Φ20*Φ10.5*2 Spring washer Nylon insert lock nut...
- Page 10 Assembly step 5 Steps Description Specifications Right support frame Mainframe Gas spring φ22*330 55KG Plain washer Φ16*Φ8.4*1.6 Nylon insert lock nut...
- Page 11 Assembly step 6 Steps Description Specifications Mainframe Adjusting tube Limiting screw M10*25*φ8 Spring washer...
- Page 12 Assembly step 7 Steps Description Specifications Cushion frame Adjusting tube Hex socket head cap screw M10*90 Plain washer Φ20*Φ10.5*2 Nylon insert lock nut...
- Page 13 Assembly step 8 Steps Description Specifications Cushion frame Back pad Hexagon socket button head screw M8*30 Plain washer Φ16*Φ8.4*1.6 Spring washer...
- Page 14 Assembly step 9 Steps Description Specifications Pedal frame Mainframe End cap Φ50*Φ9*15 Countersunk hex socket screws M8*25 Hexagon socket button head screw M8*20 Plain washer Φ16*Φ8.4*1.6 Spring washer...
- Page 15 Assembly step 10 Steps Description Specifications Foot frame Leg pad End cap Φ50*Φ9*15 Countersunk hex socket screws M8*25...
-
Page 16: Exploded View
Exploded View... - Page 17 Exploded List Description Specifications Intermediate support frame Right support frame Left support frame Pedal frame Cushion frame Mainframe Leg pad fixing frame φ25*124 Arc adjusting plate Adjusting tube Adjusting column Semi-sliding sleeve Foot frame Back pad Leg pad Steps rolling bearing φ52*φ25*18 Spring Φ1.4*Φ12.5*30...
- Page 18 Exploded List Description Specifications Hex socket head cap screw M10*90 Hex socket head cap screw M12*140 Plain washer Φ16*Φ8.4*1.6 Plain washer Φ20*Φ10.5*2 Plain washer Φ24*Φ13*2.5 Spring washer Spring washer Nylon insert lock nut Nylon insert lock nut Nylon insert lock nut Foot plate Countersunk hex socket screws M10*25...
- Page 19 Maintenance Attentions Daily Maintenance (Basic Maintenance) 1 Clean the seat pad back pad and cushion with warm water and soft cloth in order to avoid the sweat erosion to these component 2. Clean the frame with warm water and soft cloth. 3.
