Summary of Contents for ETENON Fitness PC20

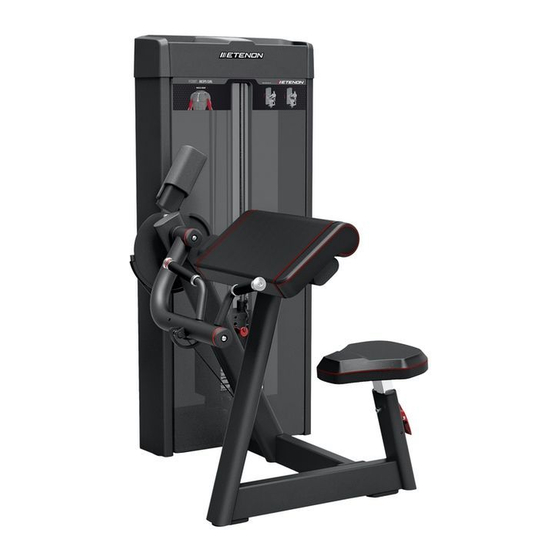

- Page 1 BICEPS CURL CAUTION Please read all instructions in this manual before use the equipment and keep the manual well.
- Page 4 Equipment Schematic Door Frame Balance weight Arm pad Seat pad Swing frame Seat pad frame...
- Page 7 Assembly step 1 Step Description Specifications Door Frame Inner Hexagon Socket Head Bolt M10*35 Spring washer Flat washer Φ20*Φ10.5*2 connection frame...
- Page 8 Assembly step 2 Step Description Specifications connection frame seat pad rack socket cap screw M10*35 flat washer Φ20*Φ10.5*2 spring washer...
- Page 9 Assembly step 3 Step Description Specifications flat key end cover decorative ring Socket head cap screw M10*25 spring washer swing frame cam rack Stop Collar...
- Page 10 Assembly step 4 Step Description Specifications support rack socket cap screw M10*30 flat washer Φ20*Φ10.5*2...
- Page 11 Assembly step 5 Step Description Specifications arm rack socket cap screw M10*30 socket cap screw M10*35 flat washer Φ20*Φ10.5*2 spring washer...
- Page 12 Assembly step 6 Step Description Specifications Round plug socket cap screw M8*30 flat washer Φ16*Φ8.4*1.6 spring washer arm pad arm pad cover seat pad...
- Page 13 Assembly step 7 Step Description Specifications Door Frame Guide rod Guide rod fixed plate Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Rod end cover Selector pin Inner Hexagon Socket Head Bolt M8*20 Spring washer Flat washer Φ16*Φ8.4*1.6 10lb top weight assembly 10lb weight stack assembly...
- Page 14 Assembly step 8 Step Description Specifications Pulley sets φ89*32 Inner Hexagon Socket Head Bolt M10*55 Flat washer Φ20*Φ10.5*2 Nylon nut wide pulley cable socket cap screw M10*70 flat washer Φ20*Φ10.5*2...
- Page 15 Assembly step 9 Step Description Specifications Upper shield Shield fixed plate Fixed bushing Front shield Back shield cross recessed countersunk head screw M5*10 Countersunk head hexagon socket screw M6*16 Inner Hexagon Socket Head Bolt M6*16 Spring washer Flat washer Φ12*Φ6.4*1.6...
- Page 16 CABLE ROUTING DIAGRAM Wrong Correct Cable Cable limiting post limiting post...
- Page 17 Exploded View...
- Page 18 Exploded List Description Specifications Doorframe Upper shield Shield fixed plate Guide rod Guide rod fixed plate Fixed bushing Front shield Back shield Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Floor cushion Rod end cover Pulley sets φ89*32 Selector pin cross recessed countersunk head screw M5*10 Countersunk head hexagon socket screw M6*16...
- Page 19 Exploded View...
- Page 20 Exploded List Description Specifications connection frame seat pad rack handle rack arm rack seat pad adjustment rack support rack adjustment handle flat key balance weight fixed axis aluminum cover aluminum ring aluminum ring plastic ring Step rolling bearing stop screw Torsion spring Elliptical plug Through-hole handle gloves...
- Page 21 Exploded List Description Specifications flat washer Φ20*Φ10.5*2 spring washer spring washer spring washer Rivet nut with small countersunk head M8*18 arm pad arm pad cover seat pad swing frame cam rack Deep Groove Ball Bearing Stop Collar...
- Page 23 Weight stack label instructions 1 Wipe front surface of weight stack 2 Peel off back sheet adhesive side from label and make sure that the label remains attached to the application tape 3 Aline the center hole of label with the weight stack center hole 4 Line up the first label to hole on top plate 5 Make sure label is straight and slowly press into place...
