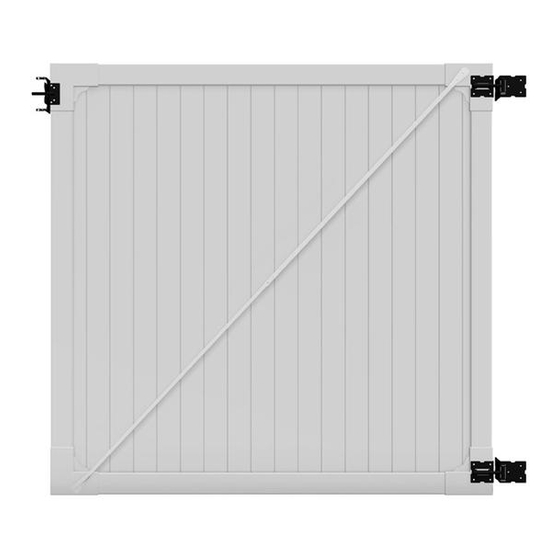

ASSEMBLY INSTRUCTIONS
6' WIDE
PRIVACY
VINYL GATE
(ADJUSTABLE WIDTH)
Approximate assembly time
Want to see a video on how to
assemble this product?
WWW.WAMBAMFENCE.COM
WWW.WAMBAMFENCE.COM
60 MIN
Scan the QR code
ASSEMBLY
INSTRUCTIONS
VG26300
VG26300
1
VER. 032221
Advertisement
Related Manuals for WamBam VG26300
Summary of Contents for WamBam VG26300
- Page 1 VG26300 ASSEMBLY INSTRUCTIONS 6’ WIDE ASSEMBLY INSTRUCTIONS PRIVACY VG26300 VINYL GATE (ADJUSTABLE WIDTH) 60 MIN Approximate assembly time Want to see a video on how to assemble this product? Scan the QR code WWW.WAMBAMFENCE.COM WWW.WAMBAMFENCE.COM VER. 032221...
- Page 2 VG26300 ASSEMBLY INSTRUCTIONS GENERAL IMPORTANT INFORMATION Check the inside of the larger pieces in your box for other materials packed inside. When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching. We recommend an area approximately 5’x 8’ for unobstructed assembling.
- Page 3 VG26300 ASSEMBLY INSTRUCTIONS INFORMATION GENERAL 1. Read over fence instructions first. Your gate and fence will work better together if you first take the time to read and understand your fence. 2. Pre-Assemble the gate frame. Please do not screw the gate frame together until you have temporarily assembled the gate frame.
- Page 4 VG26300 ASSEMBLY INSTRUCTIONS DETAILED PRODUCT DIMENSIONS AND SPECIFICATIONS 7.80 70.00 54.65 3.50 7.80 7.80 56.40 7.80 72.00 72.00 72.00 48.00 2.00 2.00 74.00 79.00 42.00 WWW.WAMBAMFENCE.COM...
- Page 5 VG26300 ASSEMBLY INSTRUCTIONS LAY OUT MATERIALS STEP 1: 2¾” Gate Tension Pin (1) Gate Brace w/ Corner Bracket (4) Metal Post Fasteners (1) Stabilizer (1) Hinge (2) Latch Catch (1) Privacy Board 1 (5) Privacy Board 2 (1) Vertical Stile (2) ½"...
- Page 6 VG26300 ASSEMBLY INSTRUCTIONS INSTALL GATE JIG, POST ANCHORS, AND POSTS STEP 2: STEP 2.1 STEP 2.2 Identify the location of your gate. Dig a trench Identify the location of the Metal Post 60” long x 6” wide x 5½” deep.
- Page 7 VG26300 ASSEMBLY INSTRUCTIONS STEP 2.7 Make sure to fasten the fence panels before attaching the gate. ASSEMBLE THE GATE FRAME BOTTOM AND SIDES STEP 3: STEP 3.1 Insert a Gate Rail until it bottoms out inside Corner Bracket (A). STEP 3.2 STEP 3.3...
- Page 8 VG26300 ASSEMBLY INSTRUCTIONS INSERT PRIVACY BOARDS STEP 4: STEP 4.1 STEP 4.2 Insert the tongue Privacy Boards 1 and groove of Privacy should bottom out Board 2 tightly inside the gate rail. into the vertical stile. ASSEMBLE GATE FRAME TOP STEP 5: STEP 5.1...
- Page 9 VG26300 ASSEMBLY INSTRUCTIONS FASTEN GATE BRACKETS STEP 6: STEP 6.2 STEP 6.1 To ensure your gate is square, the corner to- Fasten together using (16) 2” Black corner measurement must be the same, and Self-Drilling Stainless Steel Screws (O). the width of the gate should be 48”.
- Page 10 VG26300 ASSEMBLY INSTRUCTIONS ASSEMBLE AND FASTEN GATE BRACE STEP 8: STEP 8.1 Assemble Gate Brace by sliding the larger square tube over the smaller square tube. Align holes and install included hardware. STEP 8.2 Double check that the gate is square, and screw with (4) 1¼”...
- Page 11 VG26300 ASSEMBLY INSTRUCTIONS ALIGN GATE AND SECURE HINGES TO POST STEP 9: STEP 9.1 Align gate to horizontal fence rails. Note: Both fence & gate horizontal rail spacing can be adjusted freely to lower heights. STEP 9.2A Fasten hinges to posts as illustrated.
- Page 12 VG26300 ASSEMBLY INSTRUCTIONS STEP 9.2B How to position the screws on the post side of the hinge: Using a ⅛” drill bit, pre-drill the holes for hinge screws as illustrated. Angle your drill slightly as illustrated. Top View Note: Angle your drill to pierce into angled portion of post as illustrated.
- Page 13 VG26300 ASSEMBLY INSTRUCTIONS LEVEL GATE AND ADJUST HINGES STEP 10: STEP 10.1 STEP 10.2 Fasten gate hinges. Check for level, fit and function to latching post. STEP 10.3 STEP 10.4 Hinges can be adjusted moderately to bring Latch is designed for left and right gate into level alignment with post.
- Page 14 VG26300 ASSEMBLY INSTRUCTIONS INSTALL LATCH CATCH STEP 11: STEP 11.1 Align and fasten the Latch Catch to fit and function with the gate finger. Congratulations! You did it! Go grab a beverage of your choice, admire your handiwork, and show us what you got by entering our annual photo contest! WWW.WAMBAMFENCE.COM...
- Page 15 VG26300 ASSEMBLY INSTRUCTIONS INSTALL OVER A ALTERNATIVE APPLICATION: SIDEWALK OR PATH STEP 1.1 STEP 1.2 STEP 1.3 STEP 1.4 Option 1: If the side- walk is less than 52”, use the gate jig as a temporary spacer. STEP 1.5 Sidewalk/path STEP 1.5...
- Page 16 VG26300 ASSEMBLY INSTRUCTIONS INSTALL OVER A ALTERNATIVE APPLICATION: SIDEWALK OR PATH STEP 2.1 STEP 2.2 STEP 2.3 Option 2: If the sidewalk is wider than 52”, use Surface Mounts (purchase separately). Sidewalk/path Use the gate jig to ensure proper spacing.
- Page 17 VG26300 ASSEMBLY INSTRUCTIONS 6935 Reames Rd. Ste. K. Charlotte, NC 28216 hmmm@wambamfence.com 704-892-5222 877-778-5733 WWW.WAMBAMFENCE.COM WWW.WAMBAMFENCE.COM...
