Carriage Adjustment Guide

Tools Required:
• 7 mm Allen wrench
• 17 mm Open end wrench

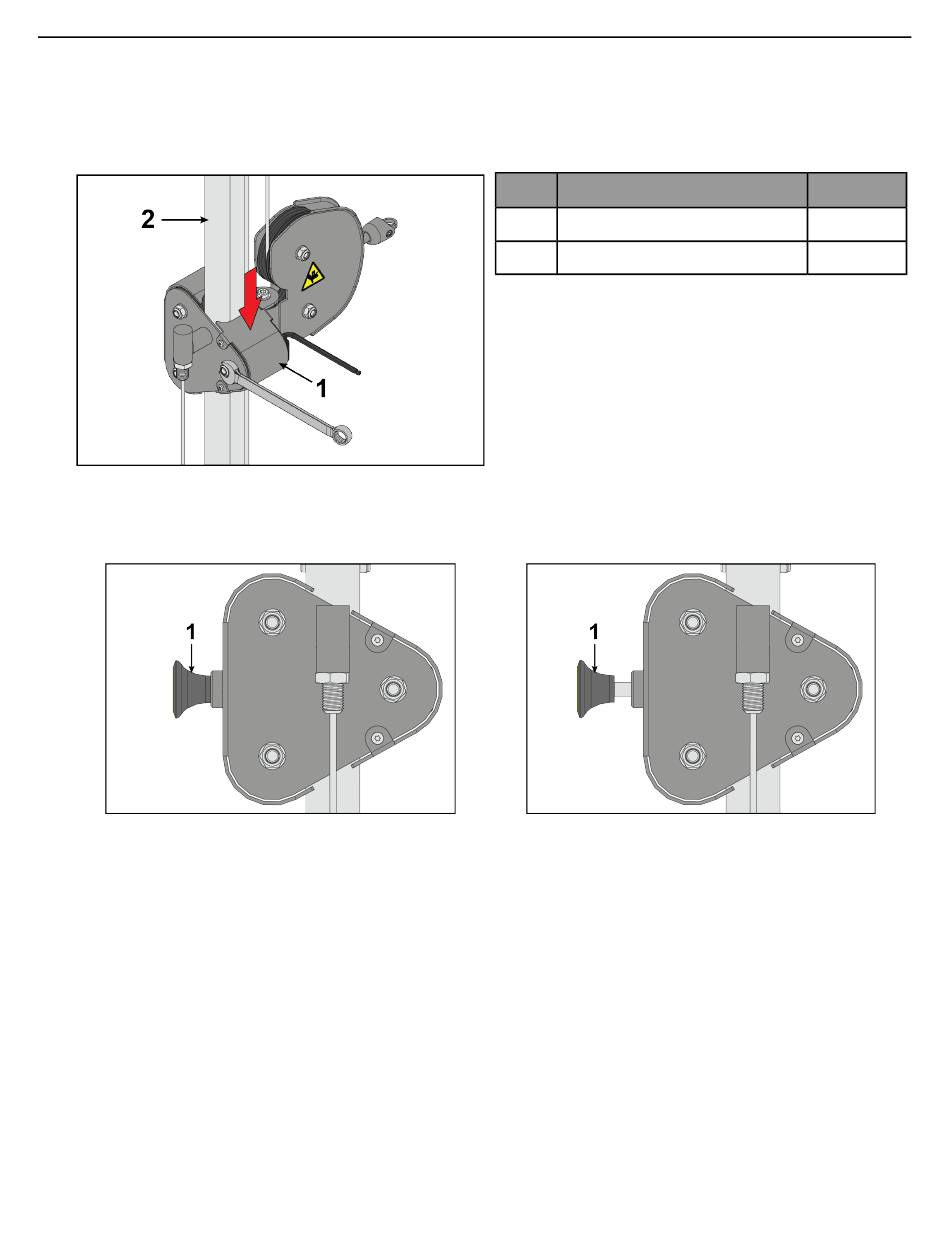

1. While tightening the nut and bolt, apply downward pressure to each side of the rear roller so it travels down
the slotted bolt holes, moving the roller closer to the adjustment tube.
2. Tighten to 25-30 FT-LBS (27.1- 33.9Nm).
3. Ensure carriage adjustment pin (1) is fully engaged before use.
Correct: Adjustment pin fully engaged.
1
2
Incorrect: Adjustment pin not fully engaged.
Page 33 of 54
Description
Rear roller
Adjustment tube
Qty
1
1
