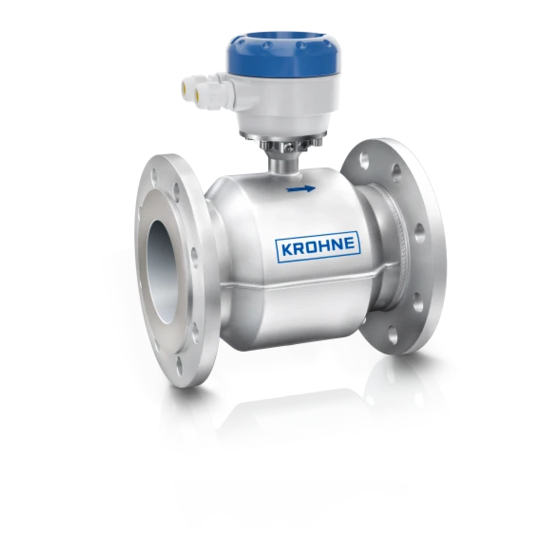

KROHNE WATERFLUX 3000 Handbook

Electromagnetic flow/water meter
Hide thumbs Also See for WATERFLUX 3000:
Table of Contents

Advertisement

Quick Links

WATERFLUX 3000
WATERFLUX 3000
WATERFLUX 3000
WATERFLUX 3000
Electromagnetic flow / water meter
The documentation is only complete when used in combination with the relevant
documentation for the converter.
© KROHNE 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en
Handbook
Handbook
Handbook
Handbook

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WATERFLUX 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KROHNE WATERFLUX 3000

Summary of Contents for KROHNE WATERFLUX 3000

  • Page 1 WATERFLUX 3000 WATERFLUX 3000 Handbook Handbook Handbook Handbook Electromagnetic flow / water meter The documentation is only complete when used in combination with the relevant documentation for the converter. © KROHNE 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...
  • Page 2 All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without the prior written authorisation of KROHNE Messtechnik GmbH. Subject to change without notice. Copyright 2009 by KROHNE Messtechnik GmbH - Ludwig-Krohne-Str. 5 - 47058 Duisburg (Germany) www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 3: Table Of Contents

    4 Electrical connections 4.1 Safety instructions......................18 4.2 Grounding ........................18 4.3 Signal cable ........................19 4.4 Connection of signal cable ..................... 19 5 Start-up 5.1 Start up ........................... 20 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...
  • Page 4 6.3.2 Form (for copying) to accompany a returned device............23 6.4 Disposal .......................... 23 7 Technical data 7.1 Technical data......................... 24 7.2 Measuring accuracy ....................... 28 7.3 Vacuum load ........................29 7.4 Dimensions and weights ....................29 8 Notes www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 5: Safety Instructions

    WATERFLUX 3000 1.1 Intended use This WATERFLUX 3000 water meter has been designed for measuring potable water and water with suspended particles. It can be combined with an IFC 070 signal converter or with a IFC 100 / 300 converter.

  • Page 6: Product Liability And Warranty

    This document is provided to help you establish operating conditions, which will permit safe and efficient use of this device. Special considerations and precautions are also described in the document, which appear in the form of underneath icons. www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 7: Warnings And Symbols Used

    In general, devices from the manufacturer may only be installed, commissioned, operated and maintained by properly trained and authorized personnel. This document is provided to help you establish operating conditions, which will permit safe and efficient use of this device. 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...

  • Page 8: Device Description

    2 remote version 2.3 Scope of delivery Figure 2-2: Scope of delivery 1 Ordered flowmeter 2 Quick Start 3 Factory calibration report 4 CD-ROM with product documentation 5 Cable (remote versions only) www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 9: Nameplate

    Check the correct supply voltage printed on the nameplate. Figure 2-3: Example for nameplate 1 Manufacturer 2 Voltage information 3 Electronic Revision number 4 Material of wetted parts 5 Meter constant 6 Serial number 7 Device type 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...

  • Page 10: Installation

    • Allen key (4 mm) • Small screwdriver • Wrench for cable glands • Wrench for wall mounting bracket (remote version only) • Torque wrench for installing flowmeter in pipeline www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 11: Installation Requirements

    2 ≥ 1 DN for DN25...300 ≥ 2 DN for DN350...600 3.5.2 Mounting position Figure 3-3: Mounting position 3.5.3 Flange deviation CAUTION! Max. permissible deviation of pipe flange faces: ≤ 0.5 mm / 0.02" 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...

  • Page 12: T-Section

    INSTALLATION WATERFLUX 3000 Figure 3-4: Flange deviation 3.5.4 T-section Figure 3-5: Distance after T-sections 1 DN25...300: ≥ 3 DN; DN350...600: ≥ 10 DN 3.5.5 Vibration Figure 3-6: Avoid vibrations www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 13: Magnetic Field

    INSTALLATION WATERFLUX 3000 3.5.6 Magnetic field Figure 3-7: Avoid magnetic fields 3.5.7 Bends Figure 3-8: Installation in bending pipes Figure 3-9: Installation in bending pipes 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...

  • Page 14: Open Discharge

    Figure 3-10: Installation before an open discharge 3.5.9 Control valve Figure 3-11: Installation before control valve 3.5.10 Air venting Figure 3-12: Air venting 1 ≥ 5 m 2 Air ventilation point www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 15: Pump

    INSTALLATION WATERFLUX 3000 3.5.11 Pump Figure 3-13: Installation after pump 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...

  • Page 16: Installation Of Sensor

    PN 10 16 x M 20 PN 10 16 x M 24 PN 10 20 x M 24 PN 10 20 x M 24 PN 10 20 x M 27 www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...
  • Page 17 • Step 1: approx. 50% of max. torque • Step 2: approx. 80% of max. torque • Step 3: 100% of max. torque given in tables before Figure 3-14: Maximum torque 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...

  • Page 18: Electrical Connections

    Check the correct supply voltage printed on the nameplate. 4.2 Grounding Figure 4-1: Grounding INFORMATION! DN25..300: the flow sensor is equipped with a reference electrode. Grounding rings are not • necessary! DN350...600: Apply grounding rings if required. • www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 19: Signal Cable

    4.4 Connection of signal cable INFORMATION! The signal cable is only used with remote versions. The standard KROHNE WSC-cable includes both electrode and field current leads, the optional type A / B cable is only used for the electrodes. In that case, the field current cable is no part of the supply.

  • Page 20: Start-Up

    START-UP WATERFLUX 3000 5.1 Start up INFORMATION! Please follow the instructions in the documentation of the converter. www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 21: Service

    For more precise information, please contact your local representative. INFORMATION! Before calling the customer support, please collect the information which are listed in the support information form (see appendix) and have it at hand. 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...

  • Page 22: Returning The Device To The Manufacturer

    • such dangerous substances, to enclose a certificate with the device confirming that is safe to handle and stating the • product used. www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 23: Form (For Copying) To Accompany A Returned Device

    We hereby confirm that there is no risk to persons or the environment through any residual media contained in the device when it is returned. Date: Signature: Stamp: 6.4 Disposal CAUTION! Disposal must be carried out in accordance with legislation applicable in your country. 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...

  • Page 24: Technical Data

    Medium: water Temperature: 20°C / 68°F Inlet section: 5 DN Operating pressure: 1 bar / 14.5 psig Maximum measuring error For detailed information on the measuring accuracy, see chapter "Measuring accuracy". www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...
  • Page 25 Inlet run ≥ 5 DN for DN350...600 ≥ 1 DN for DN25...300 Outlet run ≥ 2 DN for DN350...600 Dimensions and weights For detailed information see chapter "Dimensions and weights". 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...
  • Page 26 For full details, including: power supply, power consumption etc., see technical data for the relevant converter. For full details of I/O options, including data streams and protocols, see technical data for the relevant converter. www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...
  • Page 27 DVGW, KTW, NSF, WRc pending Custody transfer Standard: without Option (with IFC 070 only): Europe: MI-001 for DN50...200, pending for other diameters Worldwide: OIML R-49 for DN50...200, pending for other diameters 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...

  • Page 28: Measuring Accuracy

    DN25...300: If the inlet or outlet section is shorter than respectively 3 DN / 1 DN, the above curve should be raised with 0.2%. DN350...600: If the inlet or outlet section is shorter than respectively 5 DN / 2 DN, the above curve should be raised with 0.5%. www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 29: Vacuum Load

    Remote version, sensor Remote version, sensor a = 77 mm / 3.1" b = 139 mm / 5.5" c = 106 mm / 4.2" Total height = H + a 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...
  • Page 30 9.84 10.55 10.00 11.81 11.69 11.00 13.78 14.25 13.50 15.75 16.30 16.00 19.69 18.78 19.00 27.56 20.67 21.00 31.50 22.95 23.50 31.50 24.72 25.00 31.50 26.97 27.50 31.50 31.38 32.00 www.krohne.com 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en...

  • Page 31: Notes

    NOTES WATERFLUX 3000 11/2009 - 7311232200 - HB WATERFLUX 3000 R02 en www.krohne.com...
  • Page 32 Measuring systems for the oil and gas industry • Measuring systems for sea-going tankers Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 D-47058 Duisburg (Germany) Tel.:+49 (0)203 301 0 Fax:+49 (0)203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
